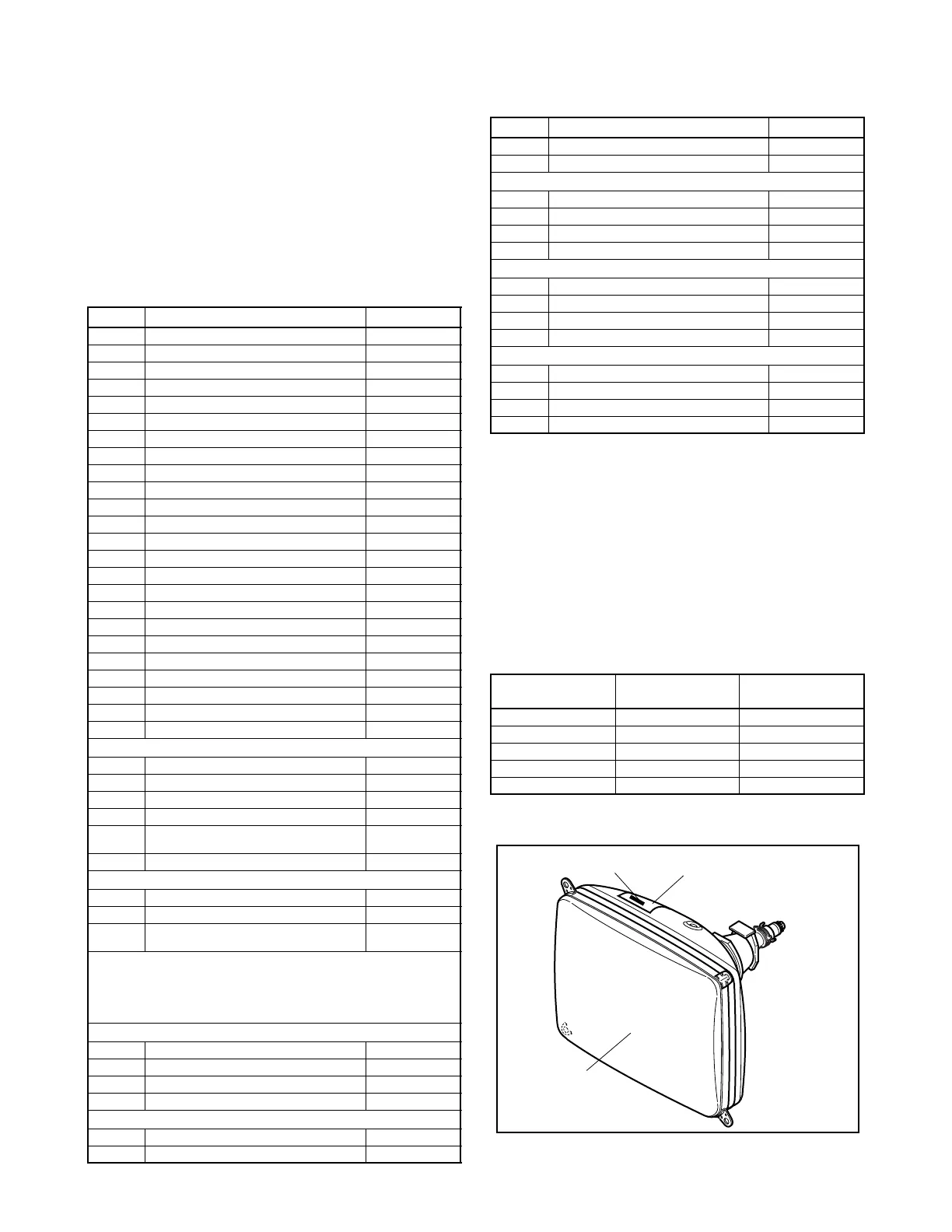

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.

Before replacing any of these components, read

carefully the product safety notice in this service

manual. Don't degrade the safety of the product

through improper servicing.

NOTE: Parts that are not assigned part numbers

(---------) are not available.

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to

Electrical Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT

Warning Label which is located on the CRT. Then See

the Table 1 for V501 and L551 combination chart.

Please refer this CRT, Deflection Yoke combination

chart for parts order.

CRT Warning Label Location

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T8202UC 1EM220902

A1-1 FRONT CABINET T8202UC 1EM220901

A1-2 CONTROL PLATE T8202UC 1EM321586

A1-3 BRAND PLATE T8201UB 1EM422528

A1-5 TRAY SPRING TD707UH 0EM408552

A1-6 CLOTH(B) L5201U0 15X10X1.0T 0EM400076

A2 REAR CABINET T8202UC 1EM220903

A3# RATING LABEL T8203CD ----------

A5 TRAY PANEL T8201UB 1EM220782

1B1 DVD MECHA X7 SINGLE N79U0KVM N79U0KVM

B1 SPRING TENSION B0080B0 EM40808 26WH006

B2 M5 CRT SCREW(B) B4000UA 0VM403923A

B6 CLOTH(10X30XT0.5) B5900UA 0EM404486

CLN551 WIRE ASSEMBLY CRT GND 390MM WX1T8200-006

DG601# DEGAUSSING COIL F-019 LLBH00ZTM019

L1 SCREW P-TIGHT 4X18 BIND HEAD + GBJP4180

L2 SCREW TAPPING M4X14 DBT14140

L7 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

SP1802 SPEAKER S08F02B DSD0808XQ010

TB1 TRAY CHASSIS T8200UA 1EM020569

TB12 LASER CAUTION LABEL T8200UA ----------

TB19# 13V CHASSIS NO. LABEL TJ T8202UC ----------

TL1 SCREW P-TIGHT M3*10 WASHERHEAD+ GCJP3100

TL4 SCREW P-TIGHT 3X16 BIND HEAD + GBJP3160

PACKING

S1 CARTON T8203CD 1EM423473

S2 STYROFOAM TOP ASSEMBLY T8201UB 1EM422532

S3 STYROFOAM BOTTOM ASSEMBLY T8201UB 1EM422533

S4 SERIAL NO.LABEL T8203CD ----------

S5 LABEL EAS(H3761UD) MAKER

NO.ZLLFNSLE1

----------

S6 SET SHEET B5506UG 800X1500 0EM402369

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2# OWNERS MANUAL T8203CD 1EMN21877

X3 REMOTE CONTROL NF102UD 144/ECNX701/

NF102UD

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS

ALSO HAS MATCHING COMBINATION WITH L551.

PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.

PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

L551# DEFLECTION YOKE LLBY00ZSY005 LLBY00ZSY005

V501# CRT A34AGT13X TCRT190CP036

V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
