Magnavox CMWC13D6 Service Manual

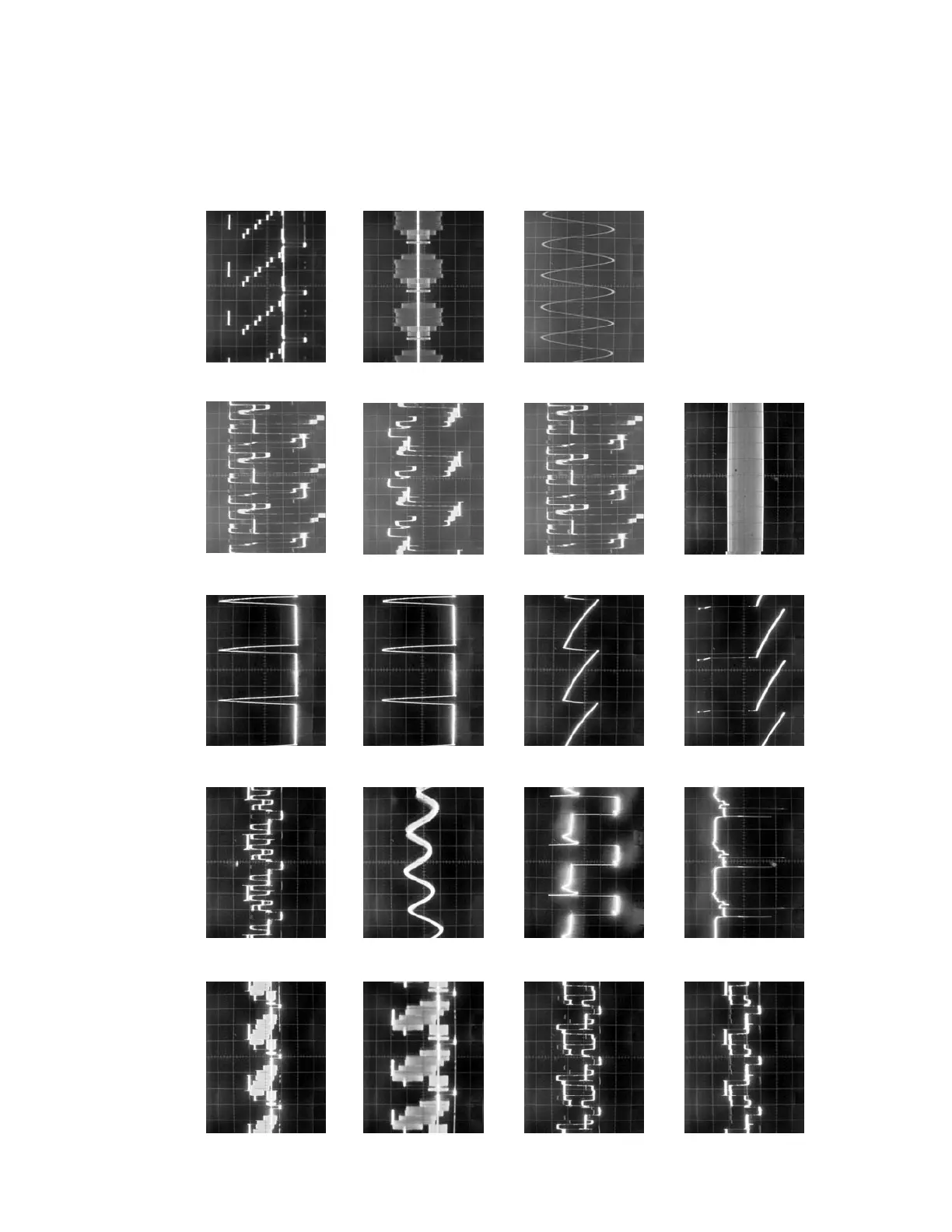

WAVEFORMS
T8200WF
1-11-1
1DIV: 0.5V 20µs
IC1001 Pin 1
WF1
1DIV: 0.5V 20µs
IC1201 Pin 14
WF2 1DIV: 0.5V 5µs
IC1001 Pin 9
WF6
1DIV: 200V 20µs CN1571 Pin 1
WF9
1DIV: 5V 20µs
CL1501 Pin 1
WF10
1DIV: 1V 5ms IC1551 Pin 7
WF11
1DIV: 10V 5ms CN1571 Pin 4
WF12
1DIV: 20V 20µs Q2521 Collector
WF14 1DIV: 0.2V 20µs
CN1102 Pin 7
WF18
1DIV: 2V 20µs
Q2511 Base
WF3
1DIV: 2V 20µs
Q2521 Base
WF4
1DIV: 2V 20µs
Q2531 Base
WF5
1DIV: 10V 20µs
Q1572 Collector
WF7
1DIV: 5V 20µs
Q1571 Base
WF8
1DIV: 20V 20µs Q2531 Collector
WF13 1DIV: 0.2V 20µs
CN1102 Pin 6
WF17
1DIV: 20V 20µs Q2511 Collector
WF15
1DIV: 1V 0.5ms CN1102 Pin 10
WF19
1DIV: 0.1V 20µs
TU1001 Pin 5
WF16
Input: NTSC Color Bar Signal (with 1kHz Audio Signal) --- WF1~WF16 DVD Video (Power on (Stop) MODE) --- WF17, WF18 CD (1KHz Play) --- WF19, WF20 INITIAL POSITION: Unplug unit from AC outlet for at least five minutes,
reconnect to AC outlet and then turn power on. (Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)
