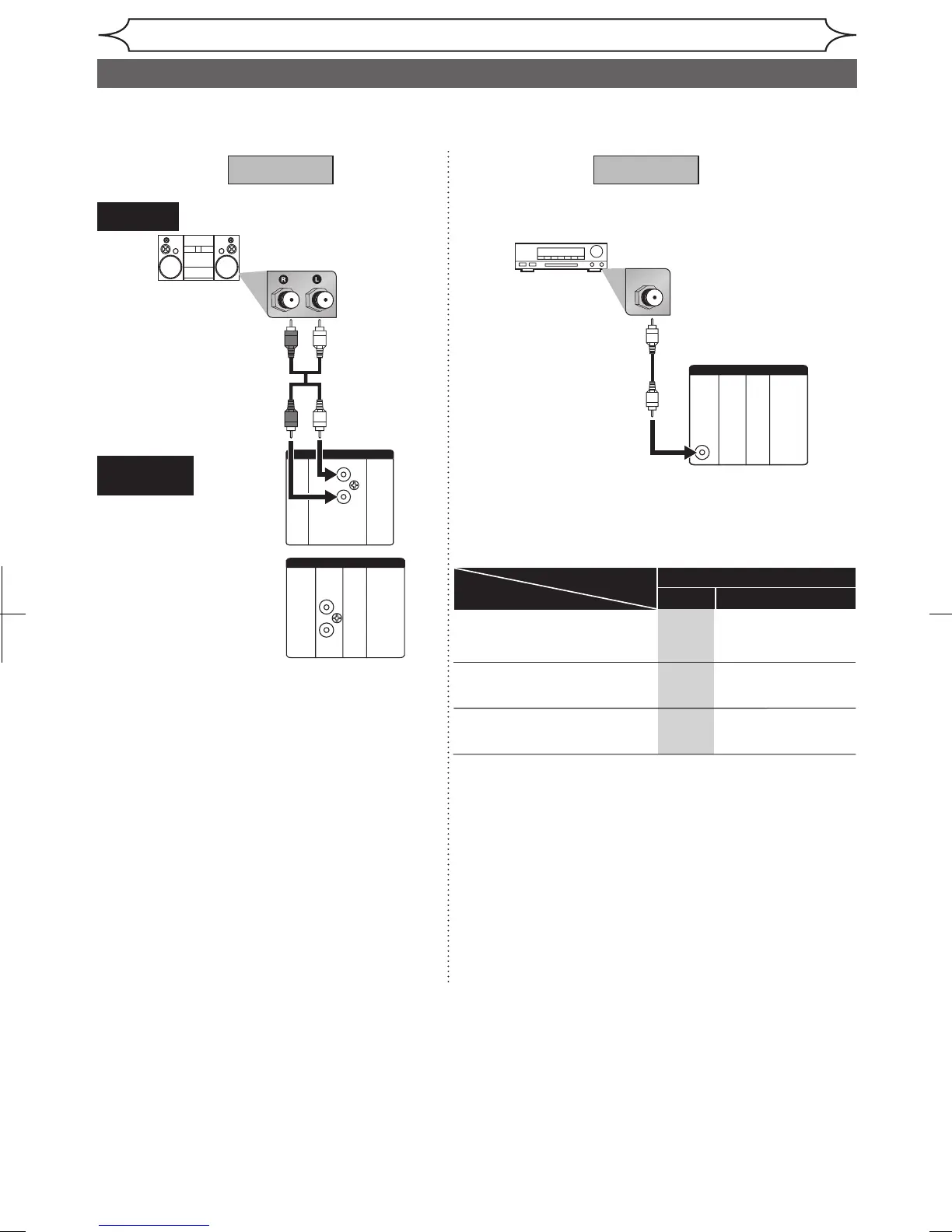

Connection to an Audio System
Connections
• When you change the connections, all devices should be turned off.
• Refer to the operation manual accompanying external devices for more information.
IN - AUDIO - OUT
L
R
DVD/VCR
or
AUDIO
OUT
L
R
DVD
Stereo system
DIGITAL
AUDIO OUT
COAXIAL
DVD
COAXIAL
AUDIO
Method 1
Analog audio
input jacks
Digital audio
input jack
AUDIO OUT
DIGITAL
AUDIO OUT
Method 2
Audio cable
(supplied)
Audio Coaxial Digital cable
(commercially available)
Dolby Digital decoder,
MD deck or DAT deck
Note
• By connecting this unit to a Multi-channel Dolby Digital
decoder, you can enjoy high-quality Dolby Digital Multi-
channel surround sound as heard in the movie theaters.
• The audio source on a disc in a Dolby Digital Multi-
channel surround format cannot be recorded as digital
sound by an MD or DAT deck.
• Playing back a DVD using incorrect settings may
generate noise distortion and may also damage the
speakers.
* To complete these settings, refer to pages 69-70.
Note
• Playing back a DVD using incorrect settings
may generate noise distortion and may also
damage the speakers.
This unit
<REAR PANEL>
If output is Dolby Digital
encoded audio, connect to a
Dolby Digital decoder.
Unless connected to a Dolby
Digital decoder.
Connecting to an MD deck or
DAT deck.
-
-
-
STREAM
PCM
PCM
Setup>Playback>Disc Audio>Digital Out>
PCM
Dolby Digital
Setting
Connection
