NOTE:
•
Before plugging the antenna into the ANT. jack of the unit, check that the pin is
not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the
ANT. jack of the unit.
CABLE WITH CONVERTER/DESCRAM-
BLER BOX OR SATELLITE BOX
If your cable service supplies you with a converter
box or if you use a satellite system, you can use the
basic connection shown above.
Channel selection must be made with the converter
box or satellite box. This means that channels cannot
be changed using the remote control of this unit.
PREPARATION FOR USE
VHF/UHF COMBINED ANTENNA
A VHF UHF 75 ohm combination antenna can be
connected to ANT. jack of the unit.
VHF/UHF SEPARATE ANTENNAS
In some areas it will be necessary to use an outdoor
antenna.
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to the unit without a converter box.
VHF/UHF
Combiner
Flat twin-
lead cable
From Cable System
75-ohm
Coaxial Cable
CATV Box or
Satellite Box *
From Cable System
or Satellite Antenna
[Fig. 4]

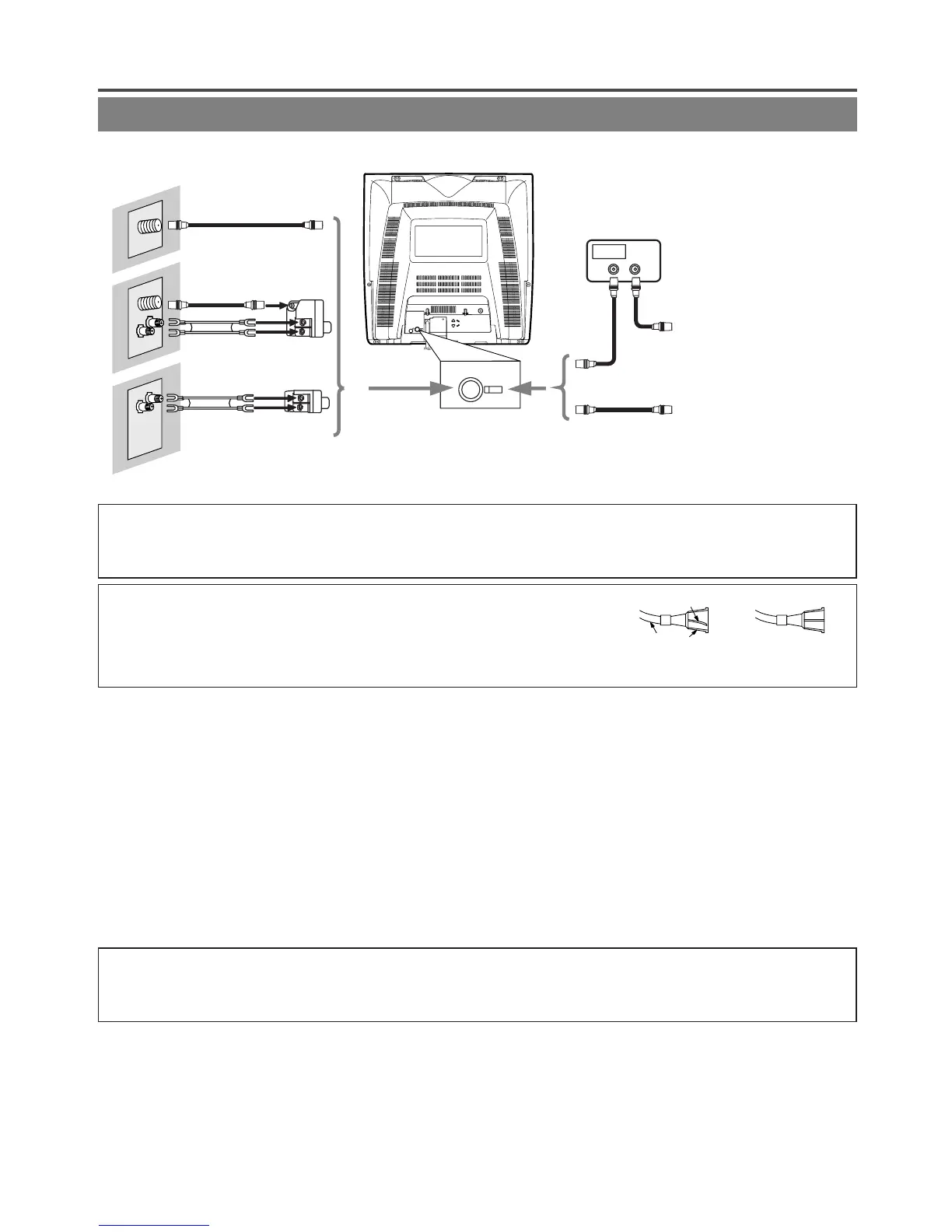

ANTENNA/CABLE CONNECTION
OR
OR
Bent pin
Cable
Plug
(Needs to be
straightened)
(Straight pin)
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.
[ANTENNA CONNECTION]
[CATV/SATELLITE CONNECTION]
*Some cable TV systems use scrambled signals and
require a special converter to receive these channels.
Consult your local cable company.
Adaptor
75-ohm
Coaxial Cable
NOTE:
•
For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. jack
before moving the unit.
Cables used here are commercially available.
OR
