- 8 - EN

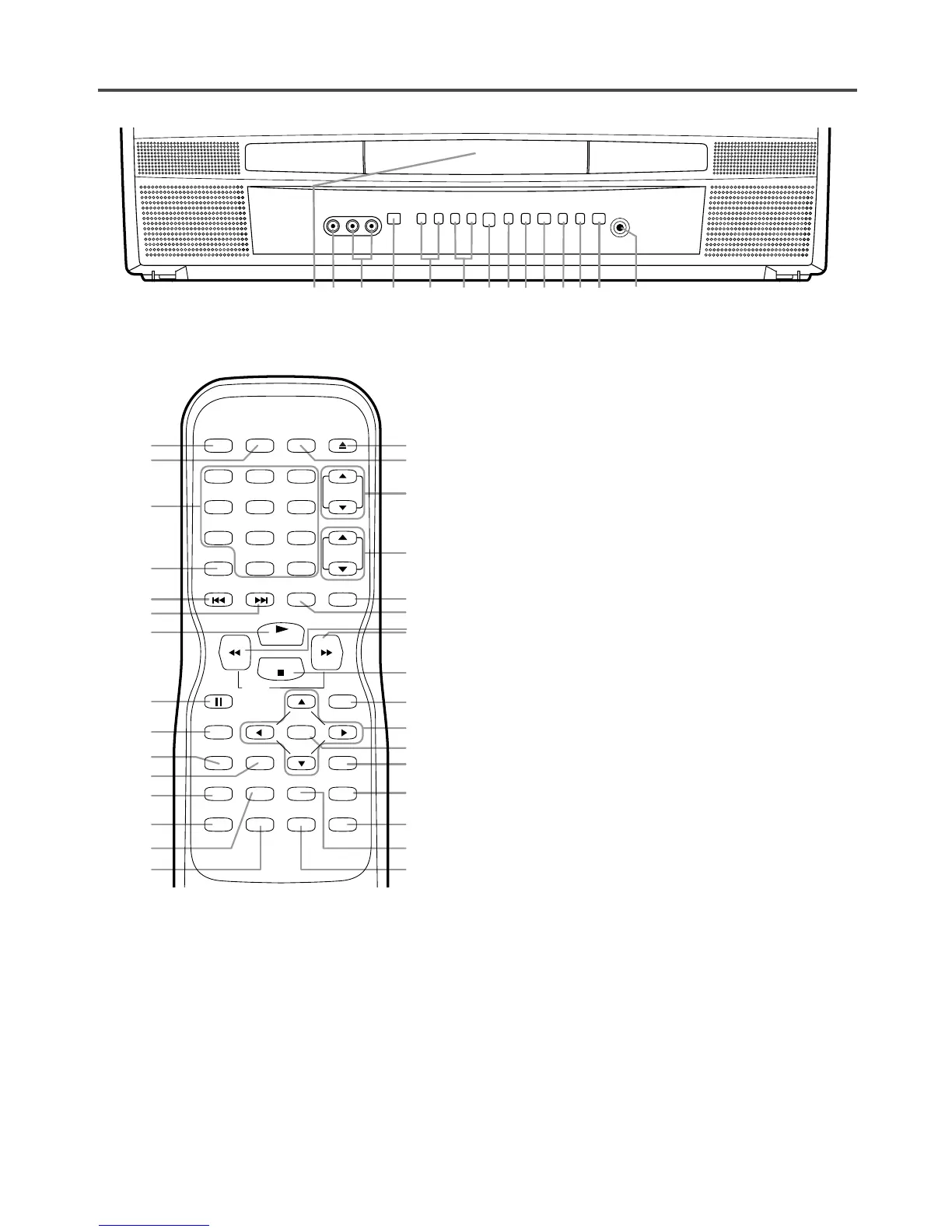

OPERATING CONTROLS AND FUNCTIONS
- REMOTE CONTROL -
[Fig. 2]
- FRONT PANEL - [Fig.1]
25
26
16
17
9
11
12
18
19
21
22
24
23
20
10
27
28
29
32
35
34
5
6
13
36
33
8
30
31
4
15
SLOW
PLAY
STOP
ENTER
PAUSE
DISC
MENU
RETURNTITLESETUP
REPEAT
A
-
B
REPEAT
SEARCH MODE
CLEAR
MODE
ANGLESUBTITLEAUDIO
DISPLAY
PREV NEXT
SELECT
STANDBY-ON
OPEN/CLOSE
CH.
VOL.
MUTE
ZOOM
SLEEP
123
456
789
0 +10
+100
1.Disc loading tray
2.VIDEO input Jack
Connect to the video output jack of a video camera or
VCR.
3.AUDIO L/R input Jacks
Connect to the audio output jacks of a video camera or
VCR.
4.
yy
STANDBY-ON Button
[P.13]
Hit to turn the power on and off.
5.VOLUME (VOL.) K / L Buttons
[P.13]
Press to control the volume level for the DVD and TV.
6.CHANNEL (CH.) K / L Buttons
[P.13]
Press to select memorized channels.
7.Remote sensor window
8.STOP C Button
[P.20]
Stops operation of the disc.
9.PREV H Button
[P.22]
Hit once to move to the previous chapter or track.
SEARCH
h
Button (Front panel) [P.21]
Hit and hold to change reverse playback speed.
10. PLAY B Button
[P.20]
Starts playback of the disc.
11. NEXT G Button
[P.22]
Hit once to move to the next chapter or track.
SEARCH
g
Button (Front panel) [P.21]
Hit and hold to change forward playback speed.
12. PAUSE F Button
[P.21]
Pauses the current disc operation.
13. OPEN/CLOSE A Button
[P.20]
Hit to insert a disc into or remove it from the
tray.
14. HEADPHONE Jack
To connect headphone (not supplied) for personal
listening.
15. PICTURE Button
[P.13]
Hit to adjust the picture.
16. Number Buttons
TV Mode:
[P.13]
Press two digits to directly access the desired
channel.
Remember to hit [0] before a single digit channel.
+100 Button–
Hit to select cable channels which are higher
than 99.
DVD Mode:
[P.22]
Hit to enter the desired number.
+10 Button–
Hit to enter the desired numbers which are higher
than 9.
17. SLEEP Button
[P.14]
Sets the Sleep Timer.
LKLK C H
B
A
G F
E
-
SEARCH
-
D
VOLUME
CHANNEL PREV NEXT
PLAY
PAUSE
STOP OPEN/
CLOSE
VIDEO
L
AUDIO
R
HEADPHONE
ySTANDBY-ON
12 4 56 107 9831211913
