REPARATION FOR USE
ANTENNA/CABLE CONNECTIONS
NOTE:
Before plugging the antenna into
the ANT. jack of the unit, check
that the pin is not bent. If it is bent,
straighten the pin as illustrated,
then plug the pin into the ANT. jack
of the unit.
Bent pin
Cable
Plug
(Needs to be
straightened)
(Straight pin)
For your safety and to
avoid damages to the unit,
unplug the antenna cable
from the ANT. jack before
moving the unit.

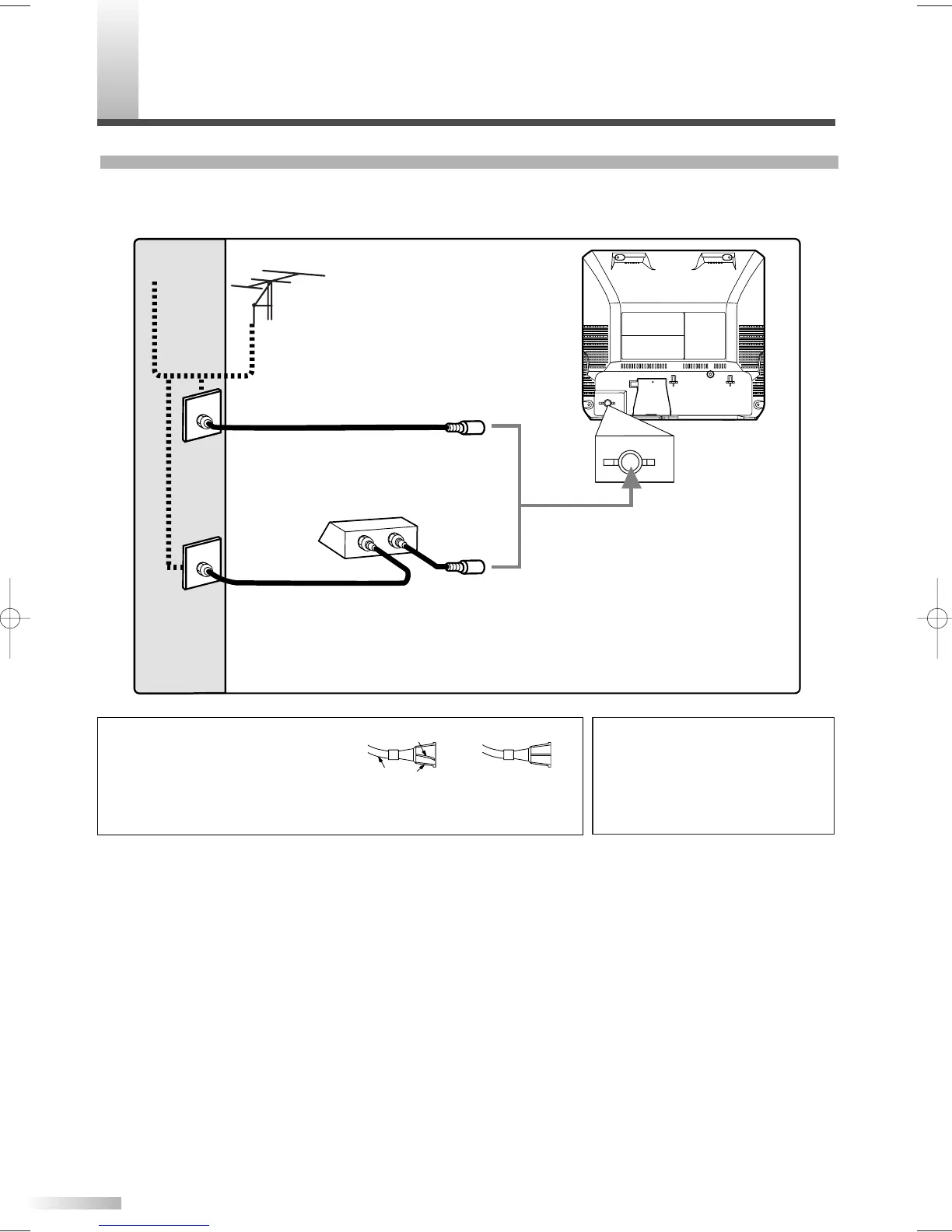

Plug the incoming cable into the ANT. jack on the rear of the unit.
If your cable service supplies you with a converter box or if you use a satellite system, connect the box with
this unit as shown below.
Rear of the unit
*NOTE
(DO NOT DISCONNECT FROM BOX)
Some cable TV systems use scrambled
signals and require a special converter to
receive these channels. Consult your local
cable company.
OR
Incoming cable from home
Antenna / Cable Company
(No Cable Box)
Incoming cable from Cable Company
or Satellite Antenna
Cable Box or Satellite Box*
To Next Page
