UNIVERSAL SYMBOLS

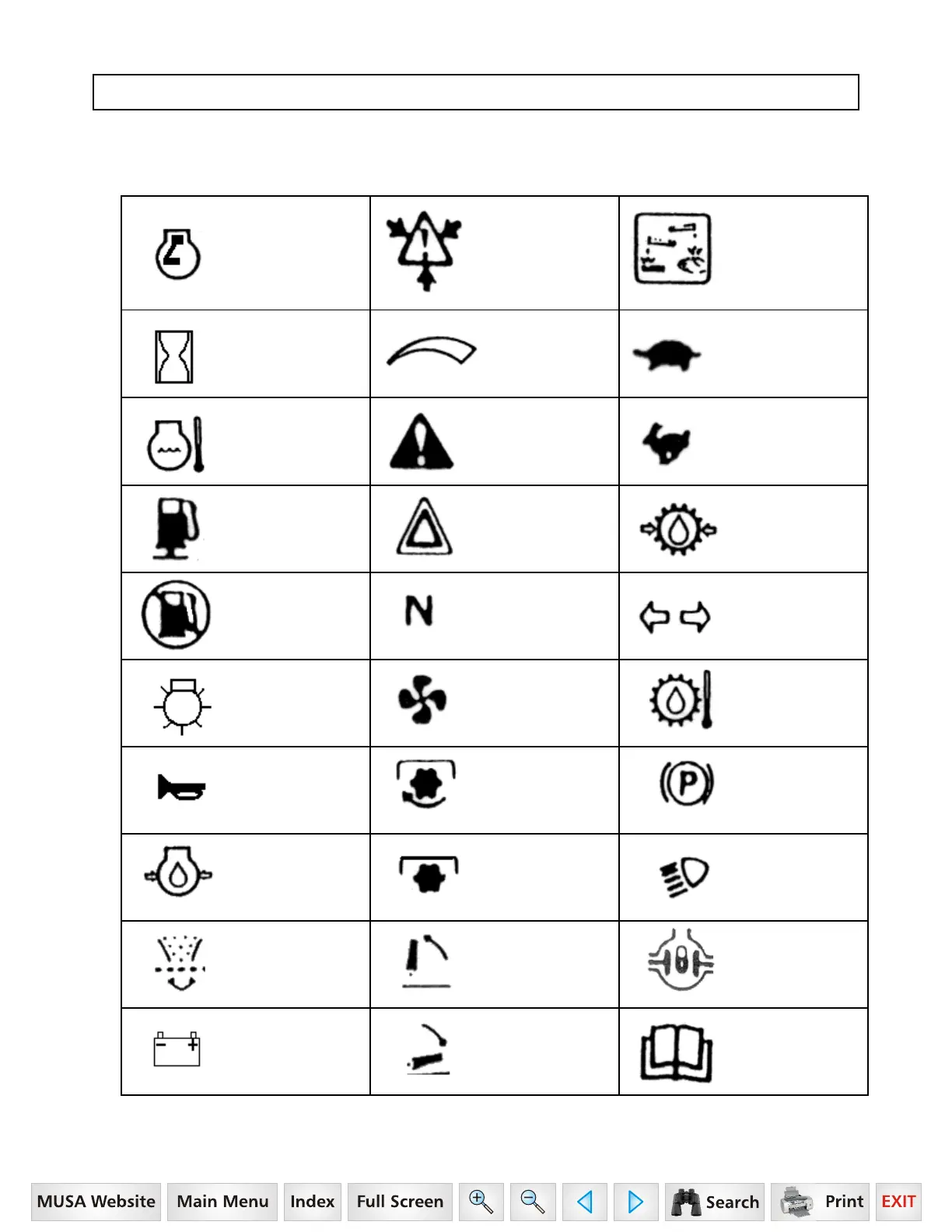

Some of the universal symbols have been shown below with an indication of their meaning
See
operator’s
manual
Lift arm/lowerBattery charge
”Hare” fast or
maximum
setting
Warning
Engine
coolant
temperature
Differential lockLift arm/raiseAir filter
parking brake
Power take
off engagedHorn
Turn signalNeutral
Engine
Stop
control
”Tortoise”
Slow or
minimum Setting
Continuous
variable
Hours,
recorded
Work lamps
Power
take off
Disengaged
Engine oil
pressure
Transmission
oil temperatureFanLights
Transmission
oil pressure
Hazard
warningFuel level
Corrosive
substance
Pressured-
open slowly
Engine speed
rev/minX100)
