38
► BRAKE PEDAL
Right and left brake pedals are provided to assist in turning the tractor in the field.
Caution
A connecting latch is provided to connect the right and left brake pedals for
high speed or road use.
In the interest of safety always use it on the road or at high speed as using one
side only can cause rollovers.
When servicing the tractor ensure that the adjustment on both sides in the
same.

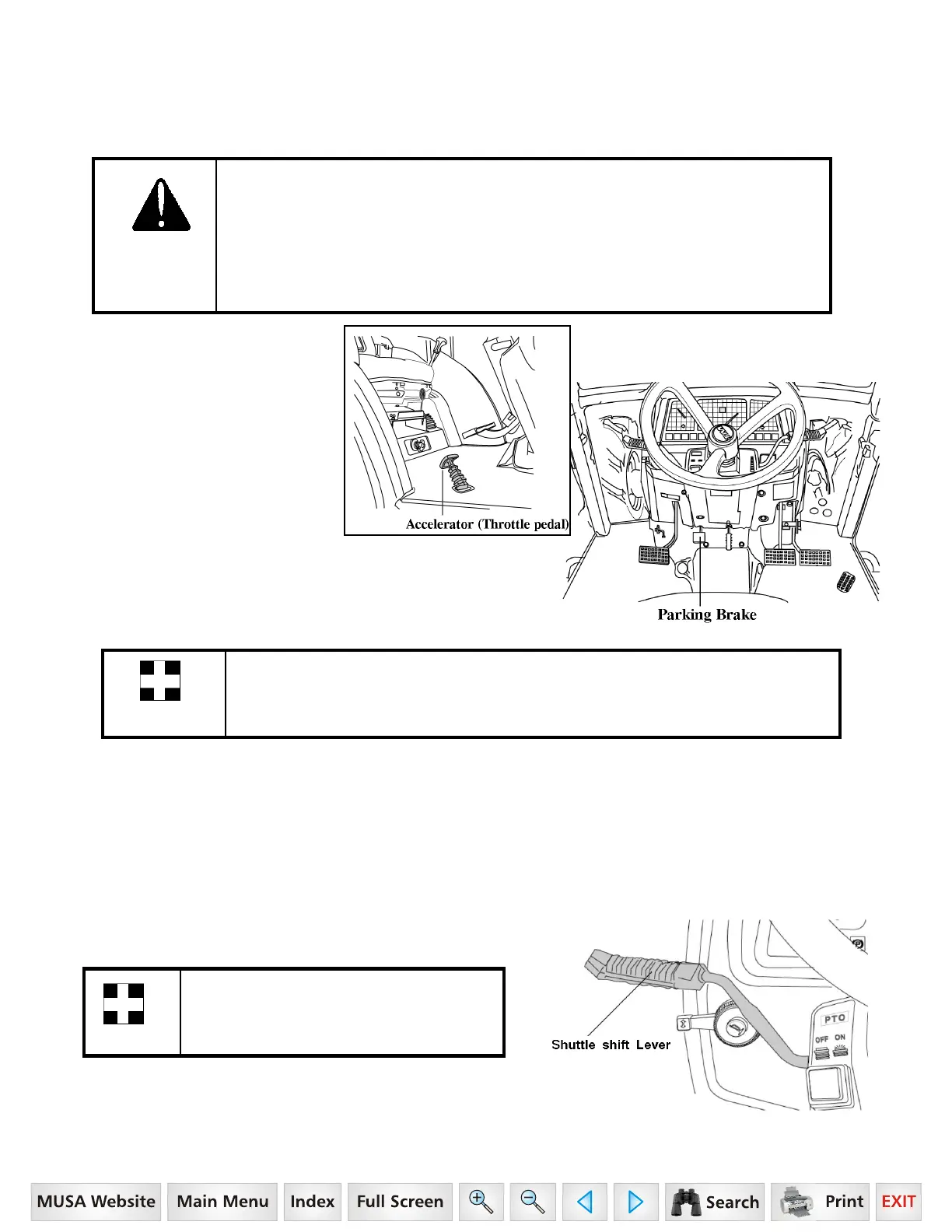

► Foot operated accelerator
This pedal can override a fixed
hand throttle setting
► Park brake
Connect the brake pedals , push them down while
pulling the park brake up to engage. Press the parking
brake pedal and push the Brake pedal to release.
Traveling with the park brake on will damage the brakes.
important
►Shuttle shift lever
This control allows shifting from forward to reverse & reverse to forward. When stationary set the
lever to N for neutral
① Push the lever away from the driver engages forward.
② Pulling the lever towards the driver engages reverse.
Press clutch pedal fully before
operating shuttle shift lever.
important
