10.4 Air Distribution Control

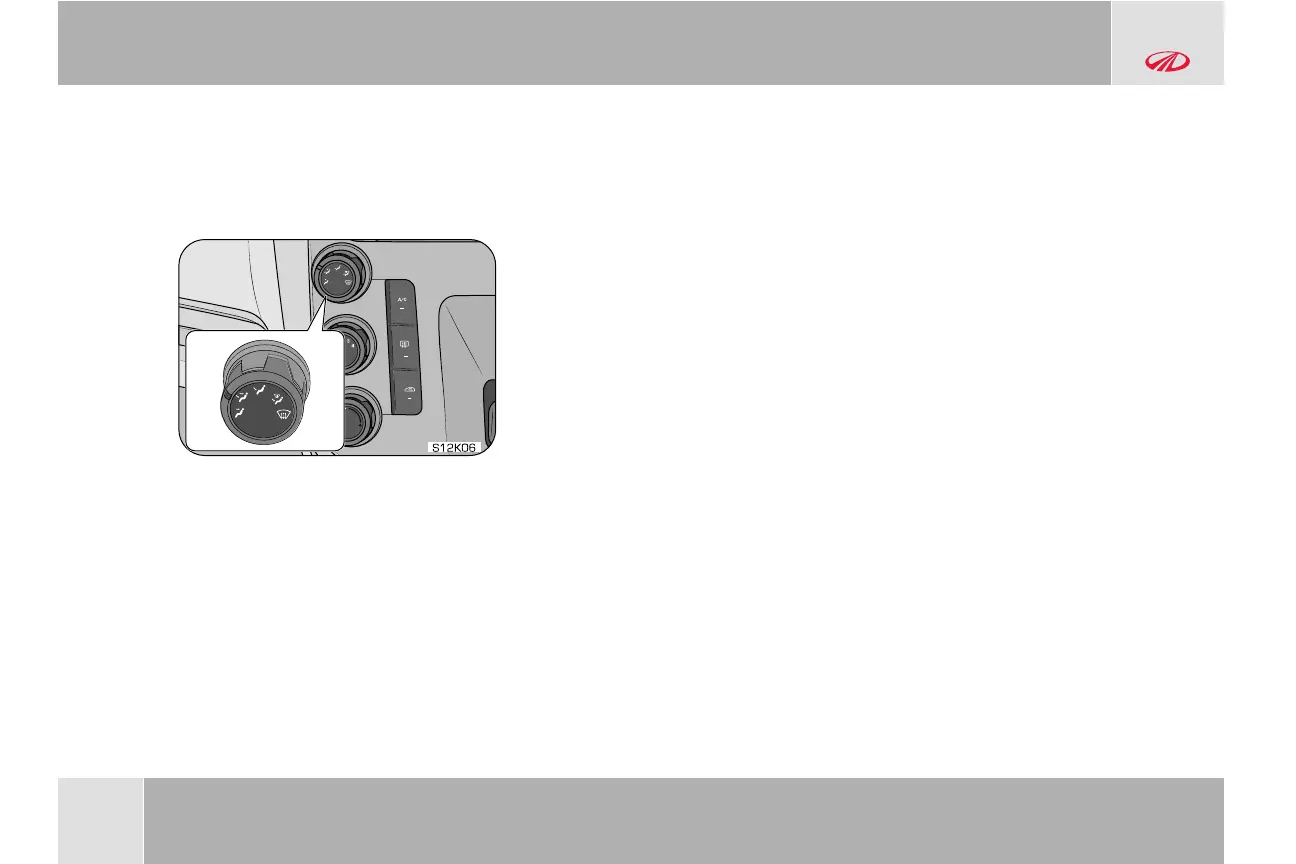

The air flowing out of various vents can be controlled by the air
distribution control knob/button.
Following are the five different distribution modes to choose from:
A
/
C
0
1
2
3
4
S12K06
• Face Mode — air is discharged from the center vents and side
vents. This mode is most suitable for directing air flow towards
the face of the passengers
• Face-Foot Mode — air is discharged from the center vents, side
vents and foot vents. This mode is most suitable for directing air
flow towards both the face and feet of passengers at the same
time
• Foot Mode — air is discharged from the two foot vents . This
mode is most suitable for directing air flow towards the feet of
passengers seated on front seats. When it is in this mode,
automatically the air intake will be in fresh air. This is because
normally the foot mode is used with heater. At the same time, if
the customer desires he can override manually and bring it to
recirculation
• Foot-Defrost Mode — air is discharged from the foot vents, side
defrost vents and windshield defrost vents. This mode is most
suitable for directing air flow towards the feet of passengers
while defrosting or demisting/defogging. When it is in this mode,
automatically the air intake will be in fresh air. This is because
normally the foot mode is used with heater. At the same time, if
the customer desires he can override manually and bring it to
recirculation
• Defrost Mode — air is discharged from the side defrost vents
and windshield defrost vents. This mode is most suitable for
directing air flow towards the front windshield to ensure
defrosting or demisting / defogging. When it is in this mode,
automatically the air intake will be in fresh air. This is because
normally the foot mode is used with heater. At the same time, if
the customer desires he can override manually and bring it to
recirculation
