Mahindra 3016 - INSTRUMENTS AND INDICATORS; GAUGES AND METERS

INSTRUMENT/CONTROLS
23

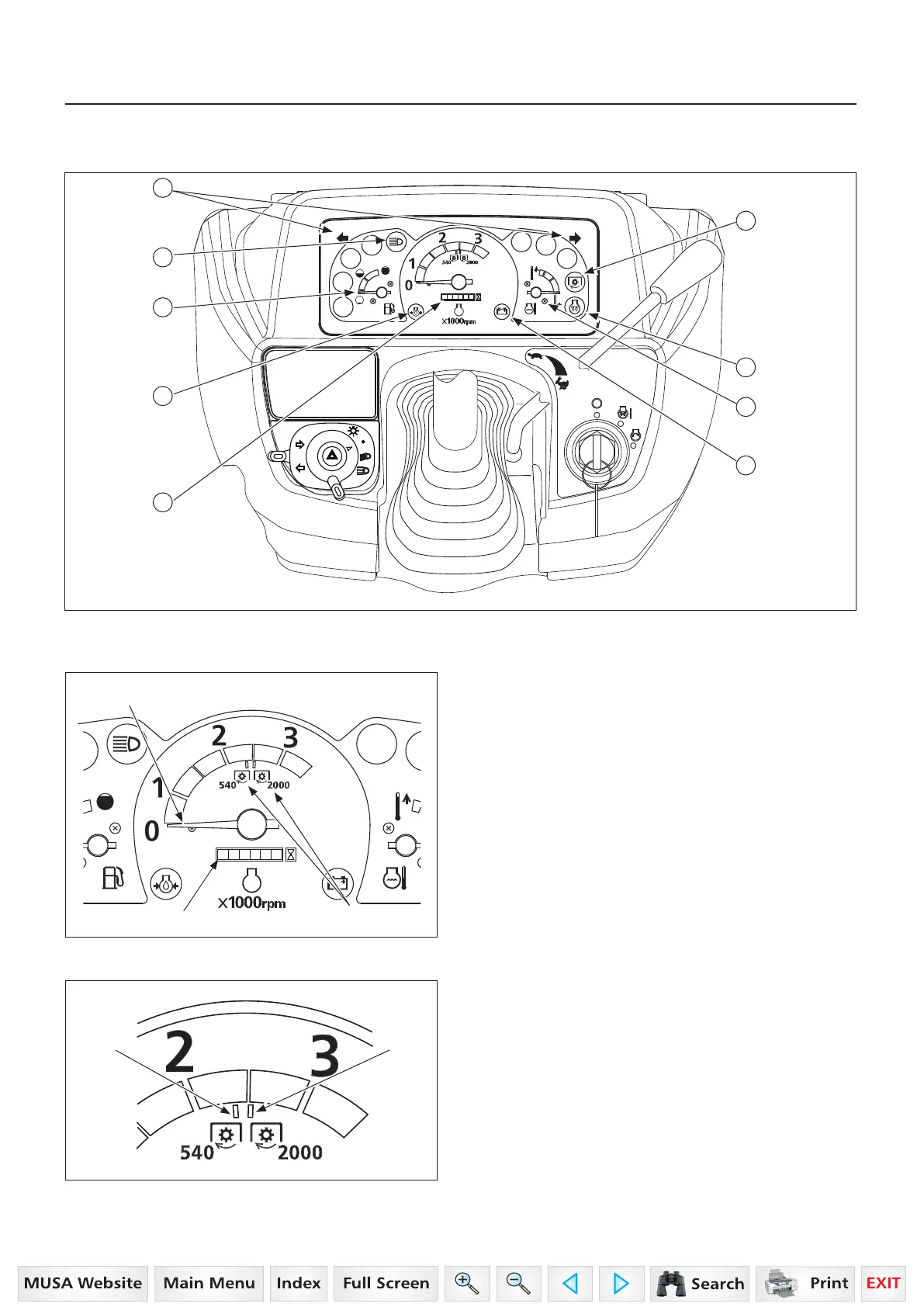

●The tachometer shows the engine speed in
revolutions per minute (RPM). A symbol on the
face indicates the correct Power Take Off (PTO)
operating speed.
●The tachometer displays "Engine rotational
speed / minute" (RPM) .
●The symbol of the shape of the cogwheel directs
the speed that uses appropriate PTO.
●The hour meter displays the adjusting time at
the engine driving time.
White line [A] shows the 540 rpm of the Rear
PTO speed.
White line [B] shows the 2000 rpm of the MID
PTO speed.
INSTRUMENTS AND INDICATORS
1.TACHOMETER AND HOUR METER
[
B
]
[
A
]
4
9
3
8
1
6
5
2
7
TACHOMETER
SYMBOL
HOUR METER
