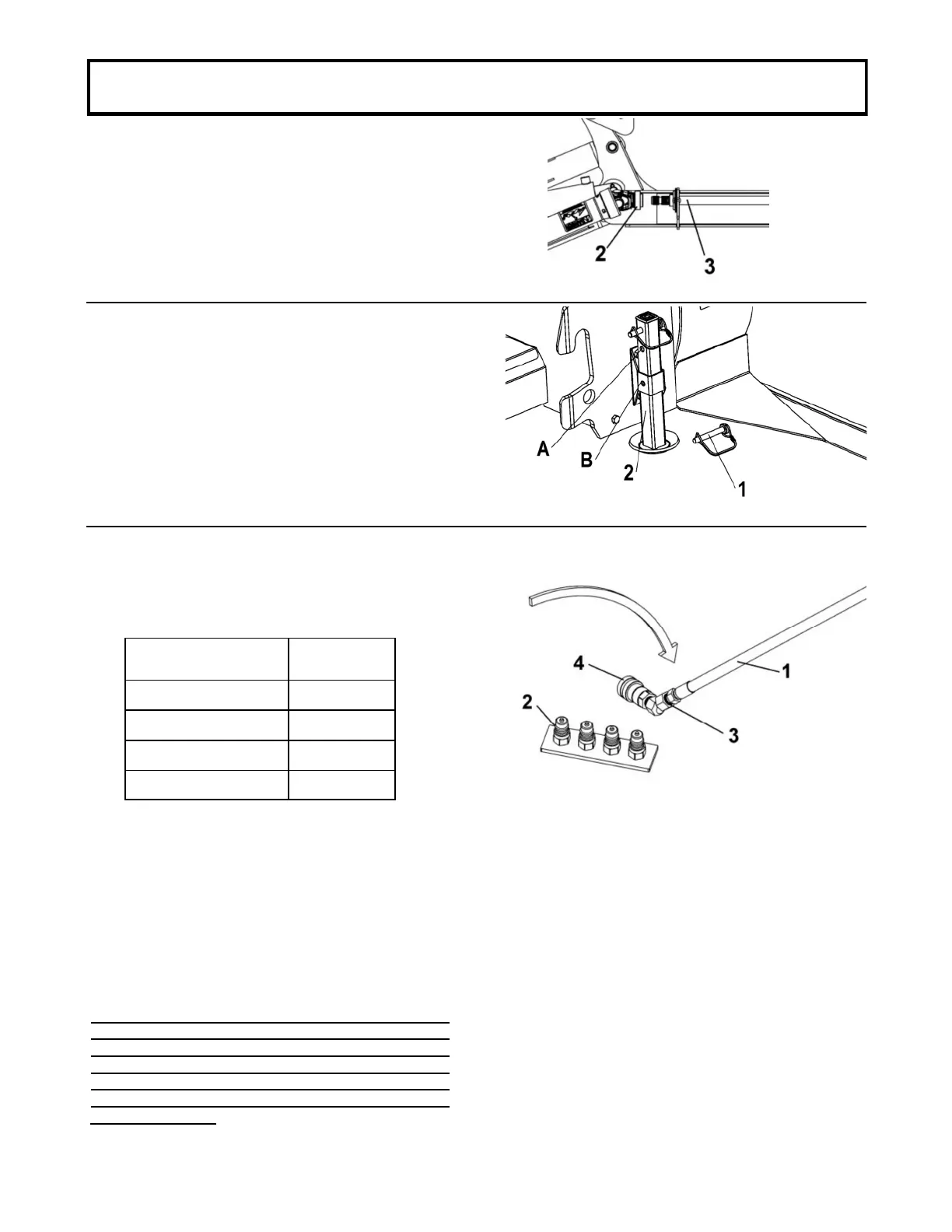

ASSEMBLY
Unitethehalfdriveline(item2)totheshaft(item3).
Unitedrivelinetoshaft
For the 2638 tractor, put the hose extensions #
700947.
Install the appropriate hydraulic connectors on the
hoses.
Connect the flexible hoses (item 1) for the
snowblower’schuterotationtothevehicle’shydraulic
system (item 2).  Read all important  following
information on this page and next page before
proceedingtotheinstallationofthehoses
Unitethehosestothehydraulicsystem
IMPORTANT: If manipulating the hydraulic
commands do not create any movement, one hose
fromthehydraulicliftsystemisinterchangedwithone
hoseforthechuterotation.
NOTE: Use a coloured tie wrap (not supplied) to
identify the different hoses to simplify future
installation.
Liftparkingstand
Lift the parking stand by removingthelock pin(item
1)fromtheholeA,thenraisetheparkingstand(item
2)andsecuretheparkingstandintheraisedposition
byinsertingthelockpinintheholeB
Dotheinversetolowertheparkingstand
IMPORTANT:
*It is the user / or the personwho does the in-
stallation’s responsibilityto installthe hosesin
sucha mannerthattheydo not comeinto con-
tactwithanymobileelementsofthevehicle(the
wheels or the subframe), sharp edge, hot sur-
faceinalloperatingconditionsifnot,thiscould
leadtodamages.
Tractor Quickconnect
kit
3016
-
3616 #700824
1533
-
1538
-
1626
-
1640 #700824
2538
-
2540
-
2545
-
2638 #700826
1526 #700827
