INTERMITTENT AND POOR CONNECTION
Most intermittent electrical problems are caused by faulty electrical connections or wiring. It is
also possible for a sticking component or relay to cause a problem. First ask the customer for
details about the driving conditions, weather conditions, frequency of occurrence and trouble
symptoms and then try to recreate the trouble symptoms. Before replacing a component or
wiring assembly, check the following items.
• Connectors / inter—connector are fully locked
• Check for water traces in the fuse or relay box / connectors
• Any spread terminals or pin back out
• Terminals in the wiring assembly are fully seated into the connector/component and locked
into position
• Dirt or corrosion on the terminals. Any amount of corrosion or dirt could cause an
intermittent problems
• Damaged connector/component casing exposing the item to dirt or moisture
• Wire insulation that has rubbed through, causing a short to ground
• Some or all of the wiring strands broken inside of the insulation
• Wiring broken inside of the insulation
Carry out the following checks with the connectors and components to confirm whether the
trouble symptom occurs.

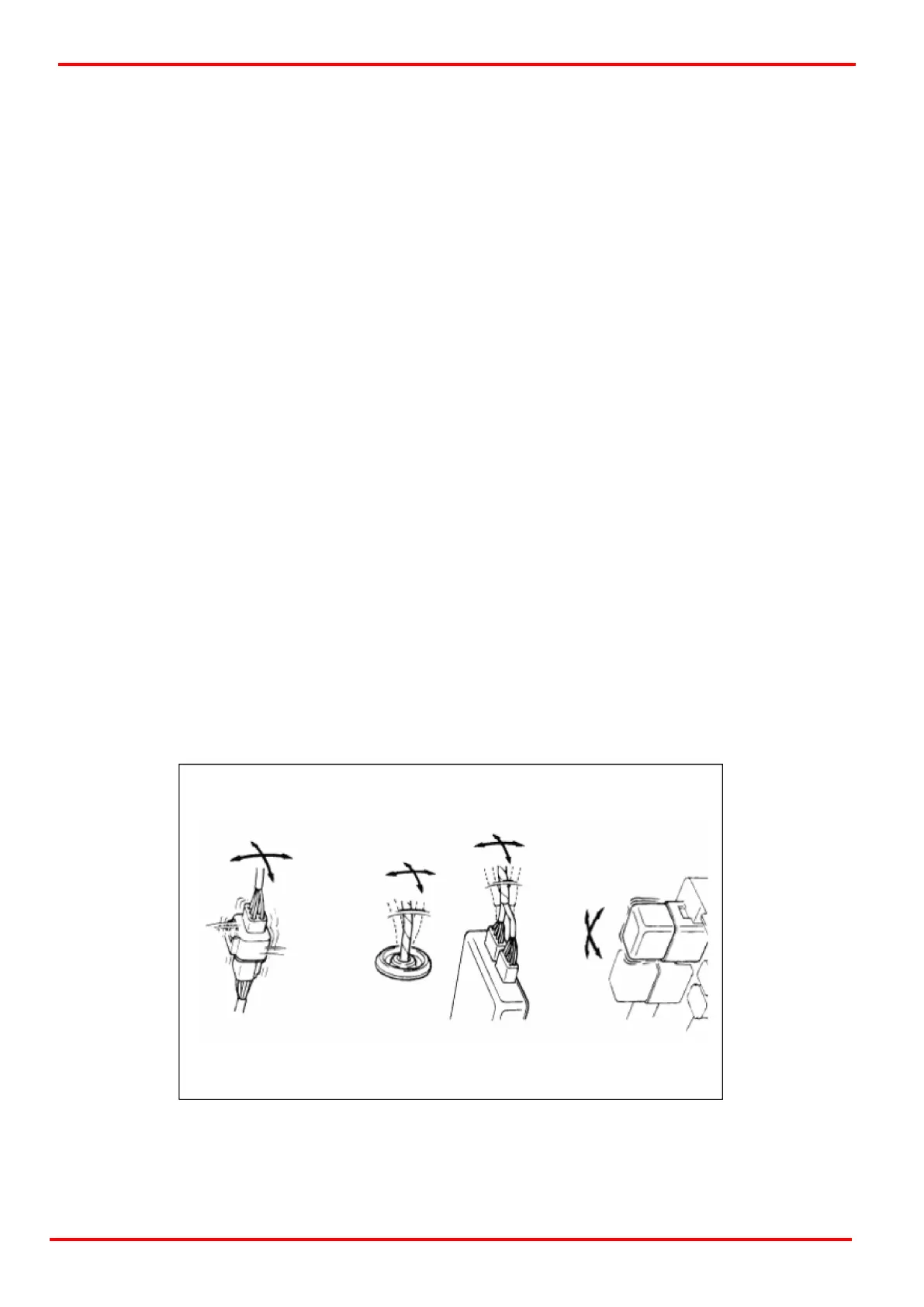

• Gently shake the connector up, down and to the left and right
• Gently shake the wiring harness up, down and to the left and right.
• Gently shake the fuse / relay board, etc. by hand.
• Gently shake the wiring harness at the location of hanging and other moving parts
