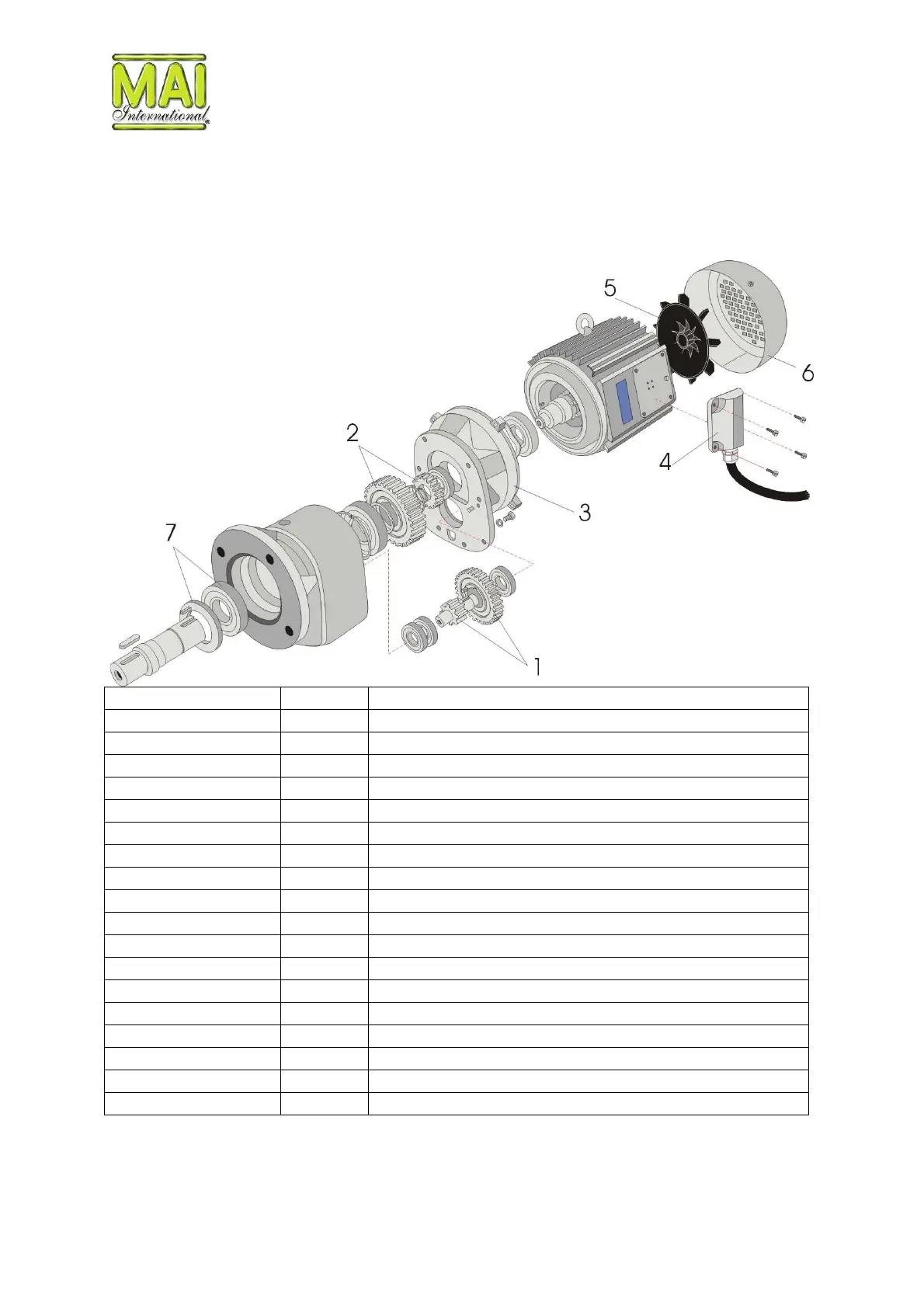

SPARE PARTS "FIGURE B"

Pos. P/N Description

1 102826 Gear set FG132, 20/61

1 102737 Gear set G132, 23/58

1.01 w/o Fig. 151549 Gear set 2. level FG132 200 min-¹, Z14/67

1.02 w/o Fig. 100018 Spur gear FG132 6 kW, 200 min-¹

1.03 w/o Fig. 153364 Spur gear motor 6kW; 200-240UPM 220/200V 50/60Hz

1.04 w/o Fig. 150217 Spur gear motor 7.5 kW 200/220 V, 50/60 Hz

2 103555 Gear set G132, 19/45

2.01 w/o Fig. 151548 Gear set 1. level FG132 200 min-¹, Z23/41

3 151287 Cover plate G132

3 151308 Motor cover 7.5 kW

4 151306 Cover for terminal box for 7.5 kW motor

4 150378 Cover for terminal box for 6 kW motor

5 100020 Fan for gear motor 2.2 - 3.3 kW, 6 kW

5 151305 Fan 7.5 kW

5.01 w/o Fig. 151286 Motor bearing for both sides

6 100019 Fan cover for gear motor 2.2 - 3.3 kW, 6 kW

6 151304 Fan cover for motor 7.5 kW

7 100021 Air seal for gear FG132
