MAI M400NT - Page 32

MAI INTERNATIONAL
GmbH

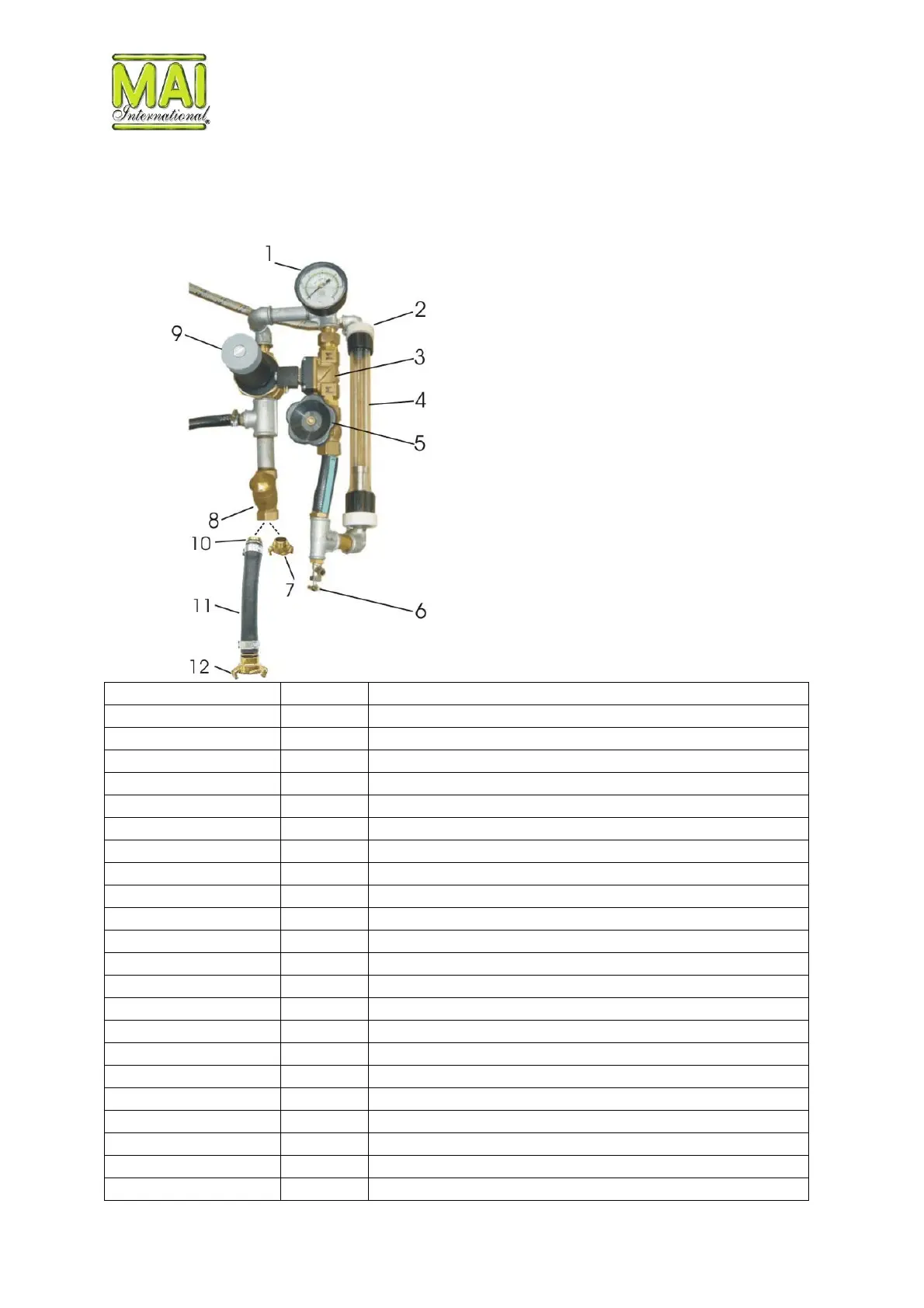

SPARE PARTS "FIGURE E"
Pos. P/N Description
1 100252 Glycerin gauge 6 bar
2 102915 Spacer for water flow meter 1000 ltrs./h
3 152559 Solenoid valve NC 1/2" NW13 42 V /50Hz
3.01 w/o Fig. 153761 Solenoid valve with cable NC 1/2" NW13 42V/50Hz
4 153606 Flow meter 1300 ltrs./h
4.01 w/o Fig. 100389 Flange for flow meter 1000 ltrs./h
4.02 w/o Fig. 153607 Measuring tube flow meter 1300 l/h
4.03 w/o Fig. 153600 Rotameter WMR 1300/1500 l/h
4.04 w/o Fig. 151301 Protection hose
5 100391 Water dosing valve 3/4" 110 MS 5
5.01 w/o Fig. 100269 Preset disk dosing valve 1/2"
6 151124 Drain valve 3/8" external thread
7 100134 Coupling GEKA 3/4" AG brass
8 151000 Filter 3/4" brass
8.01 w/o Fig. 151300 Screen mesh netting 0.35 mm
9 152787 Pressure reducing valve D06FN 1/2" with proximity switch
9.01 w/o Fig. 153645 Brass filter cup with proximity switch
9.02 w/o Fig. 153760 Brass filter cup with proximity switch and cable
10 103122 Nozzle 3/4" with external thread
11 100328 Rubber hose 3/4" black
12 100223 GEKA coupling 3/4" internal thread
12.01 w/o Fig. 103122 Nozzle 3/4" with external thread
© Copyright 2003 V20/10/03 Page 32
