Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
85
30/06/2021

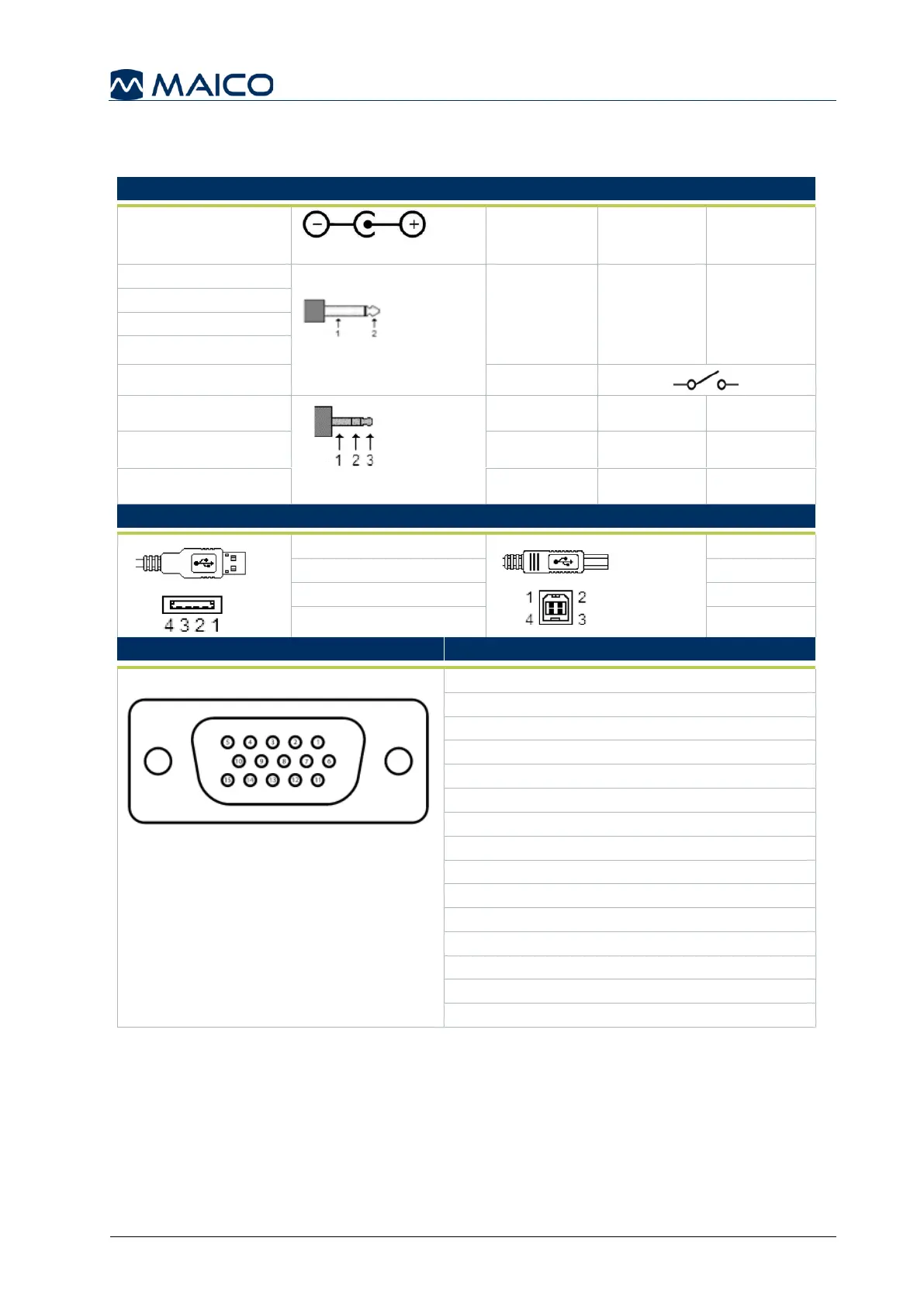

6.3 Pin Assignment
Table 19 Pin Assignment
SOCKET
CONNECTOR
PIN 1
PIN 2
PIN 3
Mains
DC socket 24 V/2,5 A
-
-
-
Contra
6.3 mm Mono
Ground
Signal
-
Phone L
Phone R
Bone
Response
-
Monitor
3.5 mm Stereo
Ground
Signal
-
TLK FW
Ground
Right
Left
TLK BK
Ground
Right
Left
USB A (OUT)
USB B (IN)
1. +5 VDC
1. +5 VDC
2. Data -
2. Data -
3. Data +
3. Data +
4. Ground
4. Ground
PROBE CONNECTOR
PIN
FUNCTION
LAN Eth
15-pin D-sub highdensity with air
connection
Pin 1
DSP_l2C_INTERRUPT
Pin 2
GND
Pin 3
IPSI_OUT
Pin 4
GND_CONTRA
Pin 5
GND_PROBE-MIC
Pin 6
DSP_I2C_SCLK
Pin 7
GND
Pin 8
GND_IPSI
Pin 9
PROBETONE_OUT
Pin 10
MIC-IN
Pin 11
DSP_I2C_DATA
Pin 12
+5 Vprobe
Pin 13
CONTRA_OUT
Pin 14
GND_PROBETONE
Pin 15
MIC-+IN
