WAVESHAPER

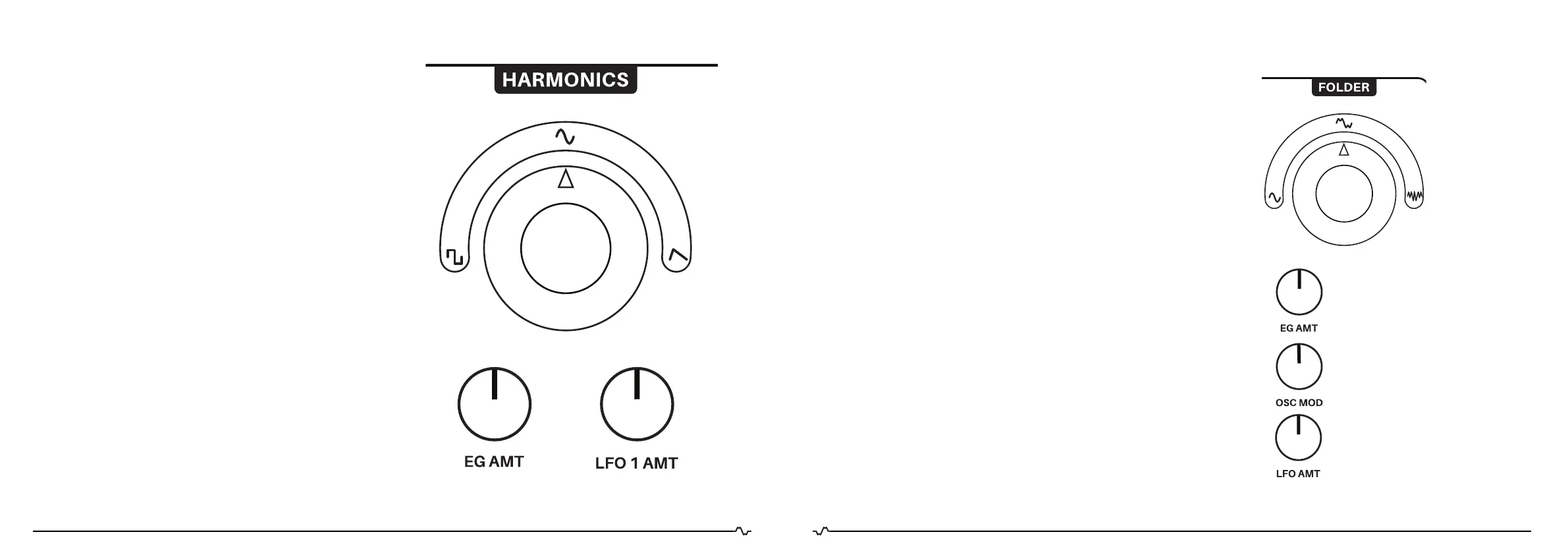

The wave shaping section adds even or odd harmonics
to the basic sine wave of the complex generator. This
section offers three shape controls: HARMONICS, EG
AMT and LFO 1 AMT. We will detail them one by one:
HARMONICS
The HARMONICS control shapes the sine wave from the
complex generator by adding even or odd harmonics.
Adding odd harmonics shapes the sine wave to a square
wave and adding even harmonics shapes the sine wave
to a saw wave.
EG AMT
The EG AMT (envelope generator amount) control sets the
modulation amount/depth of the modulation envelope
(MOD EG) to the HARMONICS parameter. The EG AMT
is polarized, which means that the modulation amount
is zero when the knob is in mid position, negative in
counterclockwise position and positive in clockwise
position.
LFO 1 AMT
The LFO 1 AMT (LFO1 amount) control sets the modula-
tion amount/depth of LFO 1 to the HARMONICS param-
eter.
WAVEFOLDER
The wavefolder section folds the incoming signal from the
HARMONICS section. This section offers four fold controls:
FOLD, EG AMT, OSC MOD and LFO AMT. We will detail them
one by one:
FOLD
The FOLDER control folds the signal coming from the
HARMONICS section. The folding effect adds harmonics to
the signal, which results in a complex waveform signal.
EG AMT
The EG AMT (envelope generator amount) control sets the
modulation amount/depth of the modulation envelope (MOD
EG) to the FOLD parameter.
OSC MOD
The OSC MOD (oscillator modulation) control sets the
amount of modulation from the BASIC GENERATOR to the
FOLD parameter.
LFO AMT
The LFO AMT control sets the modulation amount/depth of
LFO 1/2 to the FOLD parameter. The LFO source (LFO 1 or
LFO 2) can be selected utilizing the toggle switch.
