EXTERNAL OUTPUTS

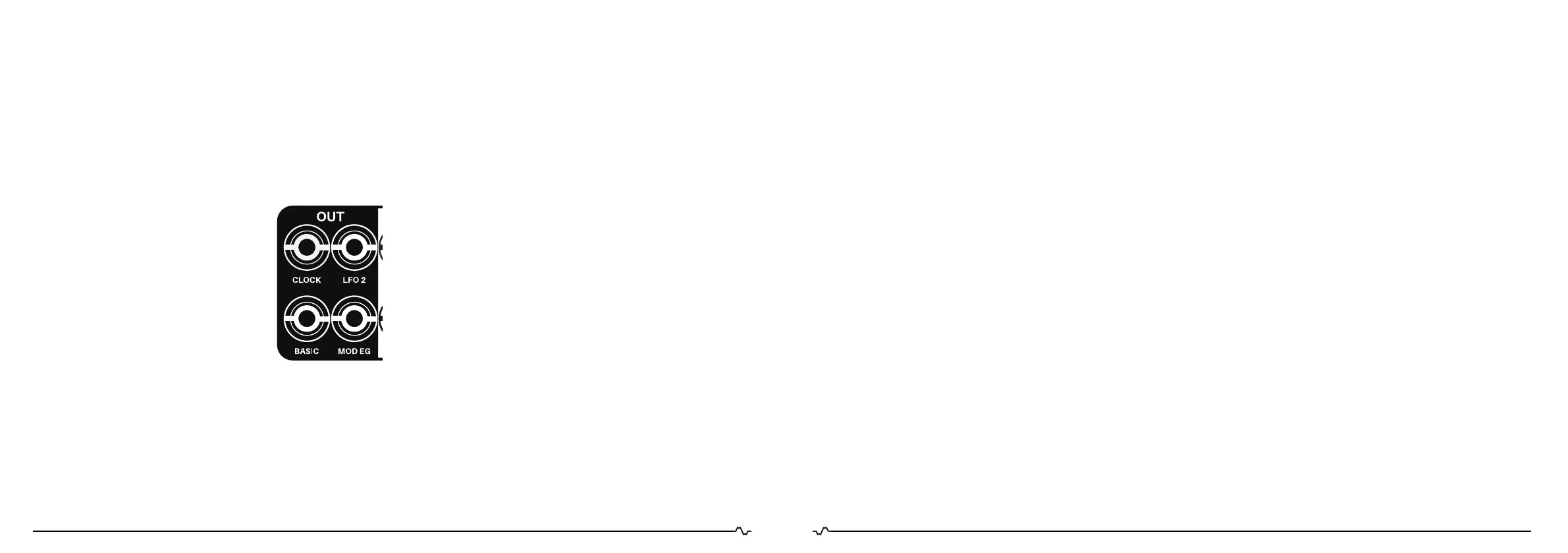

Next to to the external INPUTS the IMPLEXUS is equipped
with 4 external OUTPUTS :
1. CLOCK: IMPLEXUS clock output
2. LFO 2: LFO 2 output
3. BASIC: BASIC GENERATOR output
4. MOD EG: Modulation Envelope output
CLOCK
The CLOCK output allows you
to synchronize other gear to the
IMPLEXUS internal clock. The clock
tempo can be set using TAP TEMPO,
MIDI clock or EXT IN clock input.
TIP
In DRONE mode, the MOD EG
(modulation envelope genera-
tor) can be triggered by CLOCK
output, using a single patch
cable. Patch the CLOCK output to
the GATE input.
LFO 2
The LFO 2 output allows you to modulate external gear or
IMPLEXUS parameters using LFO 2. This low frequency
oscillator signal is in the range of +-5V. The output wave-
form and frequency can be set using the LFO 2 controls.
TIP
The LFO 2 random waveform can be used for random
pitch modulation or random modulation of parameters
like FILTER CUTOFF and VELOCITY. You can also use the
random wave output to trigger the GATE at random times,
by patching LFO 2 output to GATE input, using a single
patch cable.
BASIC
BASIC outputs the voltage-controlled oscillator signal
from the BASIC GENERATOR. This analog audio signal
can be sent to external filters and other gear to shape
the sound. You can also use the BASIC output as a
modulation source for IMPLEXUS INPUT patch points.
TIP
The BASIC GENERATOR output can be used to modulate
VELOCITY and FILTER CUTOFF, using a single patch
cable.
MOD EG
The MODULATION ENVELOPE GENERATOR output,
outputs the envelope signal from the MOD EG. It basi-
cally offers you a snappy, looping, analogue envelope
generator with velocity control over modulation depth.
The output envelope signal can be set using the MOD EG
controls.
