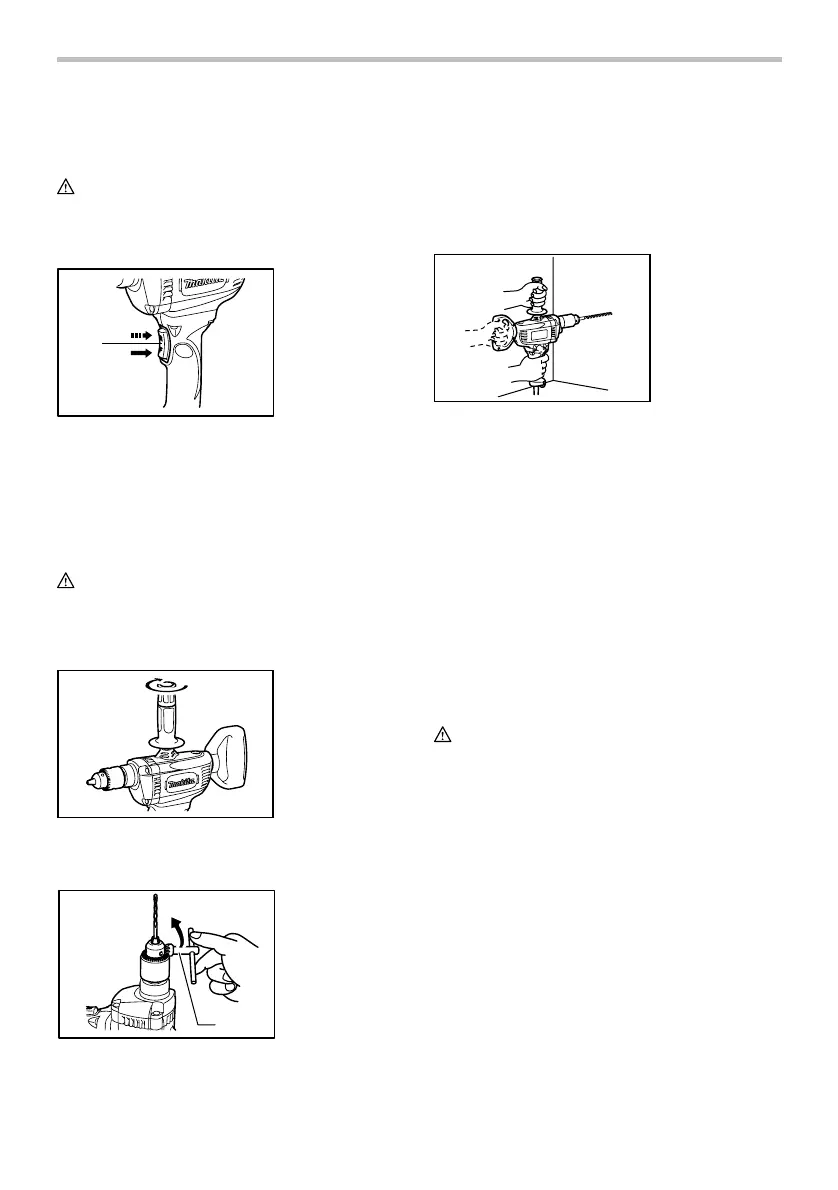

5
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
For Models DS4011 and DS5000
CAUTION:
• Change the direction of rotation only when the tool
comes to a complete stop. Changing it before the
tool stops may damage the tool.
1
2
3
011310
The switch is reversible, providing either clockwise or
counterclockwise rotation. To start the tool, simply pull
the lower part of the switch trigger for clockwise or the
upper part for counterclockwise. Release the switch
trigger to stop.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing top grip (auxiliary handle)
011311
Screw the top grip on the tool securely.
Installing or removing drill bit
1
011313
To install the bit, place it in the chuck as far as it will go.
Tighten the chuck by hand. Place the chuck key in each
of the three holes and tighten clockwise. Be sure to
tighten all three chuck holes evenly.
To remove the bit, turn the chuck key counterclockwise in
just one hole, then loosen the chuck by hand.
After using the chuck key, be sure to return to the original
position.
OPERATION
011314
Drilling operation
Always use the top or back grip (auxiliary handle) and
firmly hold the tool by top or back grip and switch handle
during operations.
Drilling in wood
When drilling in wood, the best results are obtained with
wood drills equipped with a guide screw. The guide
screw makes drilling easier by pulling the bit into the
workpiece.
Drilling in metal
To prevent the bit from slipping when starting a hole,
make an indentation with a center-punch and hammer at
the point to be drilled. Place the point of the bit in the
indentation and start drilling.
Use a cutting lubricant when drilling metals. The
exceptions are iron and brass which should be drilled dry.
CAUTION:
• Pressing excessively on the tool will not speed up
the drilling. In fact, this excessive pressure will only
serve to damage the tip of your bit, decrease the
tool performance and shorten the service life of the
tool.
• There is a tremendous twisting force exerted on the
tool/bit at the time of hole breakthrough. Hold the
tool firmly and exert care when the bit begins to
break through the workpiece.
• A stuck bit can be removed simply by setting the
reversing switch to reverse rotation in order to back
out. However, the tool may back out abruptly if you
do not hold it firmly. (For Models DS4011 and
DS5000)
• Always secure small workpieces in a vise or similar
hold-down device.
• Avoid drilling in material that you suspect contains
hidden nails or other things that may cause the bit
to bind or break.
1. Drill chuck
1.
Counterclockwise
2. Switch trigger
3. Clockwise
