This tool has a reversing switch to change the direction of rotation.
Depress the reversing switch lever from the A side for clockwise
rotation or from the B side for counterclockwise rotation.
When the reversing switch lever is in the neutral posi-
tion, the switch trigger cannot be pulled.

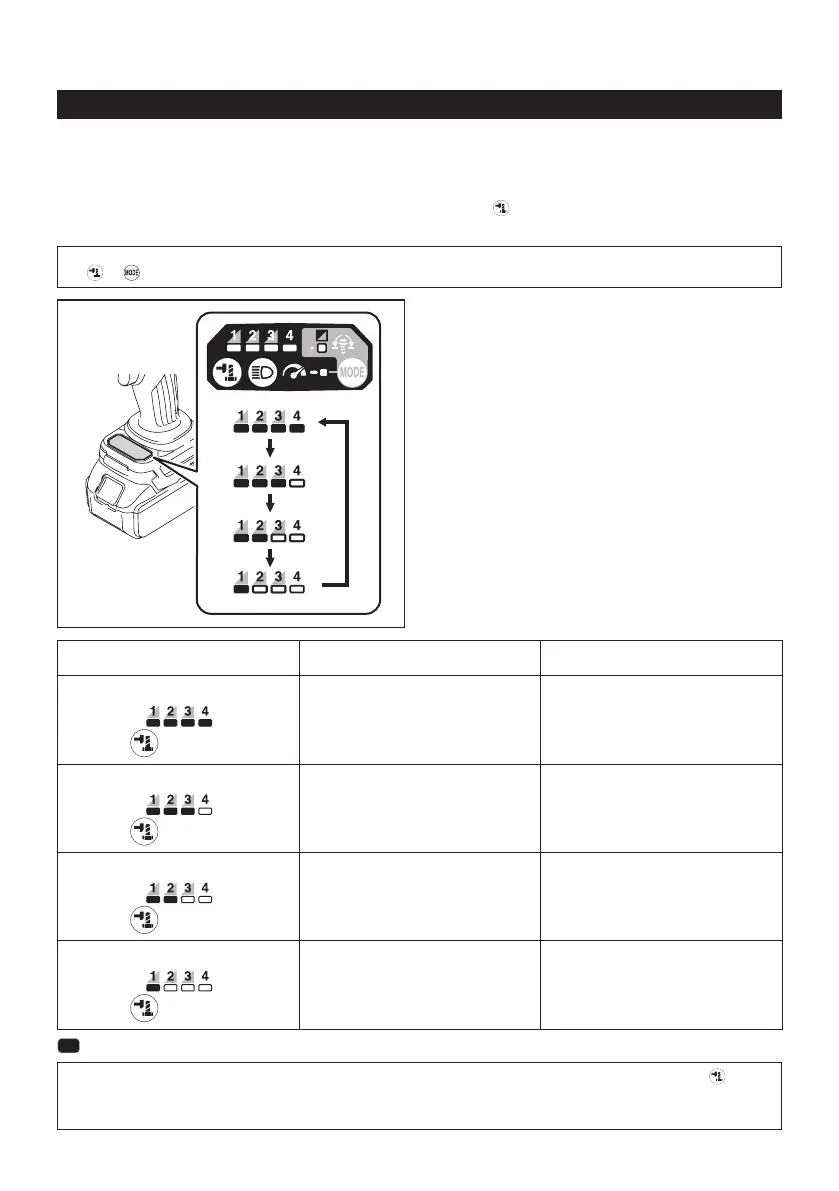

Changing the application mode
Changing the impact force
You can change the impact force in four steps: 4 (max), 3 (hard), 2 (medium), and 1 (soft).
This allows a tightening suitable to the work.
Theleveloftheimpactforcechangeseverytimeyoupressthebutton
.
Youcanchangetheimpactforcewithinapproximatelyoneminuteafterreleasingtheswitchtrigger.
NOTE:Youcanextendthetimetochangetheimpactforceapproximatelyoneminuteifyoupressthebut-
ton
or .
Application mode
(Impact force grade displayed on panel)
Maximum blows Purpose
4 (Max)
2,700 min
-1
(/min) Tightening with the maximum force and
speed.
Tightening when the force and the speed
are desired.
3 (Hard)
2,400 min
-1
(/min) Tightening with less force and speed than
Max mode (easier to control than Max
mode).
Tightening when the force and the speed
are desired.
2 (Medium)
1,700 min
-1
(/min) Tighteningwhenagoodnishingis
needed.
Tighteningwhenyouneedgoodcontrol
power.
1 (Soft)
1,000 min
-1
(/min) Tightening with less force to avoid screw
thread breakage.
Tighteningwhenyouneedneadjustment
with small diameter bolts.
: The lamp is on.
NOTE: When none of the lamp on the panel is lit, pull the switch trigger once before pressing the button
.
NOTE:Alllampsontheswitchpanelgooutwhenthetoolisturnedo󰀨tosavethebatterypower.Theimpactforce
gradecanbecheckedbypullingtheswitchtriggertotheextentthatthetooldoesnotoperate.
