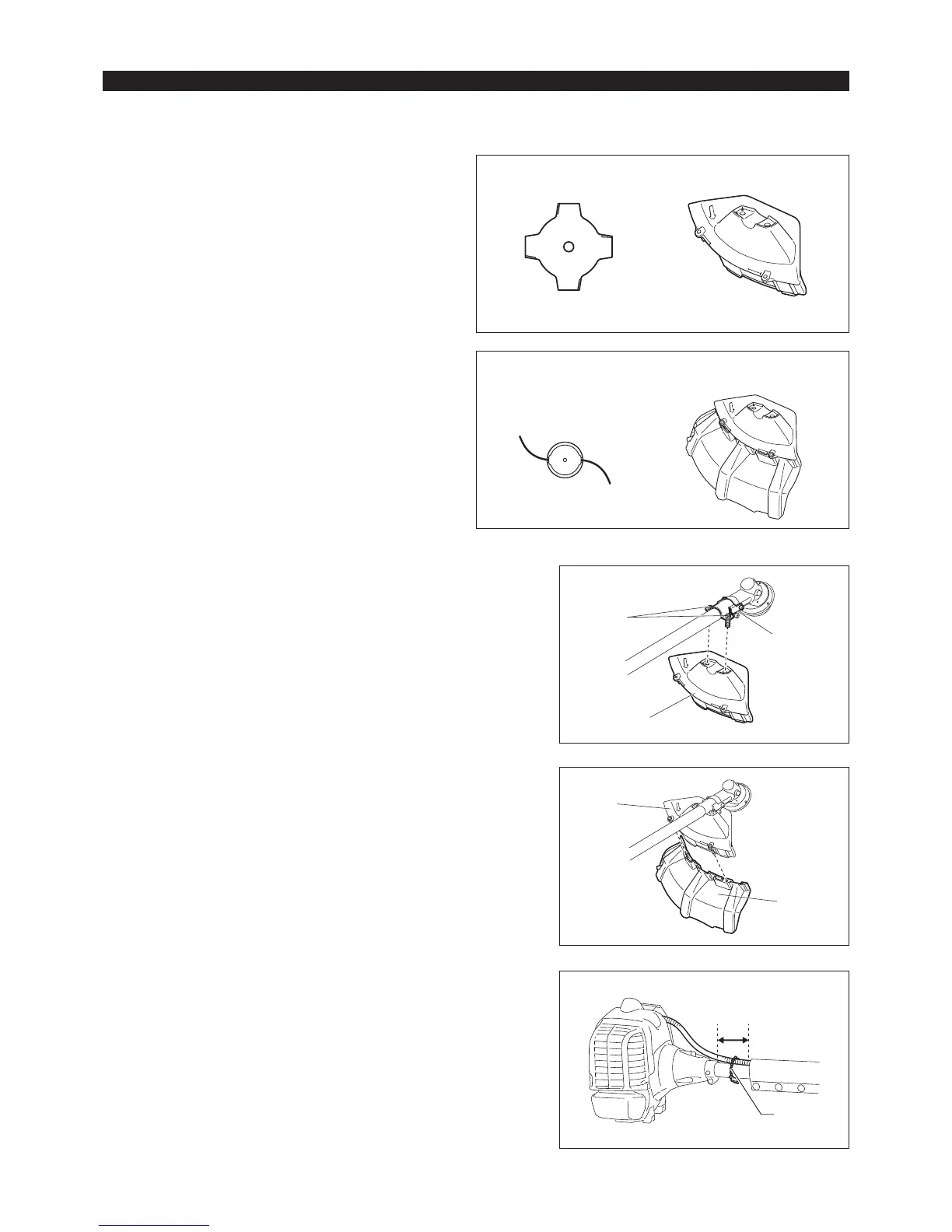

To meet the applicable safety provisions, only the tool/protector combinations as indicated in the table must be used.

MOUNTING OF PROTECTOR

CAUTION: The appropriate protector must always be installed,

for your own safety and in order to comply with

accident prevention regulations.

Operation of the equipment without the guard being

in place is not permitted.

NOTE: The standard combination of cutting tool differs from

county to country.

Metal blade

Nylon cutting head

Protector for metal blades

Protector for

nylon cutting head

(3)

(4)

– In cases where the nylon cord cutter is to be used, be sure to mount the

nylon cord cutter protector (4) onto the metal blade protector (3).

CAUTION: Take care not to injure yourself on the cutter for cutting the nylon

cord.

(3)

(1)

(2)

– In use of the metal blade, x the protector (3) to the clamp (2) with two bolts

(1).

NOTE: Tighten the right and left bolts evenly so that the gap between the clamp

(2) and the protector (3) will be constant.

Otherwise, the protector sometimes may not function as specied.

(1)

(For model EM3400U only)

Attaching the fastener

Fix the control cable and shaft by the fastener (1) in the area shown in the

gure.
