9
CAUTION: Before doing any work on the equipment, always stop the engine and pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION: Start the engine only after having assembled it completely.

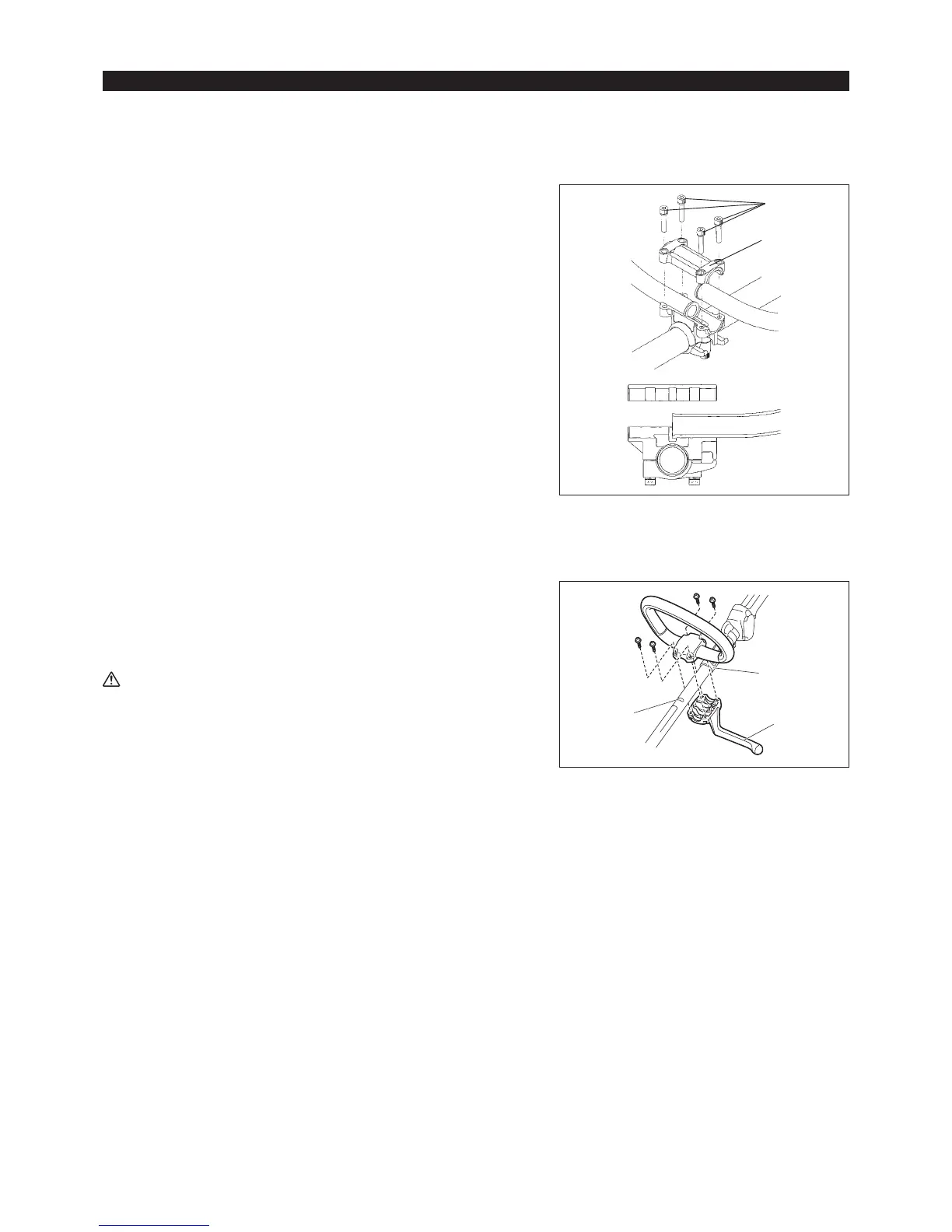

MOUNTING OF HANDLE
For loop handle models
– Fix a barrier (1) to the left side of the machine together with the handle for
operator protection.
– Make sure that the grip/barrier assembly is tted between the spacer and the
arrow mark (2).
WARNING: Do not remove or shrink the spacer (3). The spacer keeps a
certain distance between both hands. Setting the grip/barrier
assembly close to the other grip beyond the length of the
spacer may cause loss of control and serious personal injury.
NOTE:
– In some countries the spacer is not included. In that case t the grip/barrier
assembly between arrow marks.
(1)
(2)
(3)
(2)
(1)
For bike handle models
– Place the handle with the throttle lever on the handle holder on the right side (to
be held by the right hand) and the other on the left side.
– Fit the handle edge to the handle holder groove, and provisionally x the upper
side (1) of the handle holder by four bolts M5 x 25 (2).
– Adjust the handle to an angle easy to manipulate, and tighten the bolt (2)
uniformly on the right and left sides.
EM3400U
EM3400L
