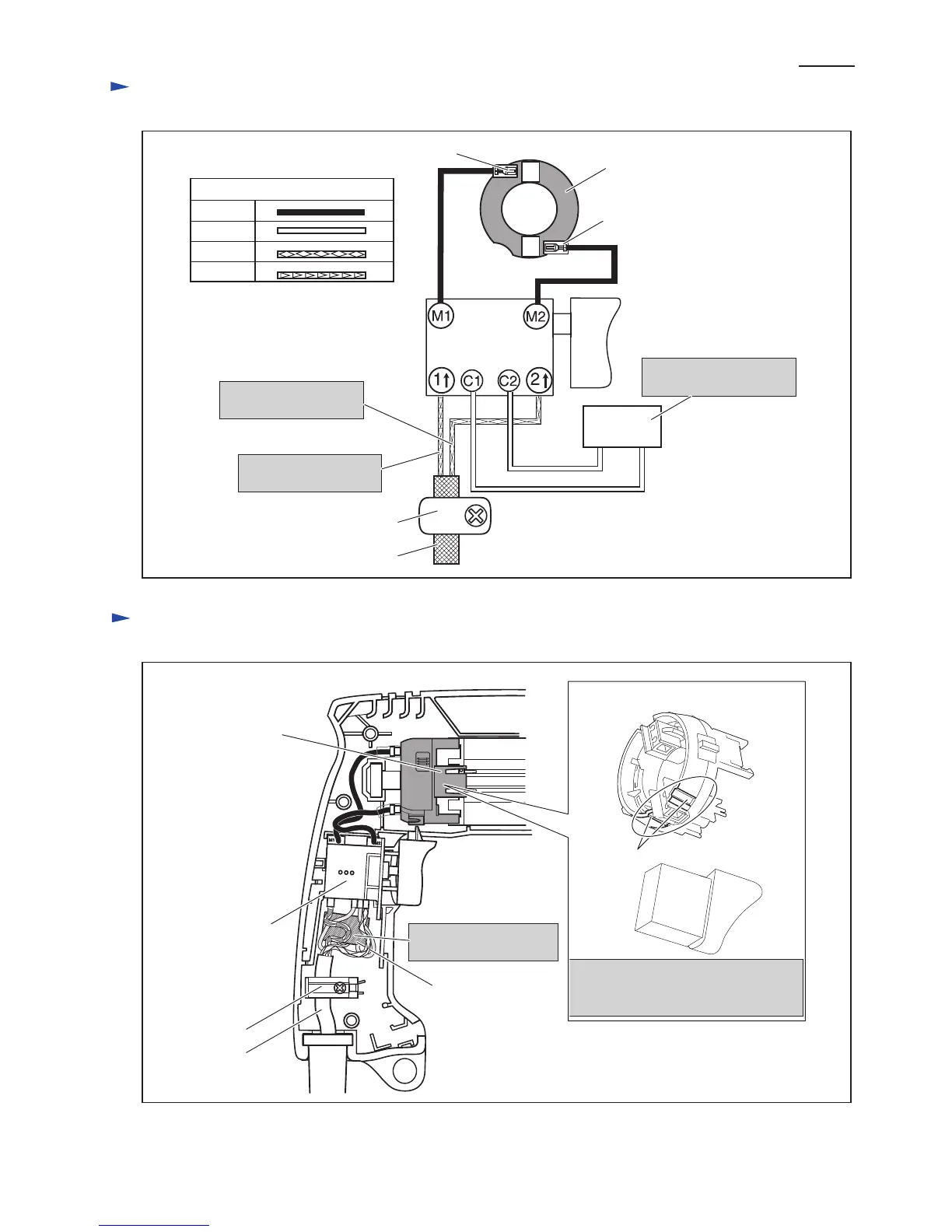

Circuit diagram of HP1640
Wiring diagram of HP1640
P 6/ 7
White
Noise
suppressor
Noise suppressor is not
used for some countries.
Color index of lead wires' sheath
Black
Blue
Brown
Switch
Receptacle
Receptacle
Brush holder unit
Power supply cord
Strain relief
This lead wire is black
for some countries.
This lead wire is white
for some countries.
Put Niose suppressor in
this position if it is used.
Switch
Strain relief
Power supply cord
Niose suppressor
Brush holder unit
Brush holder unit
Brush holder unit has to be mounted
to Housing L so that the recess portions
are faced to Switch.
Recess portion
Switch
Fig. D-1A
Fig. D-2A
