5

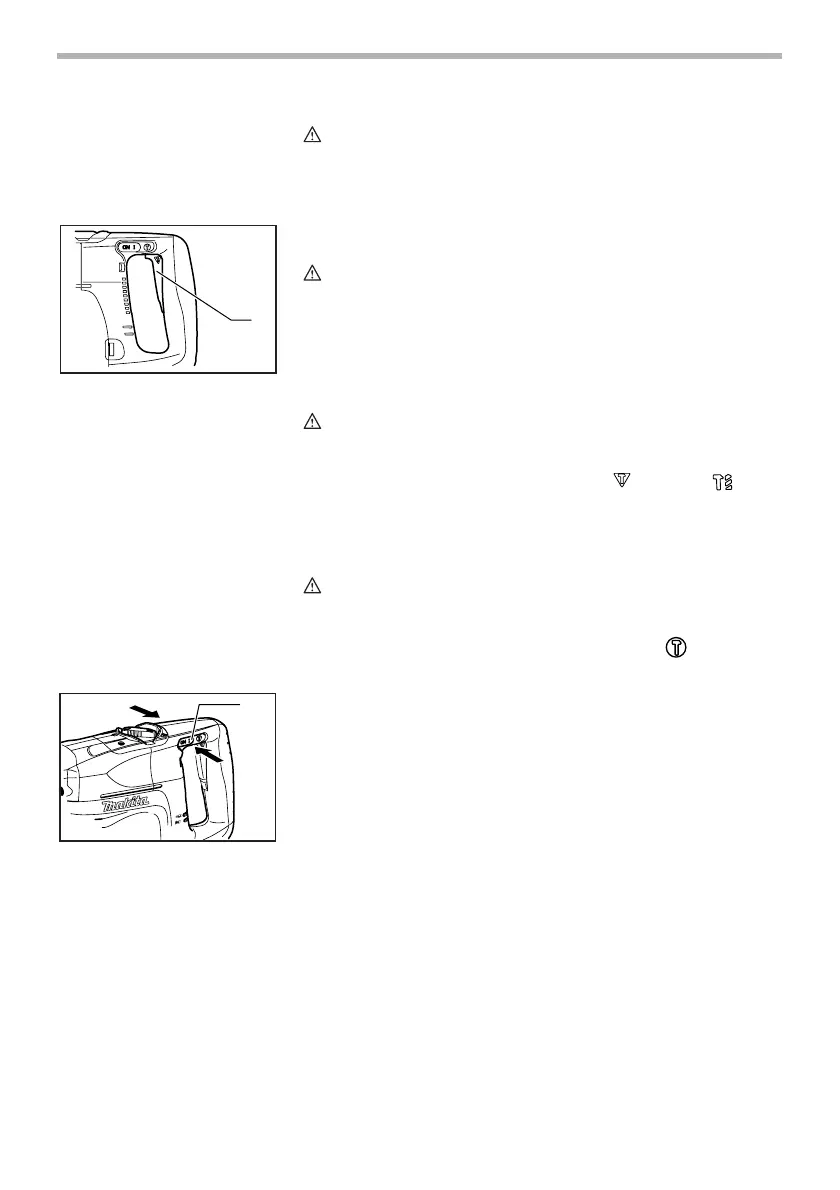

FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Switch action
FOR MODEL HR4011C
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF” position when released.
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
FOR MODELS HR4010C/ HR4001C
Trigger switch
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF” position when released.
• This switch functions when setting the tool in symbol and symbol
modes.
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
Slide switch
CAUTION:
• Before plugging in the tool, always check to see that the tool is switched
off.
• This switch functions only when setting the tool in symbol action
mode.
When using the tool in the hammering mode for a long time, the slide switch is
available. To start the tool, push the “I (ON)” side of the switch lever. To stop
the tool, push the “O (OFF)” side of the switch lever.
1. Switch trigger
1
006307
1. Switch lever
OFF
ON
1
006308

Makita HR4010C Specifications

General

Impact rate	2750 bpm
Rated speed (max)	480 RPM
Impact energy (max)	9.5 J
Weight (including battery)	6713 g
Carrying case	Yes
Power source	AC

Weight and Dimensions

Depth	470 mm
