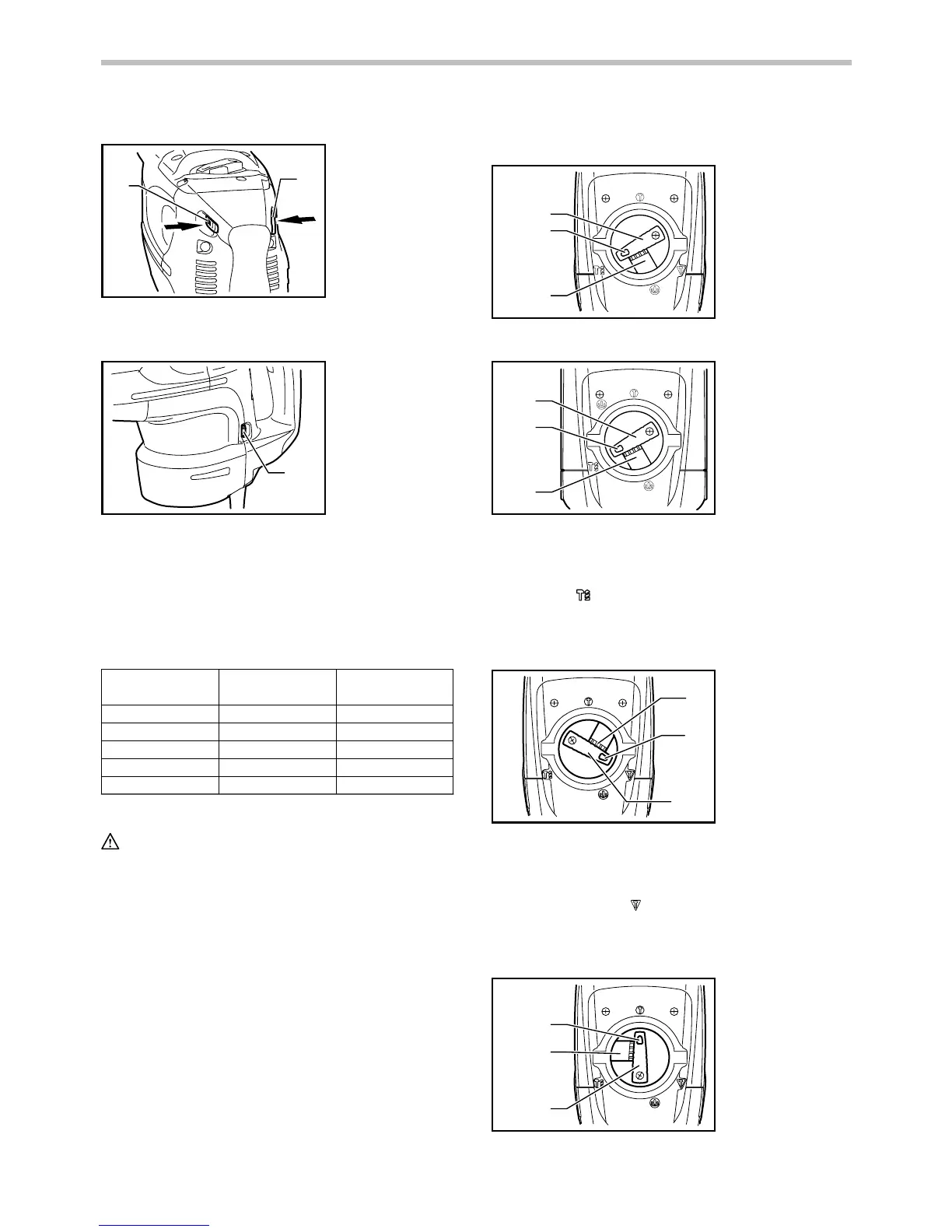

6
push the "O (OFF)" side of the switch lever.
1
1
007837
Speed change
1
007838
The revolutions and blows per minute can be adjusted
just by turning the adjusting dial. The dial is marked 1
(lowest speed) to 5 (full speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the
revolutions/blows per minute.
5
4
3
2
1
Number on
adjusting dial
Revolutions per
minute
Blows per minute
260
240
190
150
130
2,150
2,000
1,600
1,250
1,075
007903
CAUTION:
• If the tool is operated continuously at low speeds
for a long time, the motor will get overloaded,
resulting in tool malfunction.
• The speed adjusting dial can be turned only as far
as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
Selecting the action mode
Rotation with hammering
HR5210C
HR5201C
1
2
3
007839
HR5211C
1
2
3
007860
For drilling in concrete, masonry, etc., depress the lock
button and rotate the change lever so that the pointer
points to the
symbol. Use a tungsten-carbide tipped
bit.
Hammering only
FOR MODELS HR5201C AND HR5210C
3
2
1
007902
For chipping, scaling or demolition operations, depress
the lock button and rotate the change lever so that the
pointer points to the
symbol. Use a bull point, cold
chisel, scaling chisel, etc.
For long time hammering (FOR MODELS HR5201C
AND HR5210C)
1
2
3
007840
1. Pointer
2. Lock button
3. Change lever
1. Change lever
2. Pointer
3. Lock button
1. Change lever
2. Pointer
3. Lock button
1. Change lever
2. Pointer
3. Lock button
1. Adjusting dial
1. Switch lever
