Makita JS1601 Technical Information

Wiring diagram
P 10/ 12
Field lead wires (red) have to be
guided out from the opening of
right side .
Switch knob
Motor
housing
Right
Left
(Switch knob side)
Left
(Switch knob side)

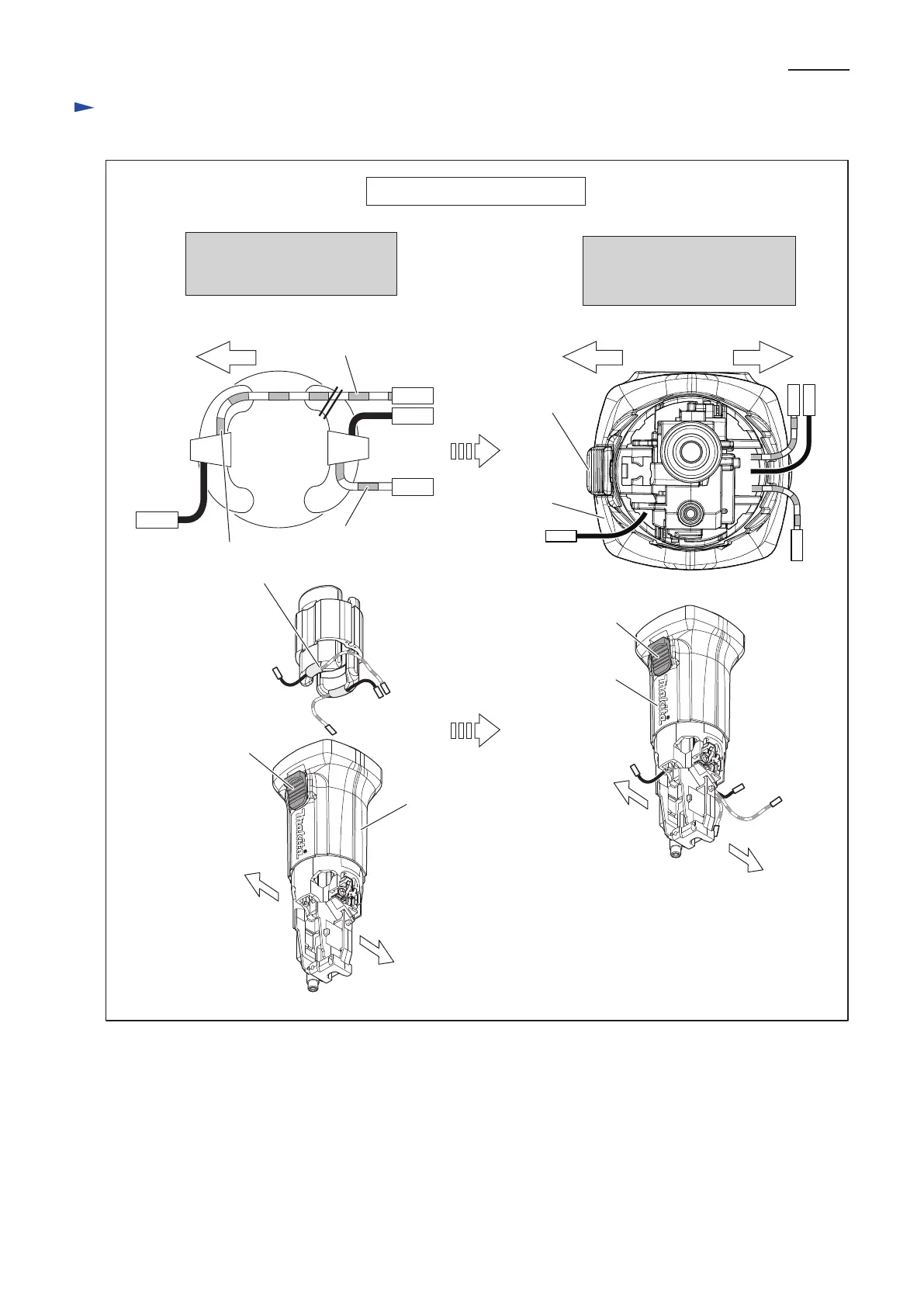

Wiring of Field lead wires
Field lead wires (red)
Field lead
wires (red)
Motor housing
Motor housing
Switch knob
Left
Right
Facing the connecting portion
of long Lead wire (red) to left,
insert Field into Motor housing.
Switch knob
Connecting portion of
long Lead wire (red)
Left
Right
Fig. D-3
