Makita JS1601 Technical Information

Wiring diagram

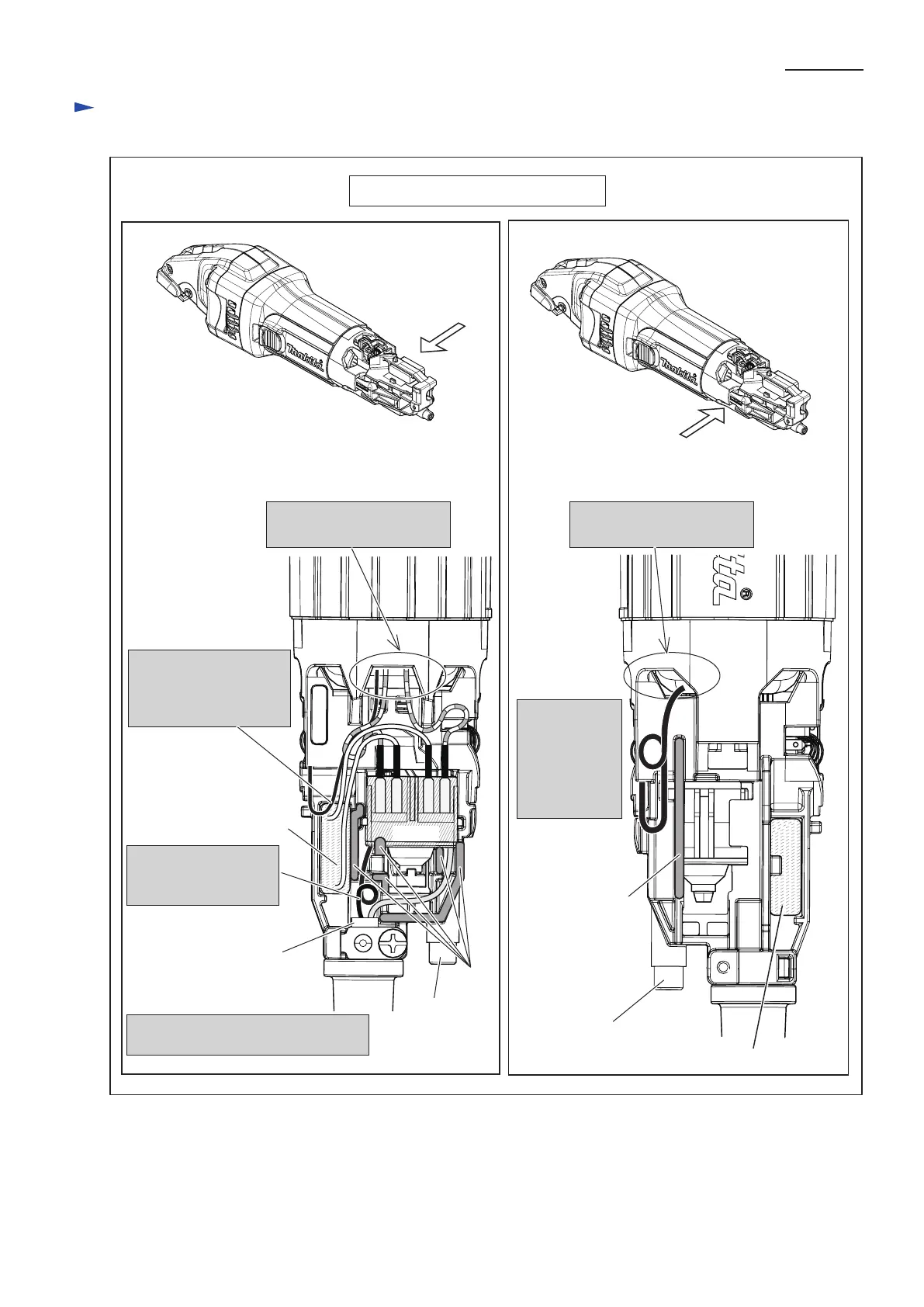

Wiring on Motor Housing
Right side view left side view
P 11/ 12
Fig. D-4
Tighten the Field lead wires
in Motor housing.
Switch
Rib
Rib
Pass Field lead
wire (black) to
be connected to
Brush holder,
under the Rib
(belly side).
Power Supply Cord
Boss for
4x18 Tapping screw
Boss for
4x18 Tapping
screw
Put Lead wires of Power supply cord
between Ribs.
Put sag portion of Lead
wire of Power supply
cord in this place.
Noise
Suppressor
Be careful, not to pinch
Field lead wire (black)
to be connected to Brush
holder with Rear cover.
Tighten the Field lead wires
in Motor housing.
Noise suppressor

Makita JS1601 Specifications

General

Brand	Makita
Model	JS1601
Category	Power Tool
Language	English
