Makita JS1601 Technical Information

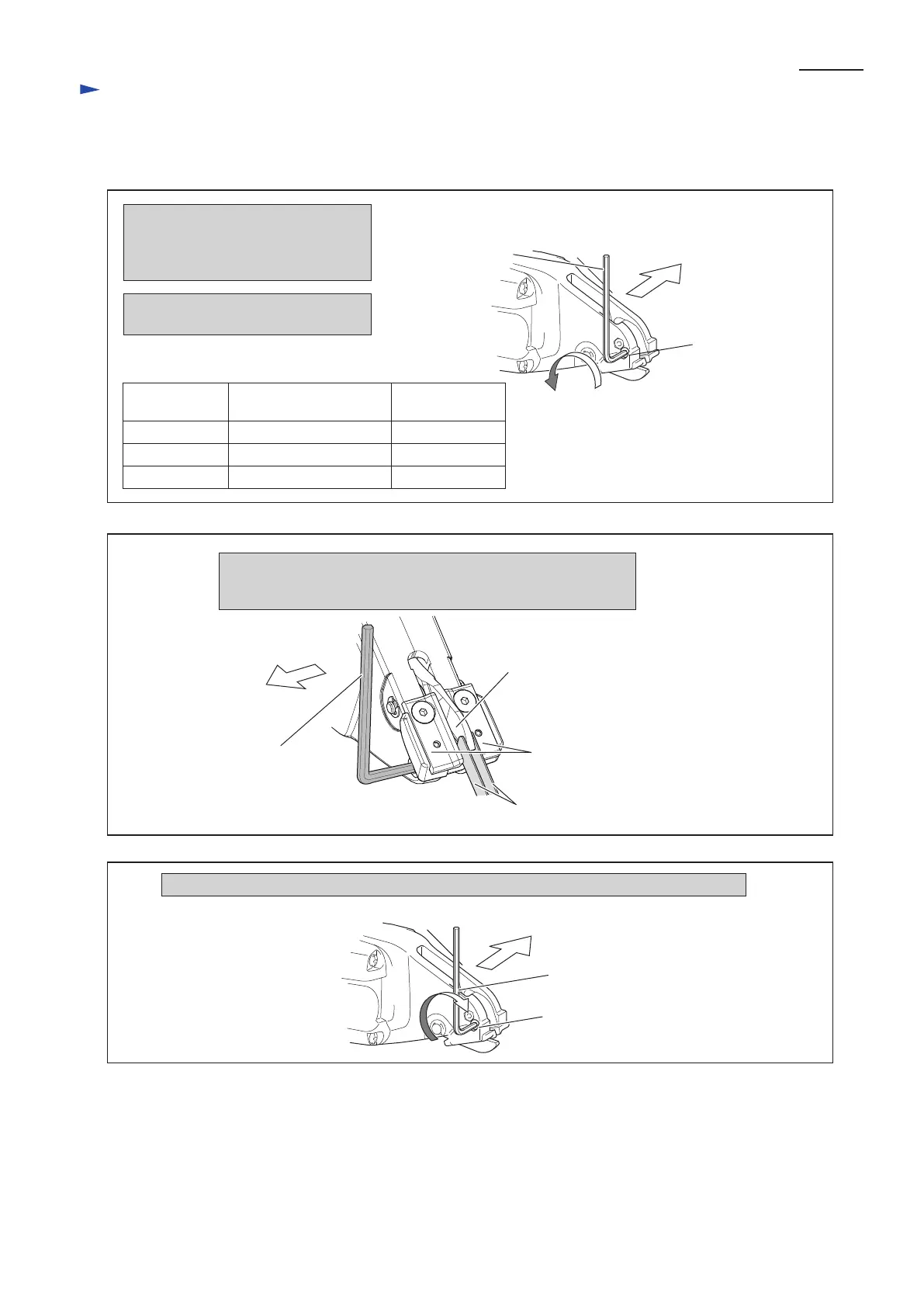

[4] ADJUSTMENT
Fig. 20
Fig. 21
1. Loosen M6x10 Hex socket head set
screw, turning it by 360 degrees with
Hex wrench in order to reserve the
turning angle for adjustment.
2. Select the proper Leaves of 1R366,
according to the following table.
Adjust the clearance between Center blade and Side blades as illustrated in Figs. 20, 21 and 22.
Hex wrench 3
less than 0.8
More than 1.3
0.8 - 1.29
0.1
0.3
0.2
0.04 + 0.06
0.1 + 0.2
0.05 + 0.15
Workpiece
Thickness (mm)
Clearance (mm) between
Center and Side blades
Combination of
Leaves of 1R366
M6X10 Hex socket
head set screw
Fig. 22
Leaves of 1R366 selected
from the table in Fig. 20
Hex wrench 3 set on
M4x25 Hex socket
head bolt (on Switch
knob side)
Inserting Leaves of 1R366 between Center blade and Side blades,
adjust the clearance by turning M4x25 Hex socket head. bolt (on
Switch knob side) with Hex wrench 3.
Center blade
Side blades
Switch knob side
Switch knob
side
Hex wrench 3
M6X10 Hex socket
head set screw
Switch knob side
After adjusting the clearance, tighten M6x10 Hex socket head set screw with Hex wrench 3.
P 8/ 12
