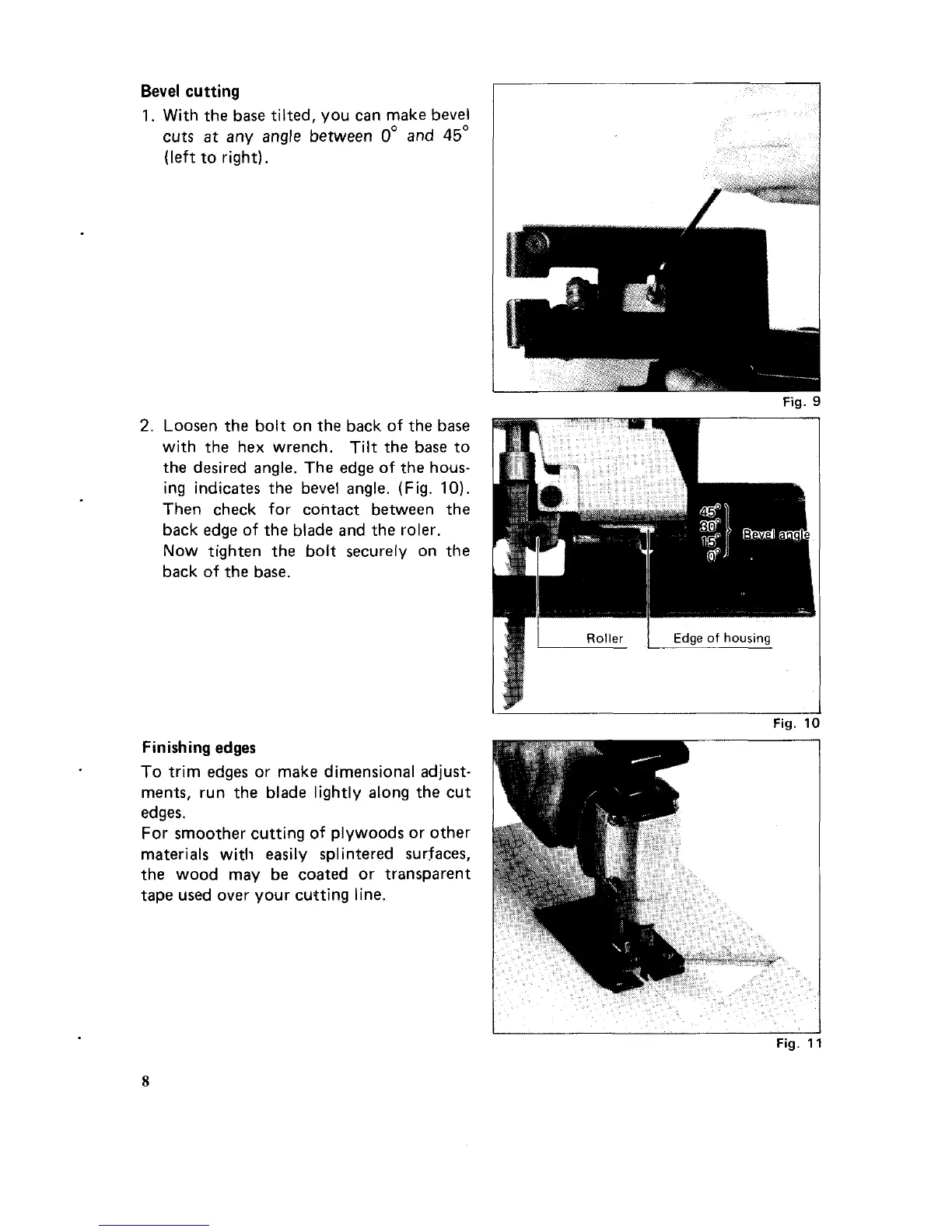

Bevel cutting
1.
With the base tilted, you can make bevel
cuts
at
any angle between
0"
and
45"
(left to right).
2.
Loosen the bolt on the back of the base
with the hex wrench. Tilt the base to
the desired angle. The edge of the hous-
ing indicates the bevel angle. (Fig.
IO).
Then check for contact between the
back edge
of
the blade and the roler.
Now tighten the bolt securely on the
back of the base.
Finishing edges
To
trim edges or make dimensional adjust.
ments, run the blade lightly along the cut
edges.
For smoother cutting of plywoods or other
materials with easily splintered surfaces,
the wood may be coated or transparent
tape used over your cutting line.
I
Fig.
9
I
Roller
1
Edge
of
housing
Fig.
I(
1
7
Fig.
11
8
