Makita LC1230 Technical Information

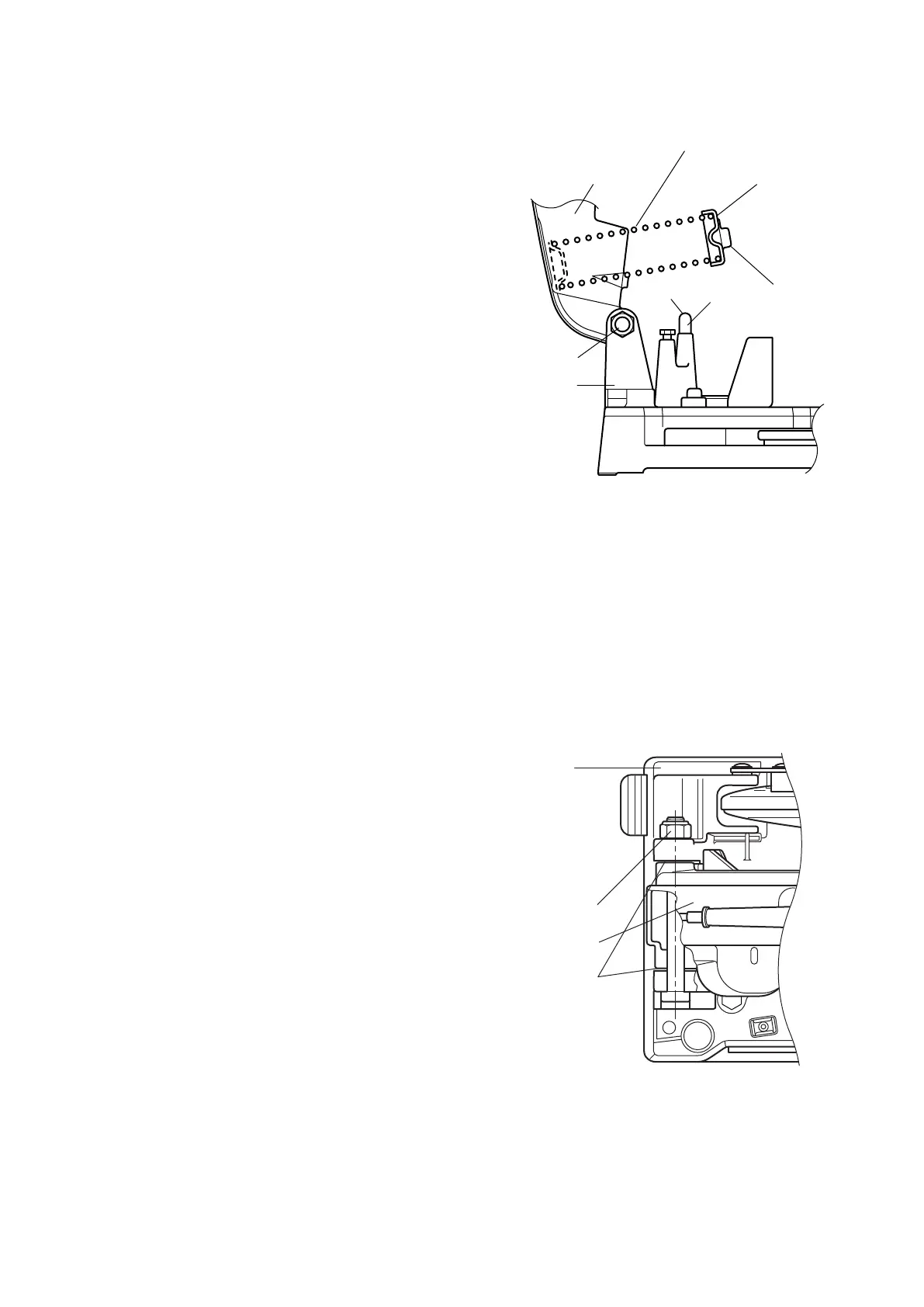

Mounting of compression spring
1. Mount end of the compression spring in the
gear housing L after standing the gear housing L
as illustrated left.
2. Mount the another end of compression spring
on the spring holder. In this process the stamp
on the spring holder has to come on the upper side
in view of operating position.
3. Mount the spring holder on the position A greased
with MAKITA Grease No.1, pressing the compression
spring.
Gear housing L
Gear housing L
Compression spring
Hex bolt M16
Hex nut M16-24
Base
Base
Stamp
Spring holder
Position A
Greease
Greease
Adjust of base and gear housing L
1. Adjust with the hex nut M16-24 for smooth moving of
motor unit (motor housing and blade case) without
swinging to left and right.
2. Mount the gear housing L on the base, greasing the
contact place with MAKITA Grease No.1

Makita LC1230 Specifications

General

Blade bore	25.4 mm
Blade diameter	304.8 mm
Idle speed (max)	1300 RPM
Sound power level	115 dB
Cutting depth (45º)	88.9 mm
Cutting depth (90º)	114.3 mm
Sound pressure level	107 dB
Saw blade included	Yes
Diamond disc	-
Cutting capacity 0°	100 x 100 mm
Cutting capacity 45° miter	100 x 85 mm
Power source	AC

Weight and Dimensions

Depth	514.35 mm
Weight	19300 g
