Dismounting of handle and switch unit
Handle set is fastened on the gear housing L with 6 screws sa follows.
-with 3 screws, Handle R and L
-with another 3 screws, Handle set and Gear Housing L

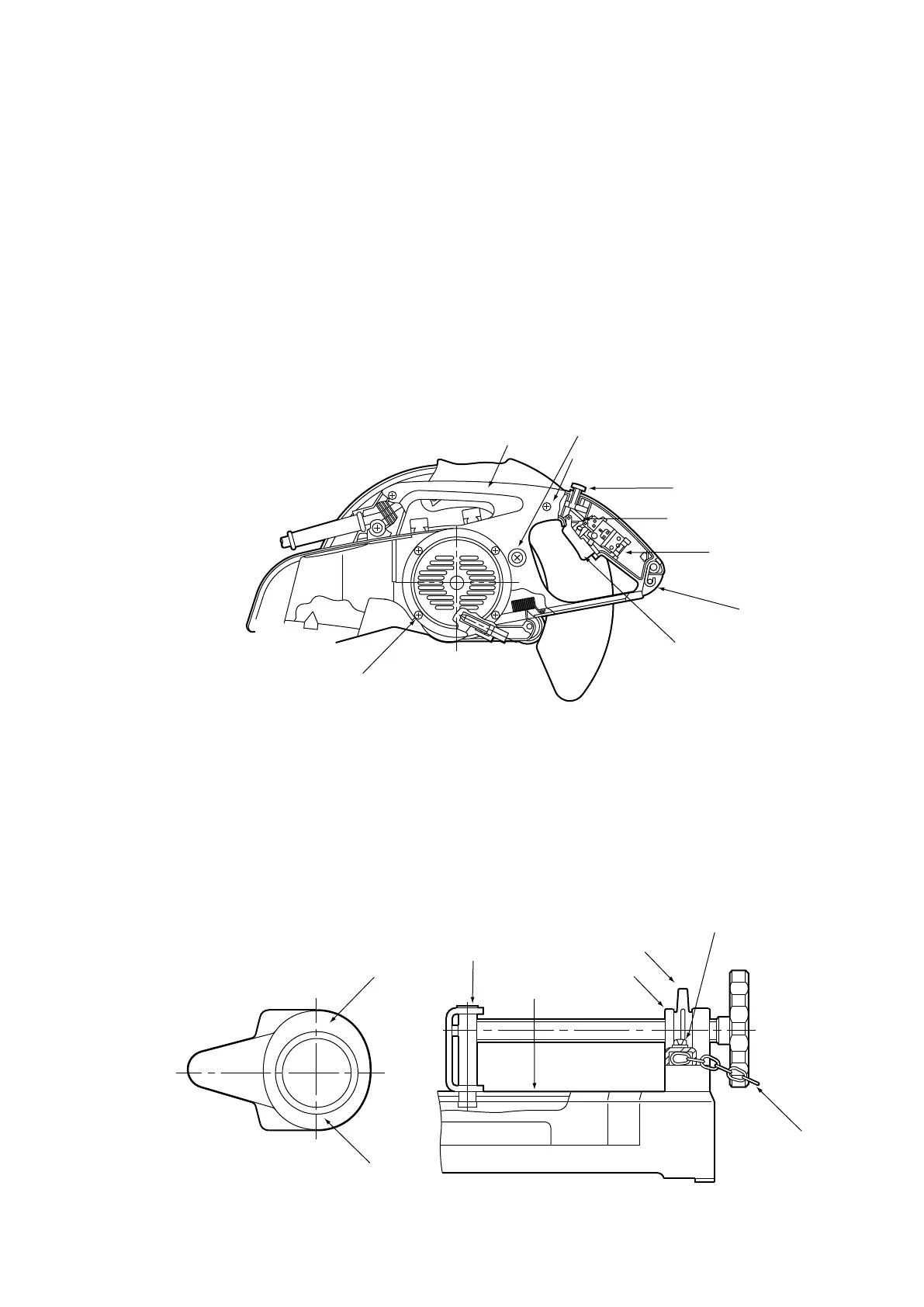

1. Dismount the handle L, bay taking off these 6 screws. Construction of the switch unit is as illustrated below.
2. Dismount the motor housing. (The handle R can not be dismounted without taking off the motor housing.
And please refer to the following "Dismounting of motor unit")
3. Dismount the handle R.
Dismounting of motor unit
1. Take off 2 carbon brushes.
2. Take off the 4 screws on the motor housing and 3 screws on the handle.
3. The motor housing with handle can be dismounted from the gear housing L.
4. Armature can be dismounted from the motor housing.
Mounting of vise
1. In view of operator, vise nut has to be mounted in the following conditions.
-The head, left seide.
-The thin part, below.
2. Mount the pin 16 in the groove part of guide plate.
3. Install one of the chain ring between the screw guide and the base as illustrated below.
4. Fasten the screw guide on the base with the screws.
4 screws on the motor housing
3 screws, Handle R and L
3 screws, Handle R and L
Handle L
Lock off botton
Lock off lever
Switch
Hunger
Switch lever
The thin part
The head
pin 16
guide plate
screw guide
Vice nut
screw M8
chain
