Makita LC1230 Technical Information

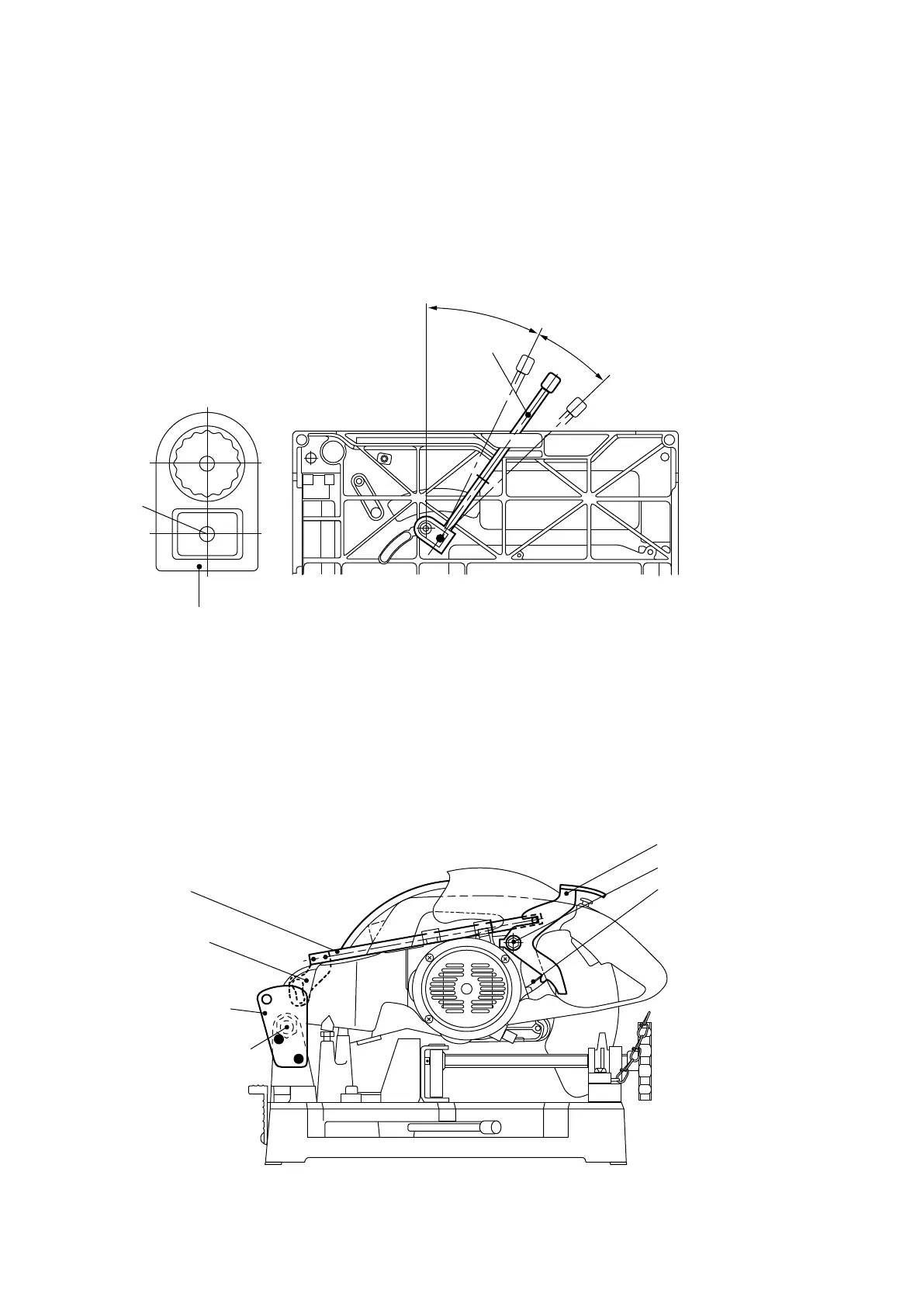

Mounting of lever rod 10
1. Install rubber pin 4 on the lever holder as for as it will go.
2. Fastening torque for hex nut M10-17 must be 450kgfcm with torque wrench 1R223,
ratchet head 1R224 and 17mm1. Adjust box wrench.
3. Install the lever rod 10 in the area illustrated below.
Adjusting for LC1230 with safety lock system
1. Adjust with hex bolt M6x16 so that the lock lever can return to the lock point from
the every working position smoothly.
2. Fastening torque for hex socket head bolt must be 80kgfcm.
holder for
rubber pin 4
lever holder
lever rod
25
20
hex socket head bolt
stopper plate
lock plate
rod 12
lock lever
hex socket head bolt
compession spring

Makita LC1230 Specifications

General

Blade bore	25.4 mm
Blade diameter	304.8 mm
Idle speed (max)	1300 RPM
Sound power level	115 dB
Cutting depth (45º)	88.9 mm
Cutting depth (90º)	114.3 mm
Sound pressure level	107 dB
Saw blade included	Yes
Diamond disc	-
Cutting capacity 0°	100 x 100 mm
Cutting capacity 45° miter	100 x 85 mm
Power source	AC

Weight and Dimensions

Depth	514.35 mm
Weight	19300 g
