Makita LS1040F Technical Information

Repair
P 2 / 8

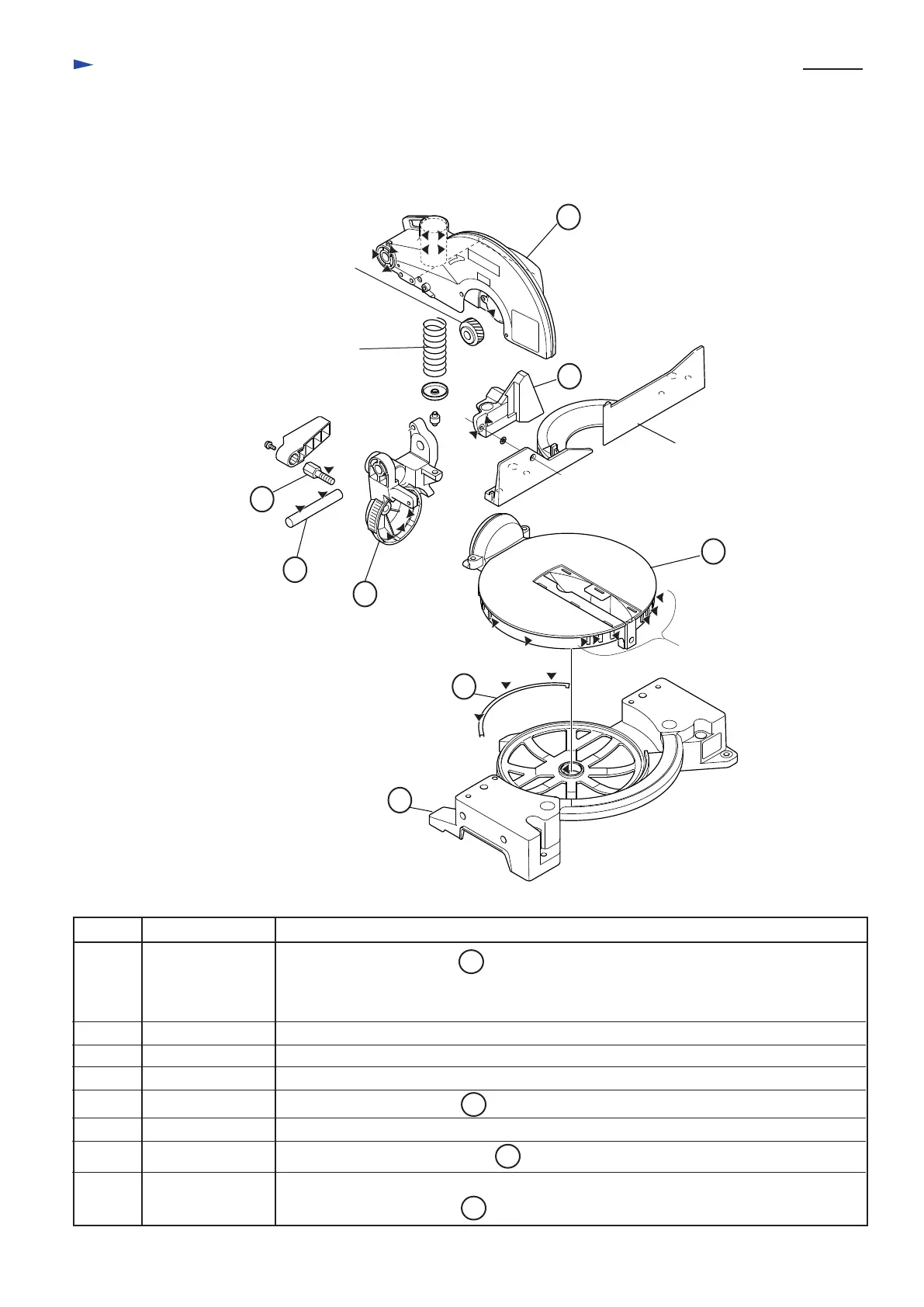

< 1 > Lubrication
Apply MAKITA grease N. No.1 to the following portions marked with black triangle to protect
parts and product from unusual abrasion.
51
72
56
81
87
71
69
Guide rule
86
86
Compression
spring 28
Item No. Parts The portion to be lubricated
51 Blade case
Slide plate
Turn base
56 Sub fence The pivot portion where contacts with guide rule.
The pivot portion where accepts 87 turn base.
69 Hex bolt M10 The threaded portion.
71 Rod 16 The whole portion
The whole portion
72 Arm
Base
The portion where contacts 87 turn base.
The portion which contacts 72 arm.
The cylindric portion to which compression spring 28 is inserted.
The space for helical gear : Apply here by approx. 12g ( 0.42 oz.).
The portion where contacts 86 base.
The notch portion for setting miter angle.
Helical gear
81
87
Notch
portion
< Note > Take off saw blade from the machine for your safety, before repairing or maintenance !
