Makita LS1040F Technical Information

Repair
P 3 / 8

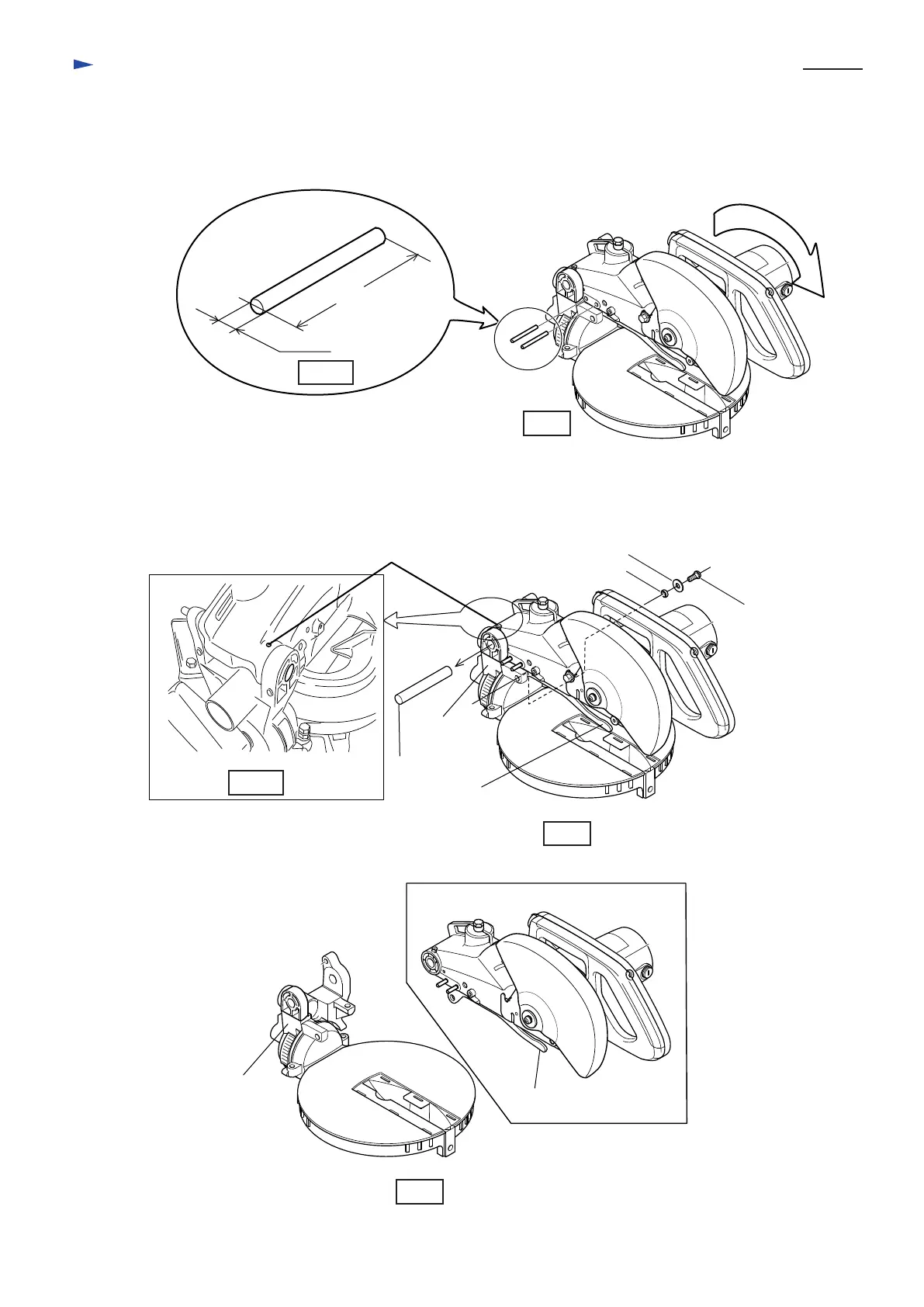

< 2 > Removing compression spring 28 and motor unit
1) Holding the motor unit at the lowest position, insert 2 pcs. of bars into the side holes of blade case. See Fig. 1.
( The size of bars are 125 - 130mm in length and 4 - 6.5mm in diameter as illustrated in Fig. 1A.)
So, compression spring 28 and spring holder cannot spring out of blade case, when separating blade case from
arm.
125 - 130mm
4 - 6.5mm
2) Disconnect the linkage of link plate with arm by unscrewing hex socket button head screw M6. See Fig. 2.
Hex socket head bolt M6x10 is located on blade case for fixing rod 16 which works as an axis. Loosen this
hex socket head bolt. See Fig. 2A. And take off rod 16 as illustrated in Fig. 2.
3) Separate motor unit from arm. See Fig. 3.
Fig. 1.
Fig. 1A
Hex socket button
head bolt M6
Flat washer 7
Ring 7
Link plate
Link plate
Arm
Fig. 2
Hex socket head
bolt M6x10
Rod 16
Fig. 2A
Arm
Motor unit
Fig. 3

Makita LS1040F Specifications

General

Input power	1650 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Dust bag included	Yes
Idle speed (max)	4600 RPM
Miter setting (left)	45 °
Miter setting (right)	52 °
Cutting capacity 0°	93 x 95 mm
Cutting capacity 45° miter	93 x 67 mm

Weight and Dimensions

Weight	12600 g
