Repair
P 6 / 8
< 5 > Fastening of hex lock nut M8x13
Turn base has to be so fastened and adjusted with hex lock nut M8x13 that it can turn without trembling.
See Fig. 16.
For adjusting and fastening, employ socket wrench 13 which is supplied with this product.

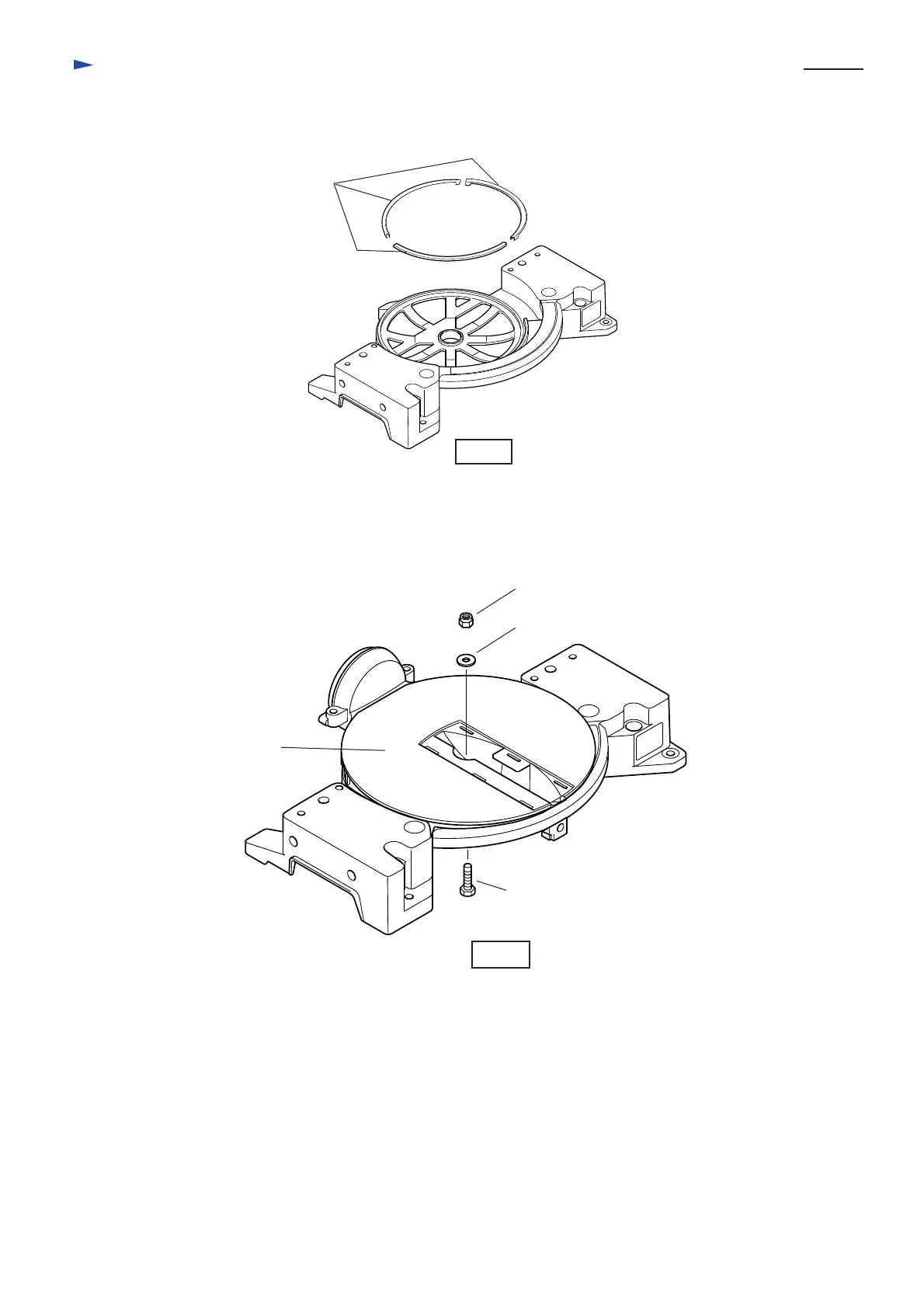

< 4 > Mounting slide plates
Aligning with the circle portion (on which turn base slides.) of base, mount slide plates as illustrated in Fig. 15.
And then, apply MAKITA grease N. No.1 to the slide plates.
Fig. 15
Slide plates
Hex lock nut M8x13
Hex bolt M8x30
Flat washer 8
Turn base
Fig. 16
