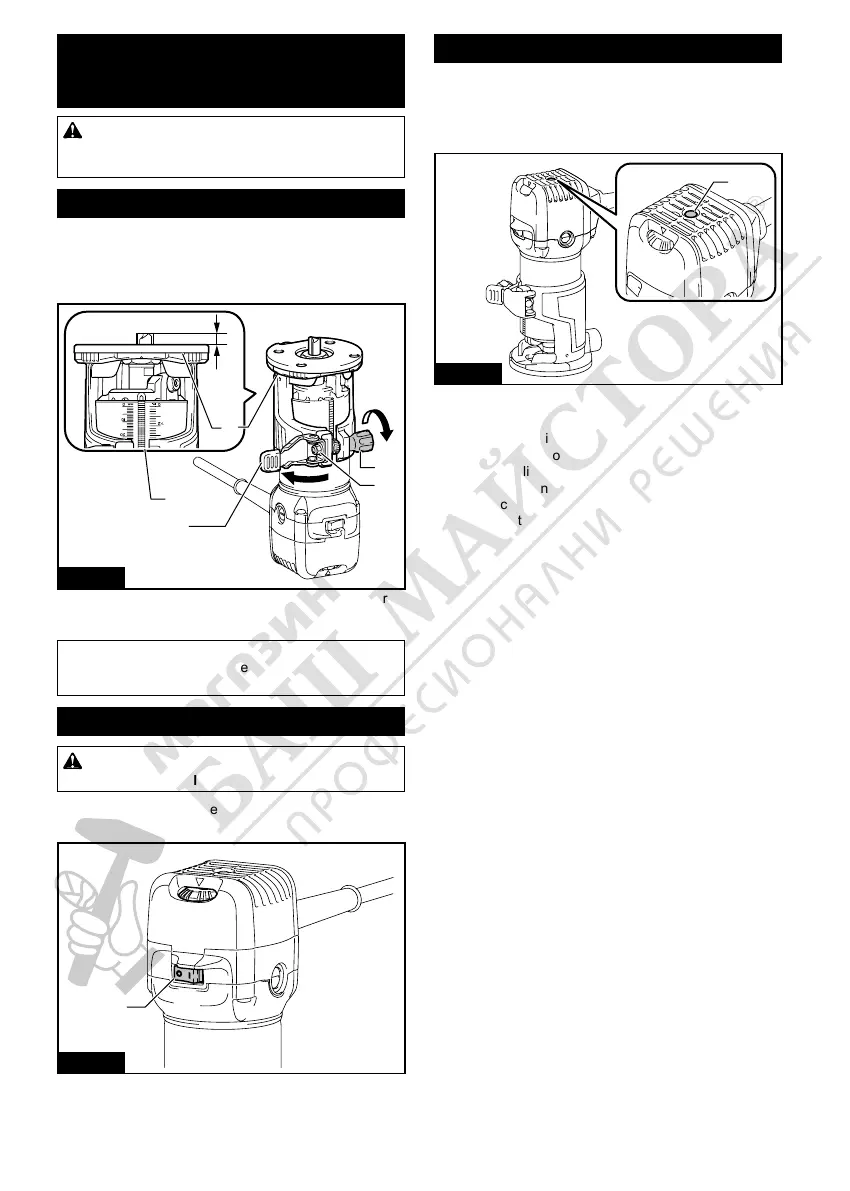

5 ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o and unplugged before adjusting or
checking function on the tool.
Adjusting trimmer bit protrusion
To adjust the bit protrusion, open the locking lever and
move the base up or down as desired by turning the
adjusting screw. After adjusting, close the locking lever
rmly to secure the base.
1
3
4
5
6
2
Fig.1
► 1. Base 2. Scale 3. Bit protrusion 4. Locking lever
5. Adjusting screw 6. Hex nut
NOTE: When the tool is not secured even if the lock-
ing lever is closed, tighten the hex nut and then close
the locking lever.
Switch action
CAUTION: Before plugging in the tool, always
be sure that the tool is switched o.
To start the tool, press the I side of the switch. To stop
the tool, press the O side of the switch.
1
Fig.2
► 1. Switch
Electronic function
The tool is equipped with the electronic functions for
easy operation.
Indication lamp
1
Fig.3
► 1. Indication lamp
The indication lamp lights up green when the tool is
plugged. If the indication lamp does not light up, the
mains cord or the controller may be defective. The indi-
cation lamp is lit but the tool does not start even if the
tool is switched on, the carbon brushes may be worn
out, or the controller, the motor or the ON/OFF switch
may be defective.
Unintentional restart proof
The tool does not start with the I side of the switch
pressed even when the tool is plugged.
At this time, the indication lamp blinks in red and shows
the unintentional restart proof device is on function.
To cancel the unintentional restart proof, press the O
side of the switch.
Soft start feature
Soft-start feature minimizes start-up shock, and makes
the tool start smoothly.
Constant speed control
Electronic speed control for obtaining constant speed.
Possible to get ne nish, because the rotating speed is
kept constant even under the loaded condition.
