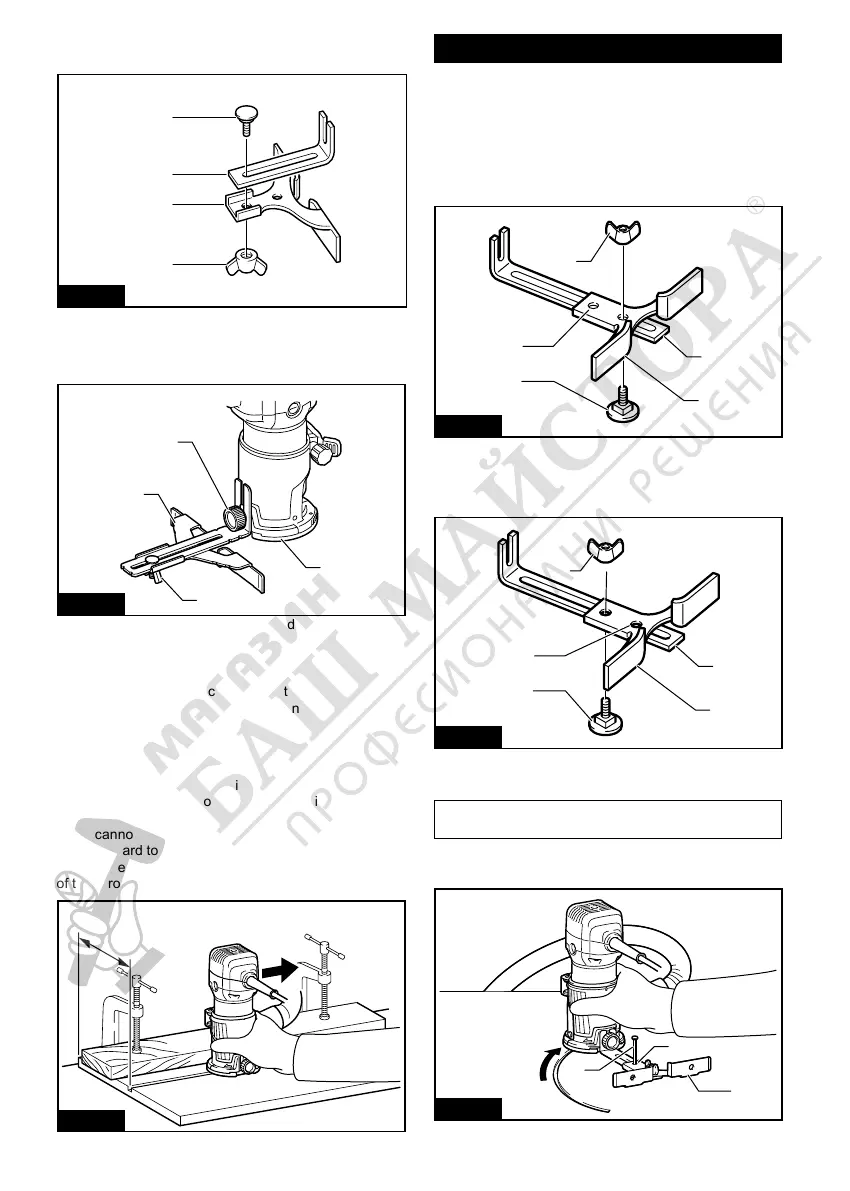

9 ENGLISH
1. Attach the guide plate to the straight guide with
the bolt and the wing nut.
1
2
3
4
Fig.17
► 1. Bolt 2. Guide plate 3. Straight guide 4. Wing nut
2. Attach the straight guide assembly with the clamp-
ing screw.
1
2
3
4
Fig.18
► 1. Clamping screw 2. Straight guide 3. Wing nut
4. Base
3. Loosen the wing nut on the straight guide assem-
bly and adjust the distance between the trimmer bit and
the straight guide. At the desired distance, tighten the
wing nut securely.
4. When cutting, move the tool with the straight guide
ush with the side of the workpiece.
If the distance between the side of the workpiece and
the cutting position is too wide for the straight guide, or
if the side of the workpiece is not straight, the straight
guide cannot be used. In this case, rmly clamp a
straight board to the workpiece and use it as a guide
against the trimmer base. Feed the tool in the direction
of the arrow.
Fig.19
Circular work
Circular work may be accomplished if you assemble the
straight guide and guide plate as shown in the gures.
Min. and max. radius of circles to be cut (distance between
the center of circle and the center of trimmer bit) are as follows:
Min.: 70 mm
Max.: 221 mm
For cutting circles between 70 mm and 121 mm in radius
1
2
3
4
5
Fig.20
► 1. Wing nut 2. Guide plate 3. Straight guide
4. Center hole 5. Bolt
For cutting circles between 121 mm and 221 mm in radius
1
2
3
4
5
Fig.21
► 1. Wing nut 2. Guide plate 3. Straight guide
4. Center hole 5. Bolt
NOTE: Circles between 172 mm and 186 mm in
radius cannot be cut using this guide.
1. Align the center hole in the straight guide with the
center of the circle to be cut.
2
1
3
Fig.22
► 1. Nail 2. Center hole 3. Straight guide
To Next Page
