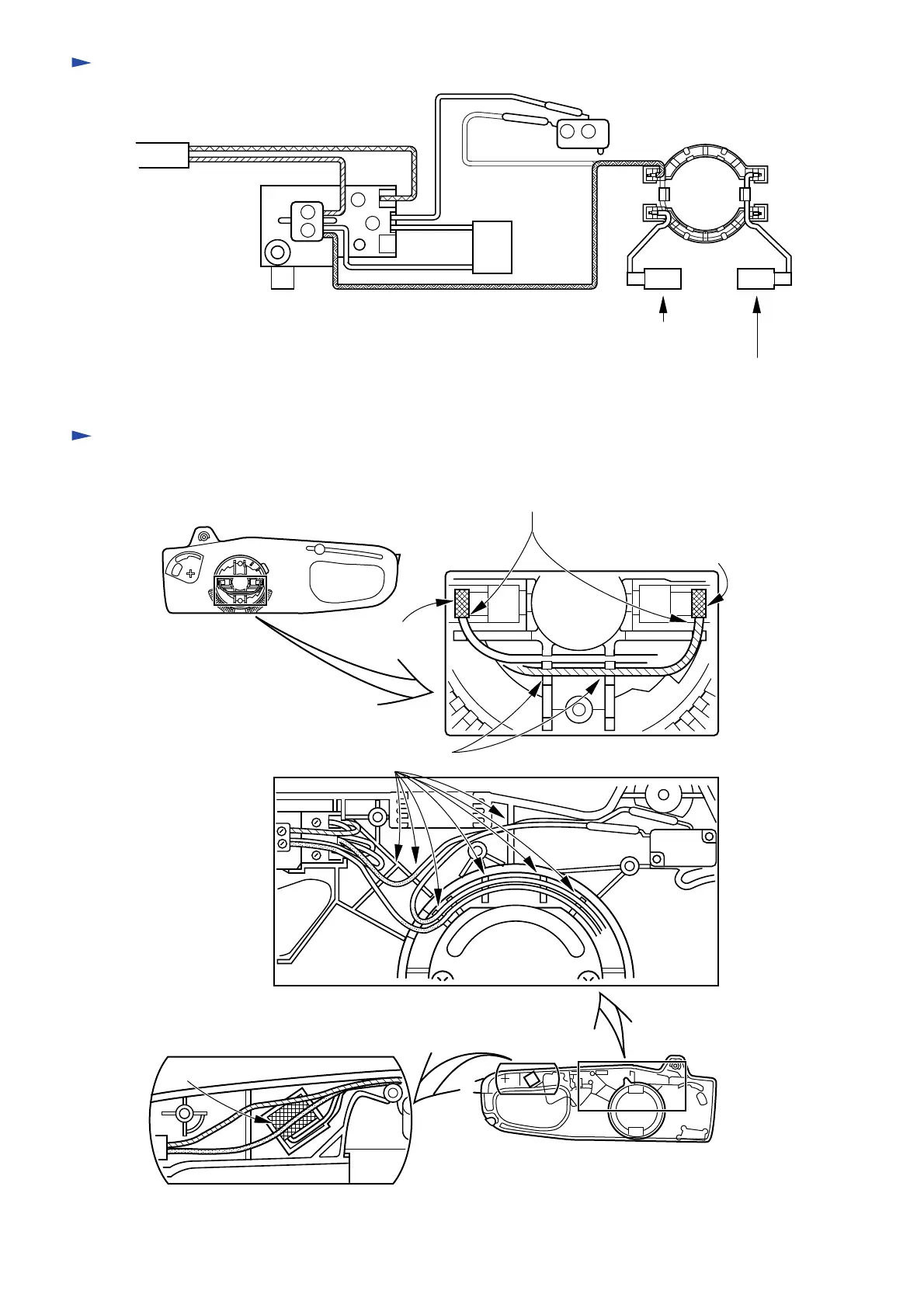

Wiring diagram
Details of wiring
Power supply cord
Mains switch
Noise
suppressor
Sub-switch
Support complete
Brush holder
(Front handle side)
Brush holder
(Rear handle side)
P1
P2
Black
Black
Black White
Orange
2
3
5
4
4
1
Contain noise suppressor as shown in the figure.
Noise suppressor
Receptacle
Connect receptacle as shown in the figure.
Receptacle
Fix lead wires by the lead holders.
