[2] LUBRICATION
[1] NECESSARY REPAIRING TOOLS

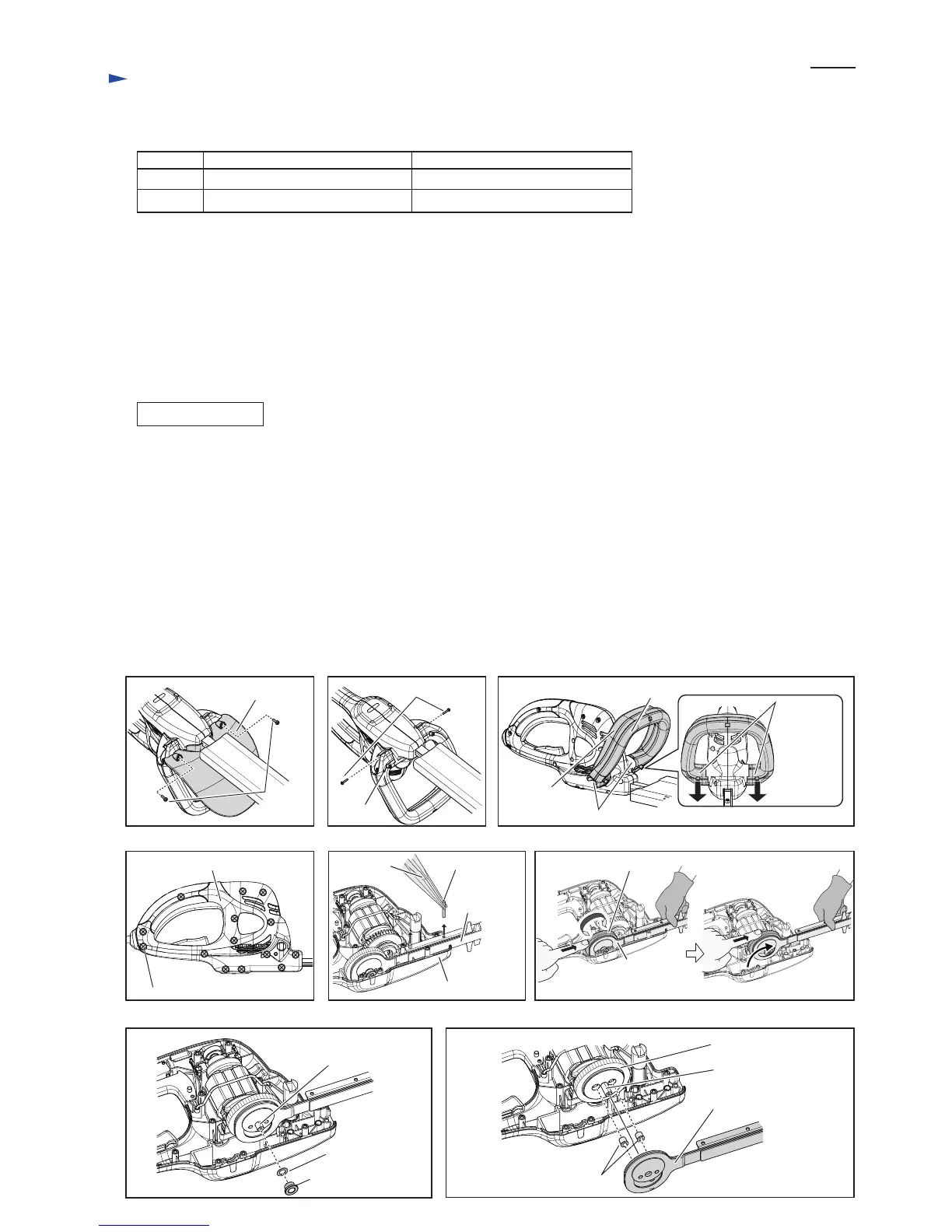

DISASSEMBLING
Fig. 1
Fig. 4 Fig. 5 Fig. 6
Fig. 2 Fig. 3
Fig. 7 Fig. 8
Code No. Description
1R035 Bearing setting plate 15.2 Removing Helical gear 67
1R269 Bearing extractor Removing Bearing box complete
Use for
Protector
Pin 4
Helical gear 67
Pliers
Front grip
Front
grip
Housing R
Plane bearing 8
Flat washer 8
Spindle
Spindle
Screws (2pcs.)
Shift Front grip ends out.
Housing L
Shear blade complete
Helical gear 67
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
Repair
Apply Makita grease N. No.2 to the following portion to protect parts and product from unusual abrasion.
(1) Gear room (5g: Refer to Fig. 6.)
(2) Crank portion of Shear blade complete (2g: Refer to Fig. 8)
(3) Contact portion of Spindle bottom end and Plan bearing 8 (a little: Refer to Fig.8)
(1) Turn the machine upside down and keep it in a horizontal position using Front handle. (Fig. 1)
(2) Remove two Screws and Protector. (Fig. 1)
(3) Remove two Screws on Front grip (Fig. 2) and then push both ends of Front grip with Switch lever B. (Fig. 3)
Front grip with Switch lever B can be separated from Housing set.
(4) Remove fourteen Screws and Housing R (Fig. 4)
(5) Remove Pin 4 (2pcs) from Shear blade complete. (Fig. 5)
(6) Turn Helical gear 67 to the direction of Blade top, and Helical gear 67 itself and Blade crank portion will rise up
from the original position.(Fig. 6)
Note:
Use Blade cover and gloves when you hold Shear blade complete so as not to pinch your finger.
(7) Remove Plane bearing 8 and Flat washer 8 from Spindle. (Fig. 7)
Shear blade complete and Nylon sleeve 5 (2pcs) can be removed from Spindle and Helical gear 67. (Fig. 8)
Switch
lever B
Both ends
of Front
grip
portion
Screws
(2pcs.)
Shear
blade
complete
Shear blade
complete
Nylon sleeve 5 (2pcs.)
Tapping screw 4x18
[3] DISASSEMBLY/ASSEMBLY
[3] -1. Shear blade complete and Front grip
P 2/ 7
