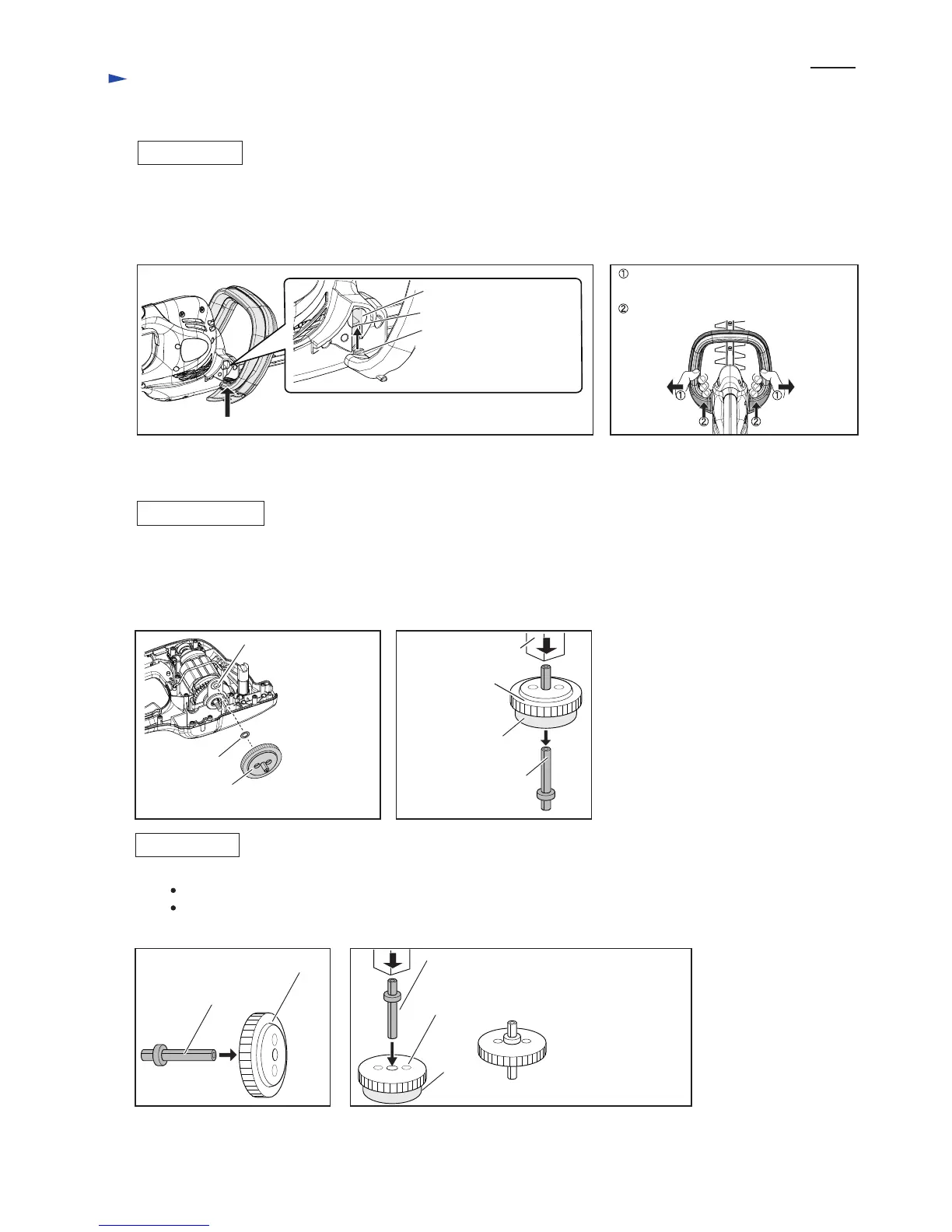

[3] DISASSEMBLY/ASSEMBLY
[3] -1. Shear blade complete and Front grip (cont.)
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Helical gear 67
Fig. 9
Fig. 11
Fig. 13 Fig. 14
Fig. 12
Fig. 10
DISASSEMBLING
ASSEMBLING
ASSEMBLING
Take the disassembling step in reverse.
Note: • Be sure to set Flat washer 8 and Nylon sleeve 5 in place. (Figs. 7 and 8)
• Align the protrusions of Switch lever B to the slots of Housing set and shift them up (Fig. 9).
Fix them into the depressions by enlarging Front grip.(Fig. 10)
(1) Remove Shear blade complete, Nylon sleeve 5 (2pcs), Flat washer 8 and Plane bearing 8. (Refer to pervious page.)
(2) Remove Helical Gear 67 and Spindle as an assembled part, and then remove Flat washer 8 between Helical gear 67
and Bearing box complete. (Fig. 11)
The assembled part can be disassembled by using 1R035 and Arbor press. (Fig.12)
Take the disassembling step in reverse.
Note: Be sure to pass Flat washer 8 through Spindle between Gear and Bearing box complete. (Fig. 11)
Spindle and Helical gear 67 are directional in assembling. (Figs. 13 and 14)
Depression of Housing R
Protrusion on the end of
Switch lever B
Enlarge both ends of Front grip
portion carefully.
Shift up their ends to the depressions.
an assembled part
of Helical gear 67 and Spindle
The assembled part
of Helical gear 67
and Spindle
Flat washer 8
Step of Gear
Spindle
Spindle
1R035
1R035
Helical gear 67
Arbor press
Bearing box complete
Spindle
Flat surface
of Helical gear 67
Slot
Repair
P 3/ 7
