Makita UH4260 Series Technical Information

[3] DISASSEMBLY/ASSEMBLY
[3] -5. Switch lever B
DISASSEMBLING
Fig. 19
Fig. 20
ASSEMBLING

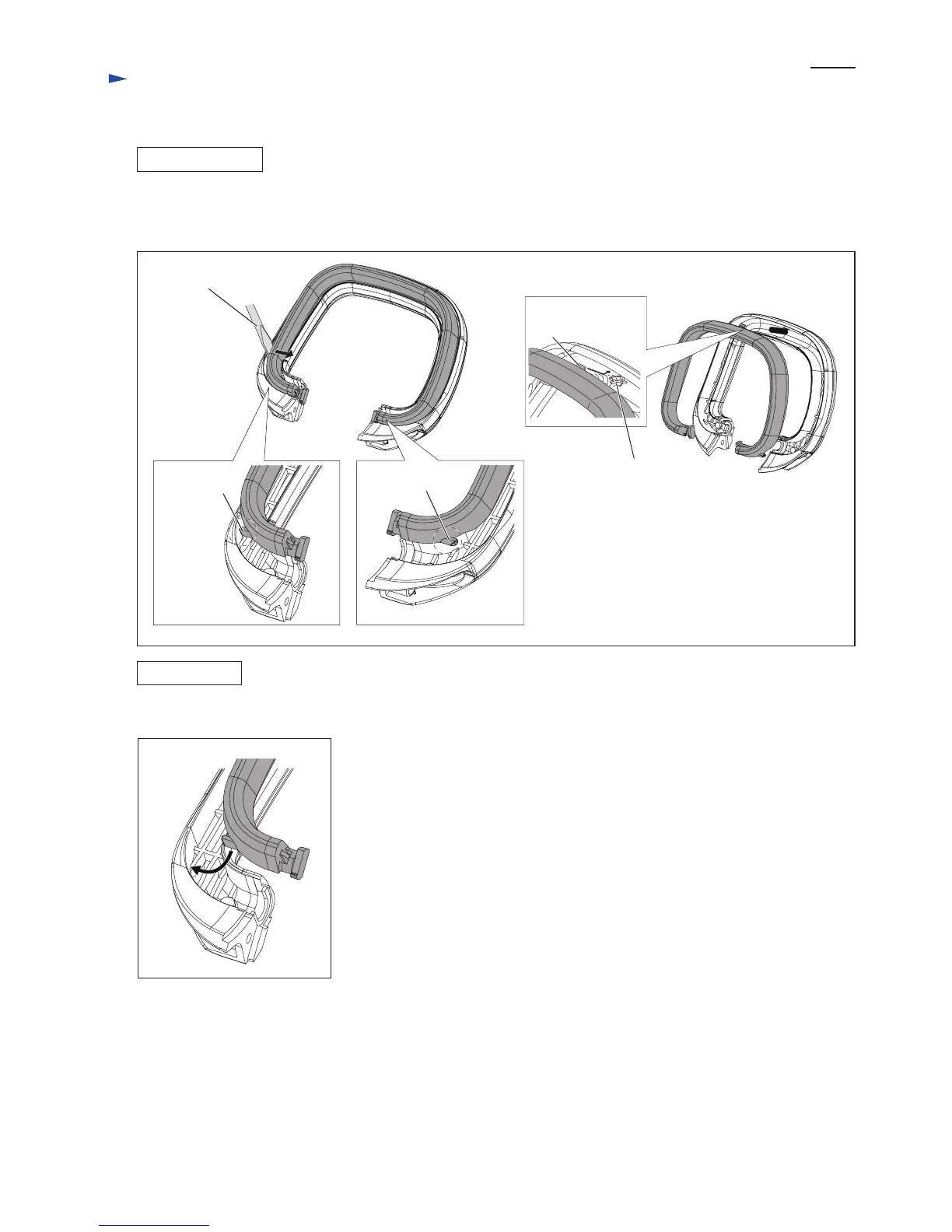

Disassemble Switch lever B from Front grip by removing Tabs of Switch lever B one by one with Slotted screwdriver.
(Fig.19)
Take the reverse steps of disassembling (Figs. 19 and 20)
1. Tab of
Switch
lever B
Slotted screwdriver
2. Tab of Switch
lever B
3. Tab of
Switch lever B
Compression spring 5
Repair
P 5/ 7
