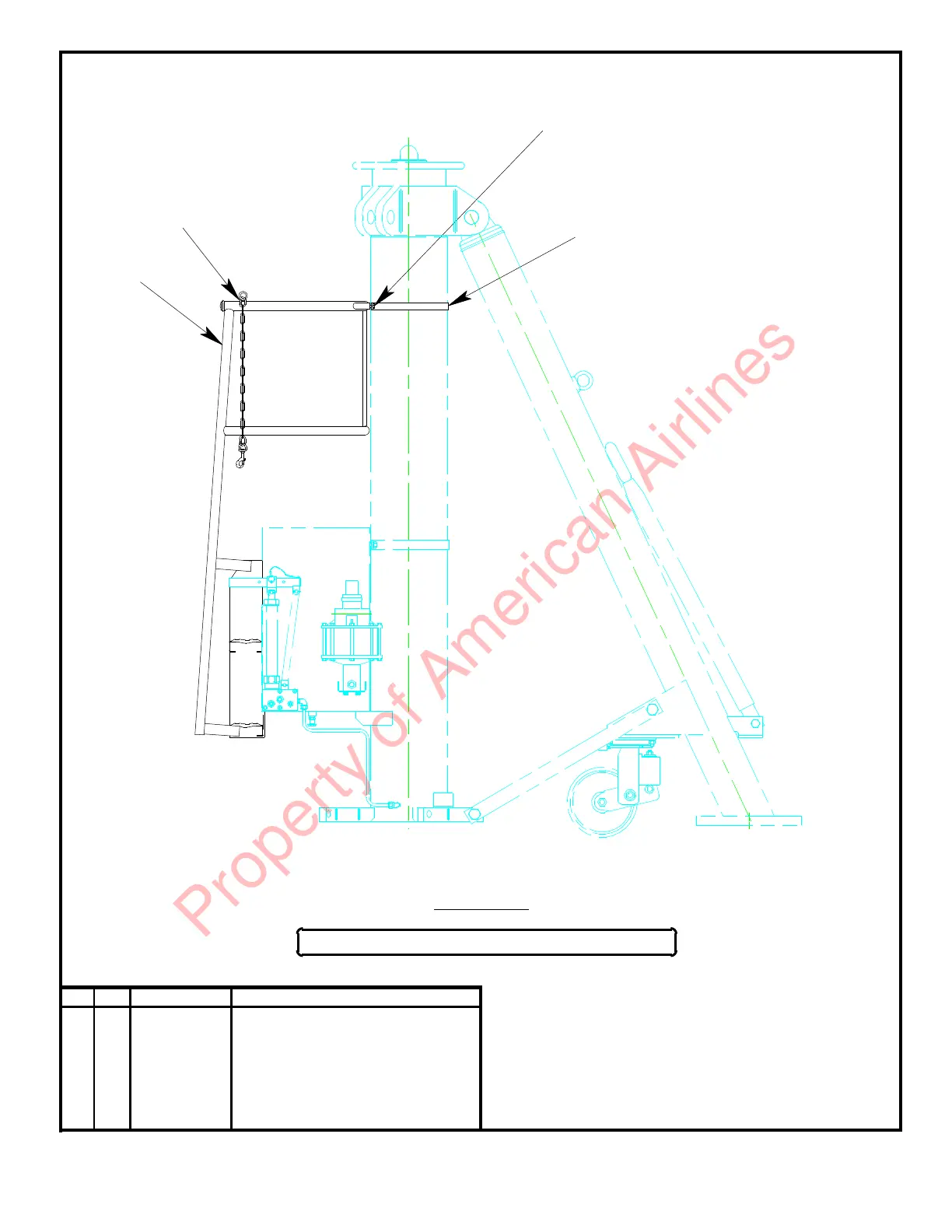

78567 LADDER ASSEMBLY KIT
FIGURE 13
- 27 -
LADDER
SAFETY CHAIN ASSEMBLY
RAIL STRAP
HHCS, 3/8-16 x 1" LG
HHCS, 3/8-16 x 1 1/4 LG
FLAT WASHER, 3/8
SPLIT LOCKWASHER, 3/8
NO. QTY PART NO. DESCRIPTION
1 1 79575
2 1 76378
3 1 79560
4 6 321-011
5 2 321-008
6 8 361-001
7 8 363-003
1
4
6
7
2
3
5
6
7
