Procut 2600TC & 3000TC — User Manual
Section 3 Assembly to tractor
Attaching mower to tractor
It is designed to mount on Category II, 3-point hitch tractors. Two double-acting hy-
draulic connection must be available on the tractor.

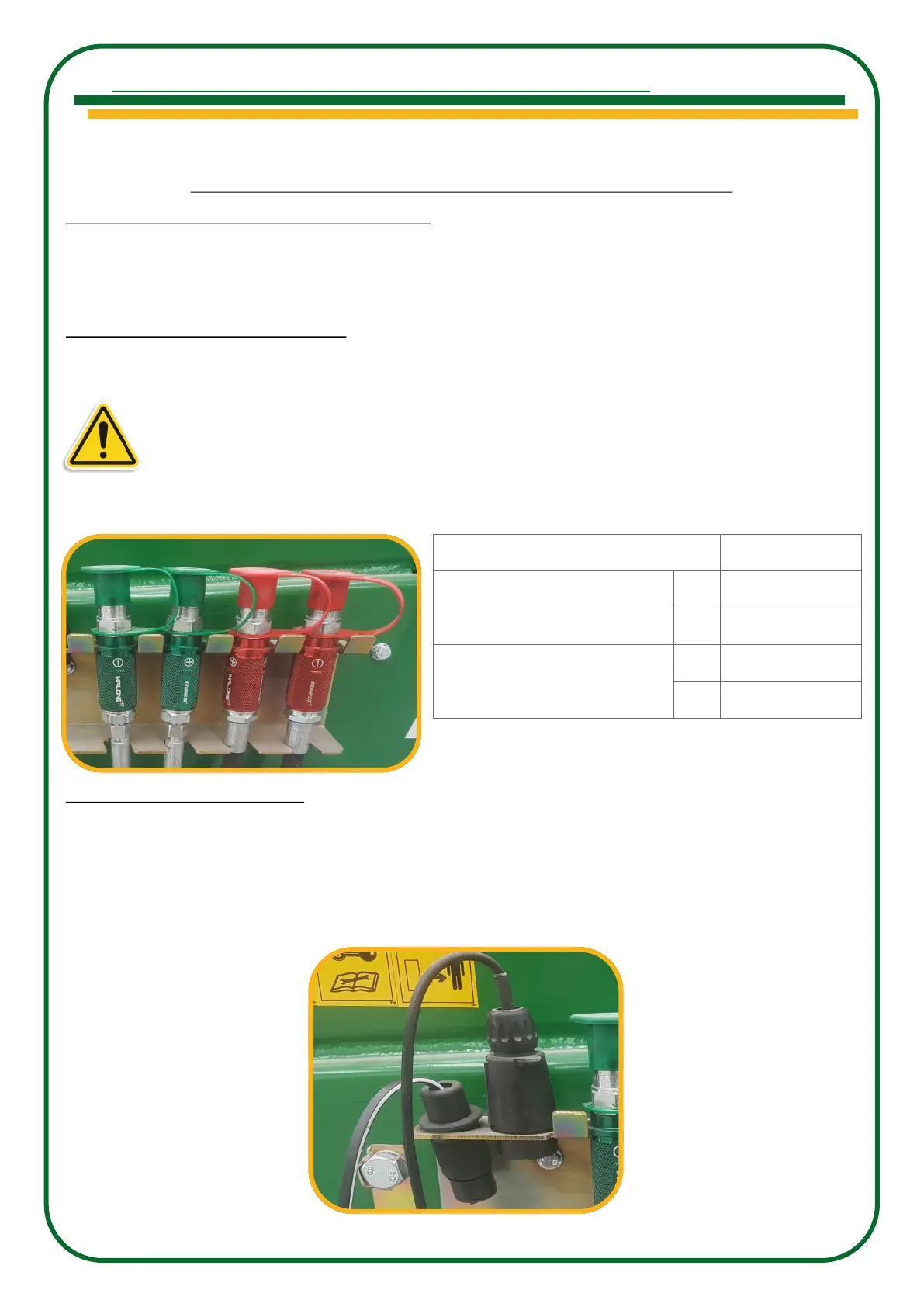

Hydraulic Connection
Keep hands and body away from pressurised hydraulic lines.
Hydraulic fluid under pressure can penetrate skin and cause serious injury.
Only connect hydraulic hoses only when system is depressurised.
Two double-acting hydraulic connection must be available on the tractor.
Function Hydraulic hose use for
Drawbar (Green)
+ Left
- Right
Cutting unit (Red)
+ Up
- Down
Light Connections
The mower comes with two connections.
• Connection 1—7 Pin socket for rear lights, indicators and side white lights
• Connection 2—a 3pin 12V socket used for the spot light that is located over the
cutter bed
