Procut 2600TC & 3000TC — User Manual
Section 6 Adjustments

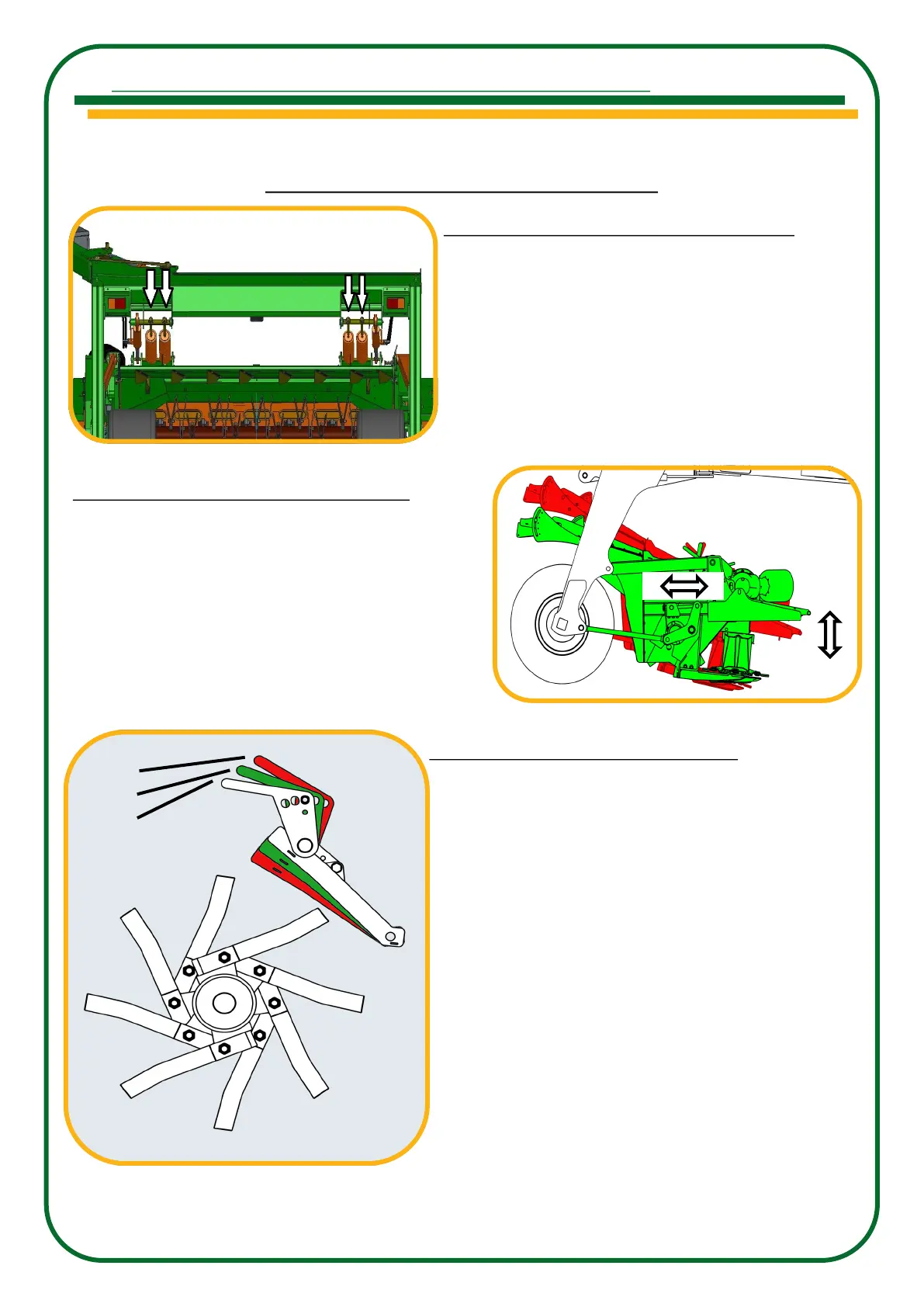

GROUND PRESURE ADJUSTMENT
The ground pressure of the mower beam is
adjusted by 4 tension springs, 2 on the left
and 2 on the right of the mower. The diago-
nal pull of the machine is therefore kept to a
minimum.
The spring tension is adjusted by means of
threaded spindles on each spring.
ADJUSTING CUTTING HEIGHT
The cutting height is adjusted by turning the
adjustment threaded bar. First remove the
locking handle and turn the adjustment bar
clockwise to lower cutter bar, anticlockwise
to raise cutter bar. Lock bar in position us-
ing handle.
Adjusting Conditioning
The mower conditioning can be adjusted
with three different settings. To adjust the
settings, pull back the locking pin, and move
the lever to the desired position.
Position 1 is for light crops/ swarthing
Position 2 is for moderate crops
Position 3 is for heavy crops/ spreading
