12

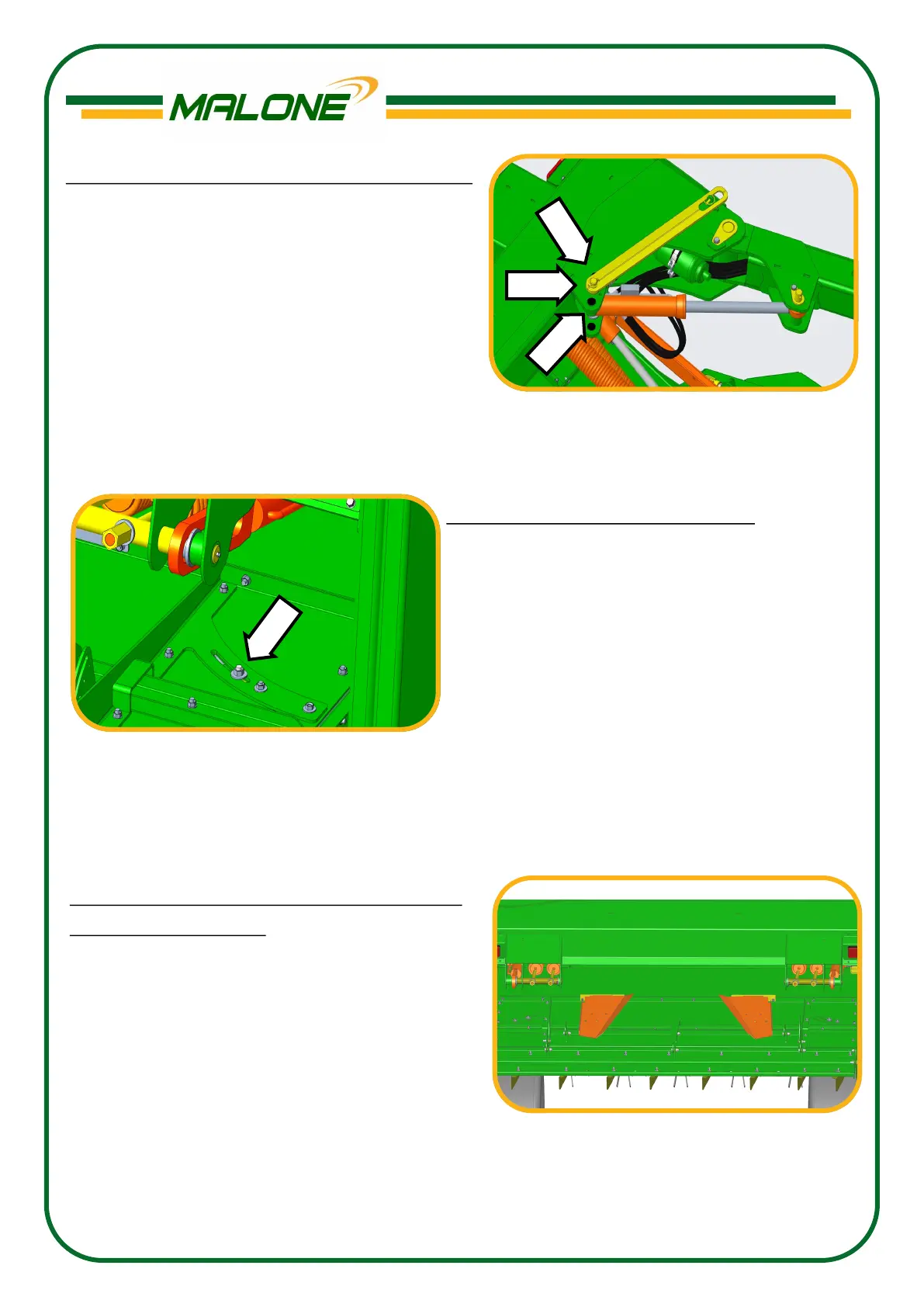

ADJUSTING SWARTH WIDTH
The width of the swarth’s can be adjusted
by loosening the M10 nut on top of the cut-
ting unit and slide the door inwards or out-
wards to the desired positions.
SWITCHING BETWEEN SWARTH AND
SPREADER VANES
The swarth gates can be removed from in-
side the cutting unit by removing the retain-
ing M10 nut on the top of the frame and the
door can be placed and bolted onto top of
the mower for future use.
ADJUSTING OFF CENTRE POSITION
The off centre position in relation to the
centre of the tractor can be simply adjusted
by moving the pin holding the drawbar ram.
Position 1 will draw the main body closer to
the tractor and position 3 would achieve the
maximum offset of mower compared to the
tractor.
1
2
3
