Procut 2600TC & 3000TC — User Manual

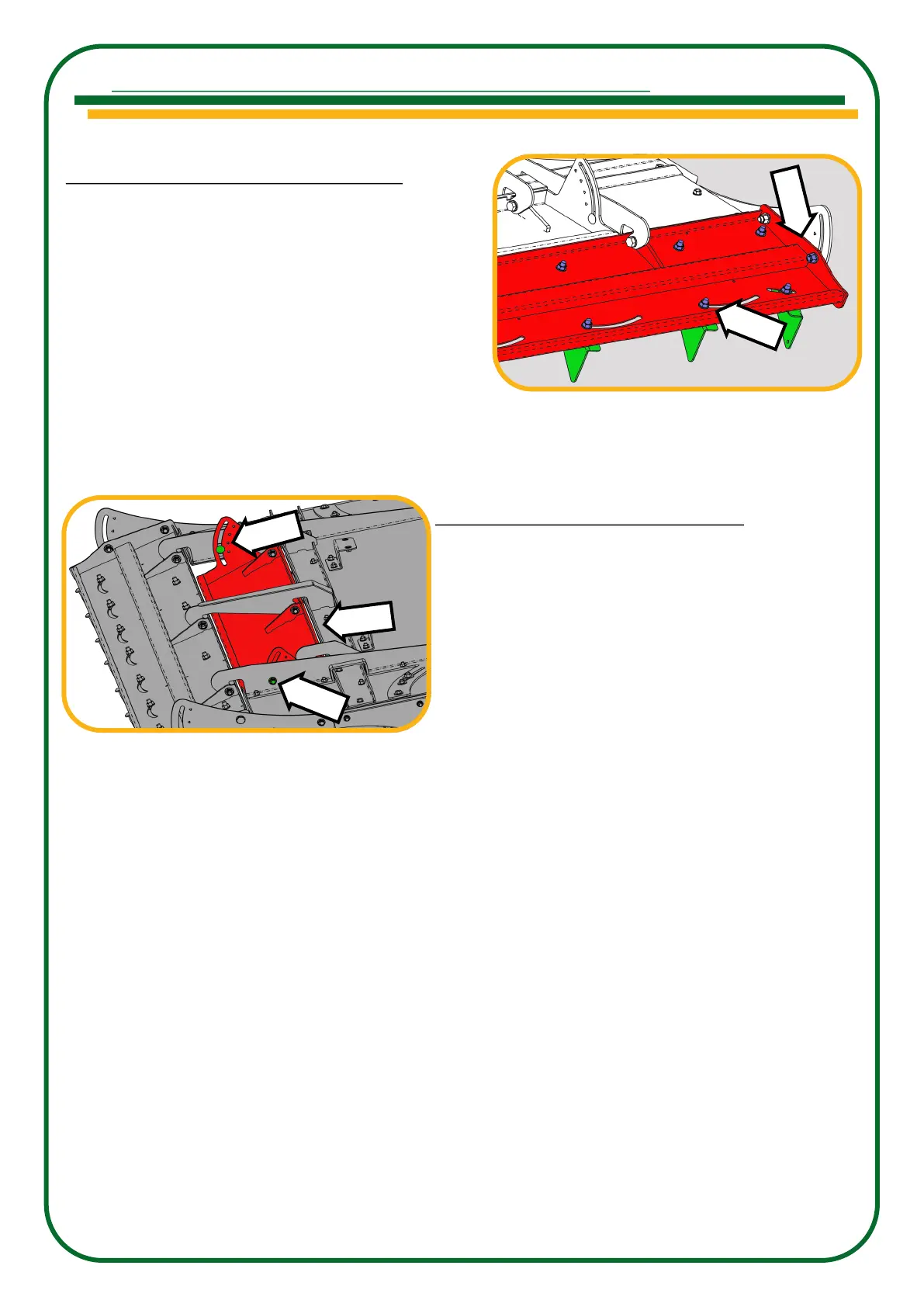

ADJUSTING SWARTH PLATE
The swarth plate is used to knock material to
the ground that is coming from the condition-
er. The angle of the material exiting can be
adjusted by loosing the two M10 nuts (1),
and adjust the plate (2) to the desired angle.
If the swarth plate is in the highest angle (flat
to the body), the material can be proceeded
onto the spreading vanes.
1
1
2
ADJUSTING SPREADER VANES
The vanes can he adjusted to desired direc-
tion to throw the grass in whatever direction.
Loosen the bolts (1) and set it to the desired
angle. The angle of which the grass is damp-
ened to the ground can also be adjusted by
loosening the 2 nuts indicated by 2. Also the
gate can be angled up to be out of the way of
the grass thrown from the conditioner.
1
2
