Malvern Mastersizer 3000 Manual

Maintenanc e
90
paper wrapping. Hold by ground edges of window.

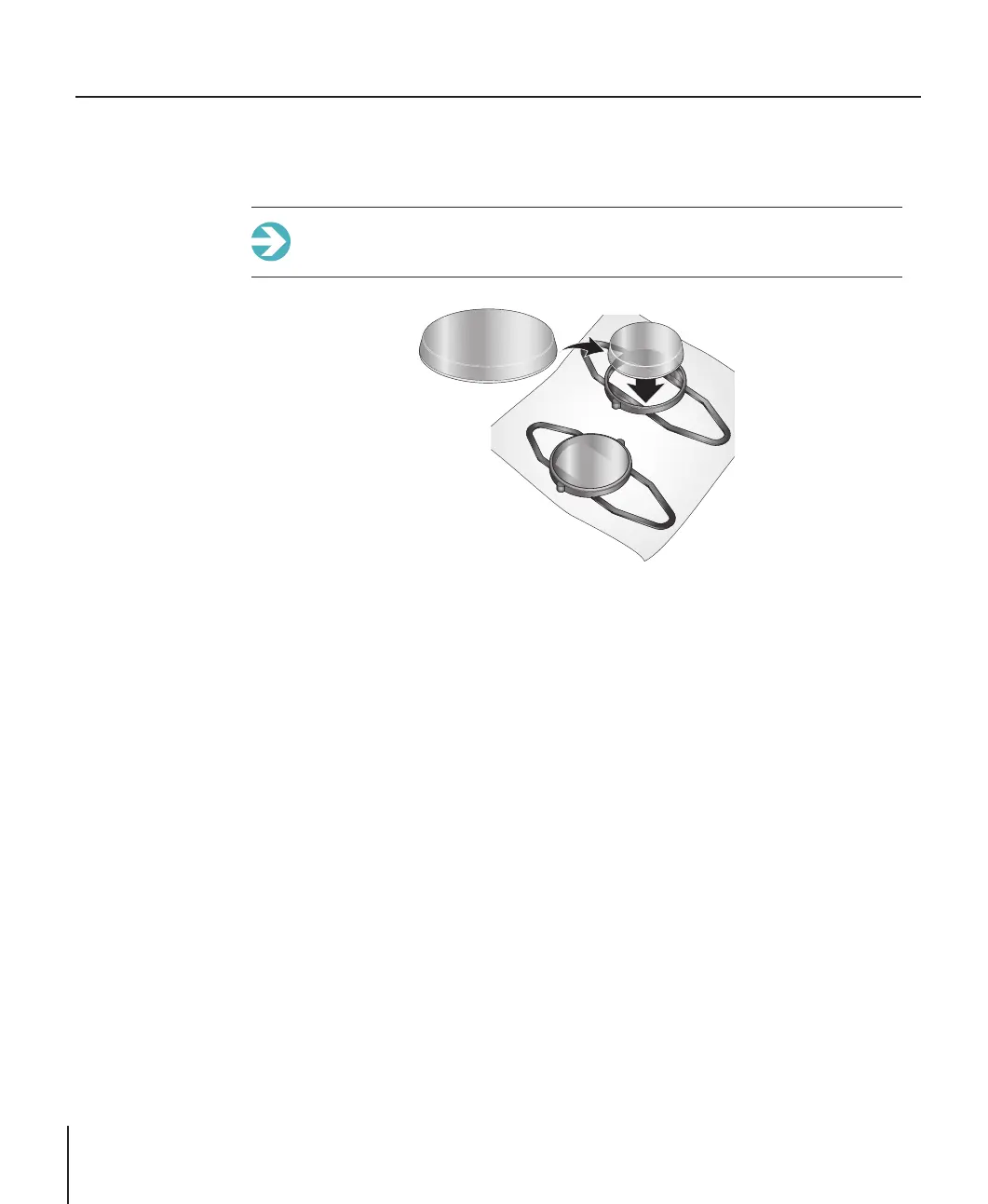

3. Insert the cell window in to the circular section of the seal.
Note: Make sure that the larger diameter faces down when inserted in to the
cell seal.
4. Place the wet cell cover plate on to a flat surface. The seal cavity must face up.
5. Hold the ends of the seal, and pick up the cell seal and window assembly. Turn it
over so that the circular section is faces downward. Place over the seal cavity of the
cover plate and line up the lugs on the seal with the cut-outs in the circular meas-
urement area of the cover plate, then place it carefully to rest on top of the plate
— do not insert the assembly yet.
6.
Without touching the exposed window face, push the circular section of the seal
into place in the measurement area of the cover plate and rock the seal and win-
dow down.
l
Push the seal/ window down at one end in the places indicated [C], then...
l
Repeat at the other end [B].
7. Repeat these steps until the window is fully inserted out in the measurement area.

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
