Malvern Mastersizer 3000 Manual

Maintenanc e
91
A
B

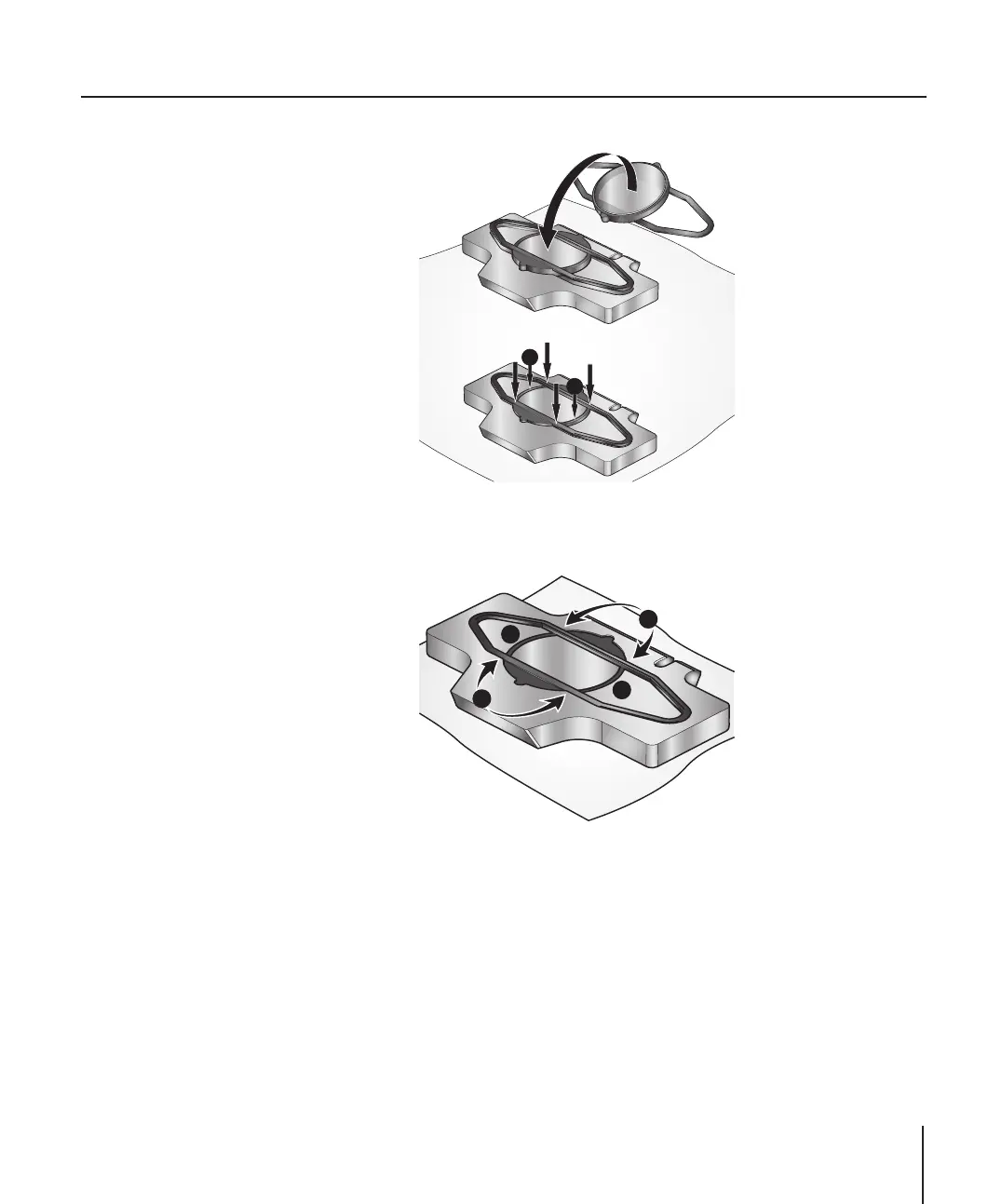

8. The seal in its fitted position.
A
A
B
B
9. Once finished:
l The circular section of the seal must be flush with the flat surface of the
measurement area of the cover plate and the glass. It cannot bulge out or
sit below the surface (A).
l Check that there are no gaps under the seal track where the seal crosses

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
