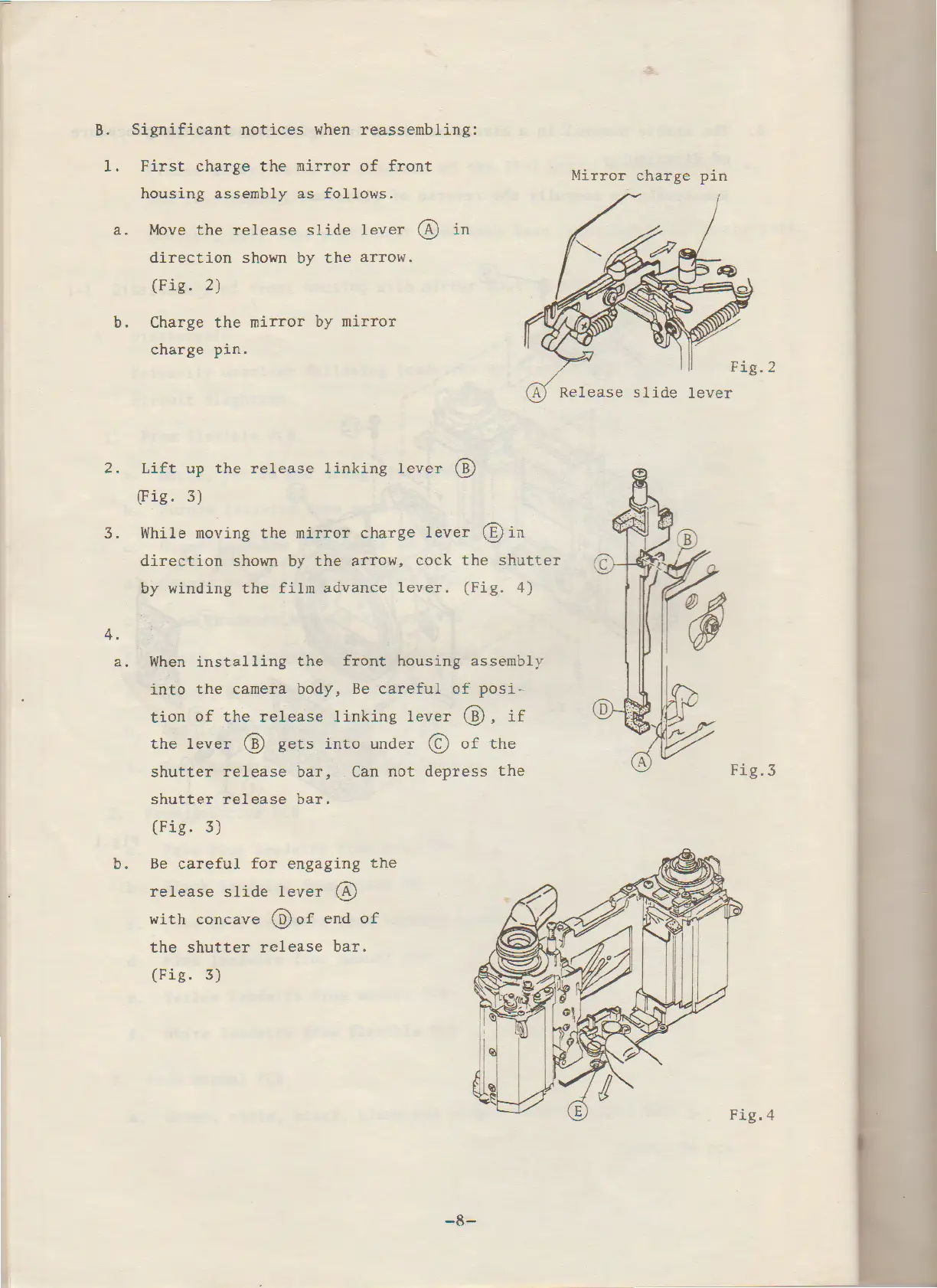

B. Significant notices when reassembling:
l. First charge the rnirror of front
housing assernbly as follo~s.
a. ~1ove the release slide lever @ in
direction shown by the arrow.
(Fig. 2)
b. Charge
the rnirror by rnirror
charge pin .
m rror chargc pin
Fig.2
Release slide lever
2. Lift up the release linking lever QD
(Fig. 3)
3. While moving the rnirror charge lever @in
direction sh0\\11 by the arro\\, cock the shutter
by winding the film advance lever. (Fig. 4)
4.
a. When installing the front housing assernbly
into the carnera body, Be careful of posi -
tion of the release linking lever @, if
the lever @ gets into under © of the
shutter release bar, Can not depress the
shutter release bar.
(Fig. 3)
b. Be careful for engaging the
release slide lever @
with concave @ of end of
the shutter release bar.
(Fig. 3)
-8-
Fig.3
Fig . 4
