Limiting values

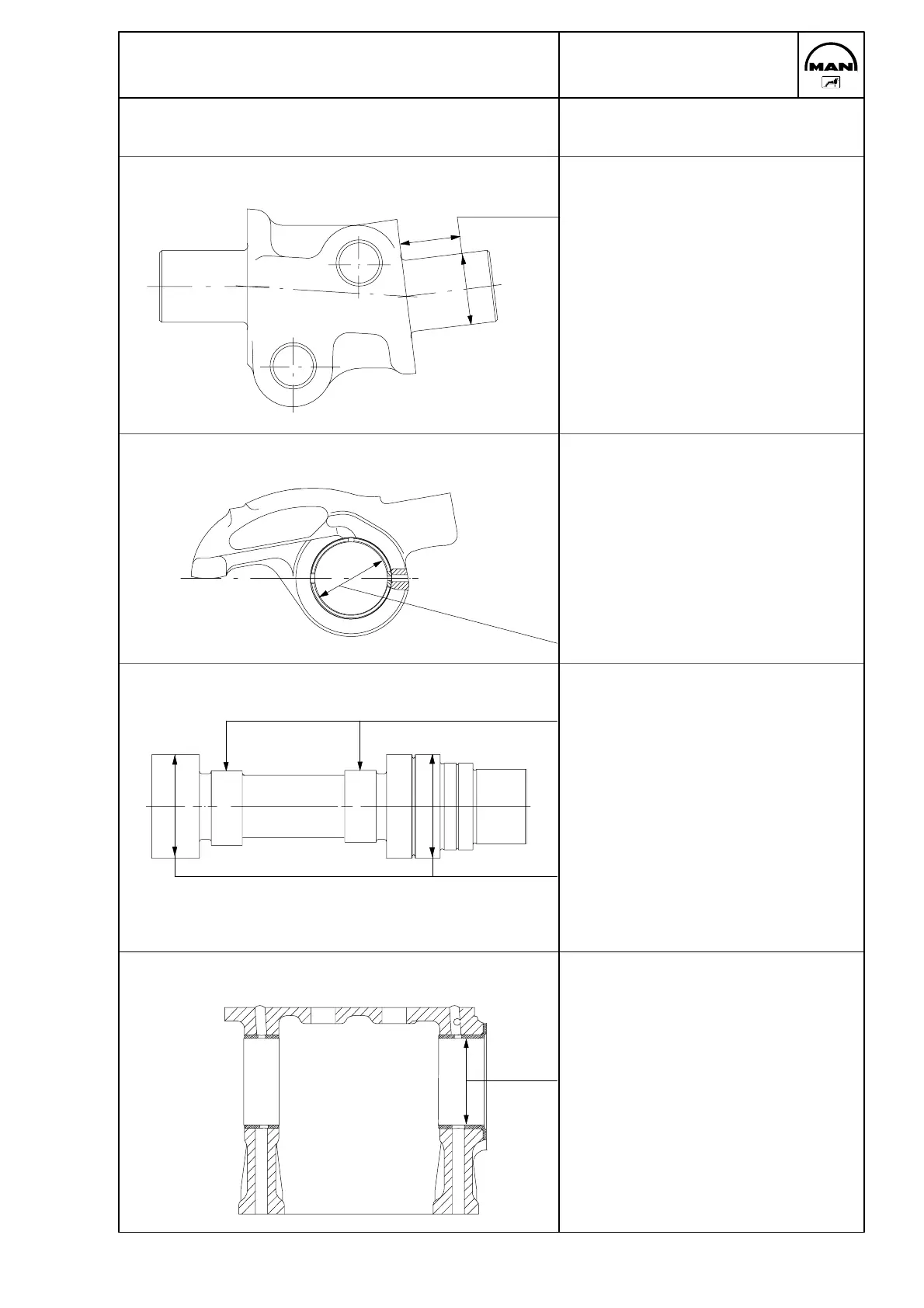

Service Data
Dimensions
141
Valve gear
Rocker arm bearing pedestal
24,967-24,980 mm
Rocker arms
Rocker arm radial clearance:
0,025-0,054 mm
Wear limit: 0,08 mm
25.005-25.021 mm
Camshaft
Replace if there are traces of wear
Camshaft axial clearance: 0,20-0,90 mm
Wear limit: 1.5 mm
69.91-69.94 mm
Backlash:
Crankshaft wheel and camshaft wheel:
0,128 mm-0,222 mm
Camshaft bearing
70,000-70,030 mm diameter
70,070-70,090 mm for bearing 7
(last bearing on gear case side)
14
