5
6
7
Removing and installing camshaft,
exchanging camshaft bearing
100
Exchanging the camshaft bearings
Remove the cylinder heads, the pistons with the
connecting rods and the crankshaft, before remov-
ing camshaft bearings

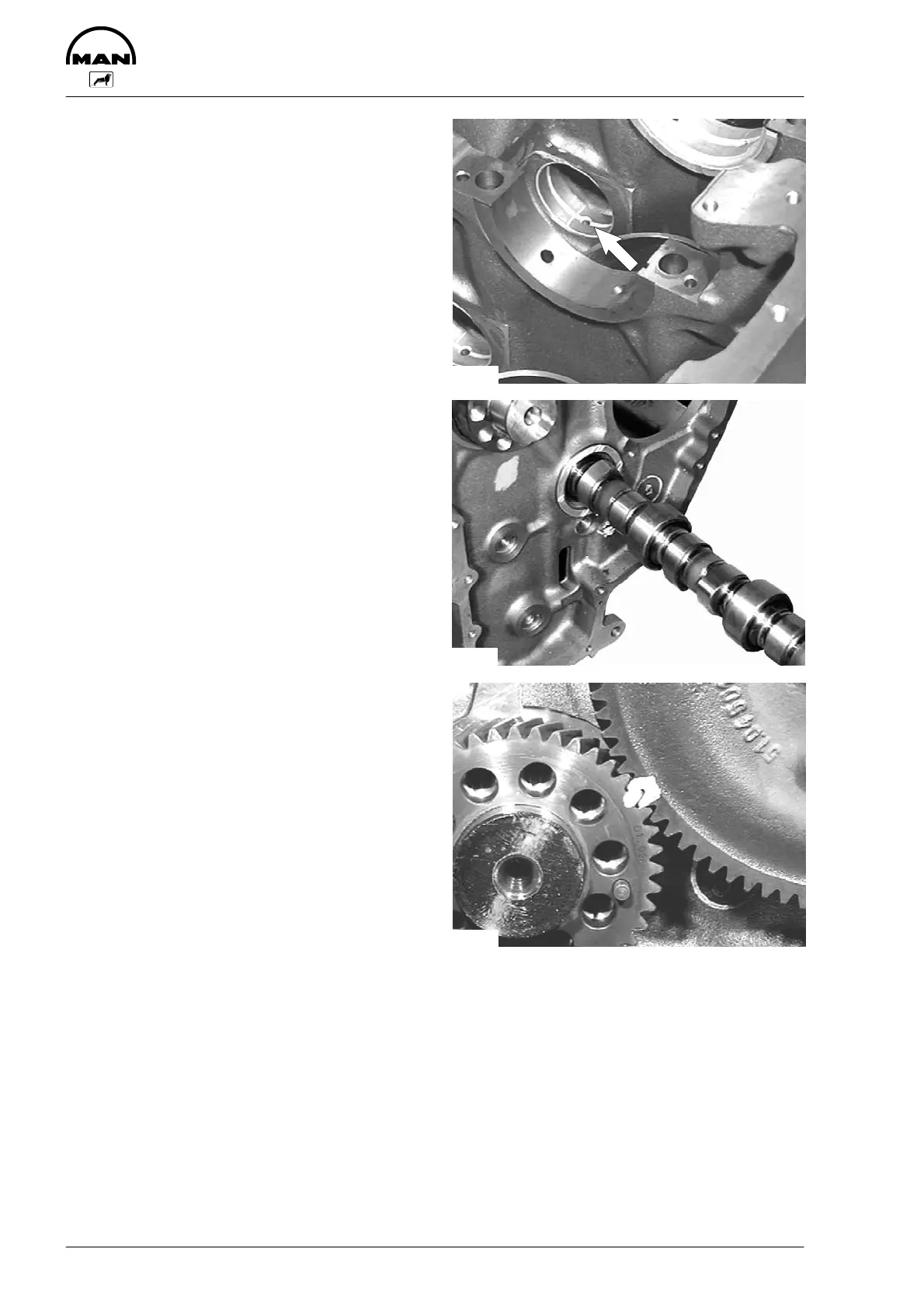

Fig. 5
Remove camshaft bearing bushes with suitable
mandrel and drive in new bushes. Ensure that the
oil supply bores are in correct position.
Installing the camshaft
Fig. 6
Apply oil to camshaft and insert it carefully.
Fig. 7
Ensure that the marks on the crankshaft and the
camshaft gear match.
3543
3544
3545
